Product Description
Poly Bag Inserter for Placing Liners in Cases

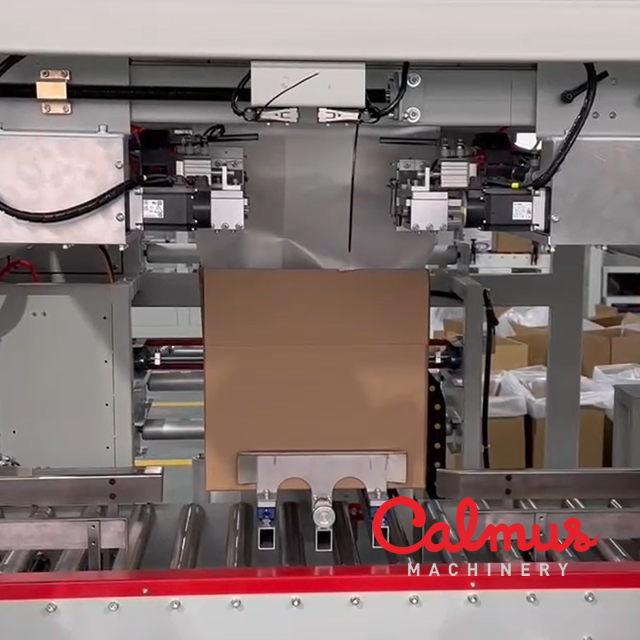

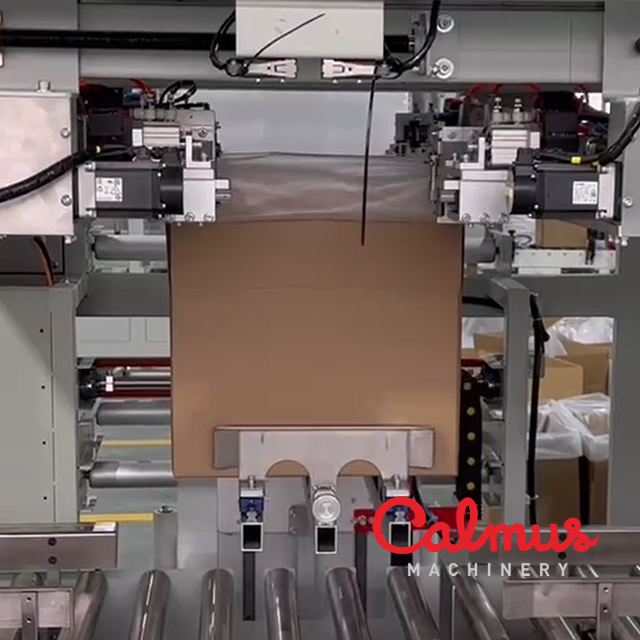

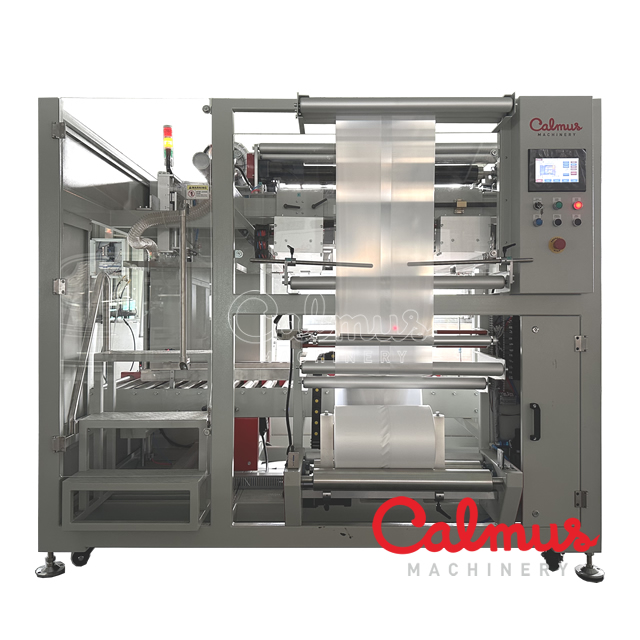

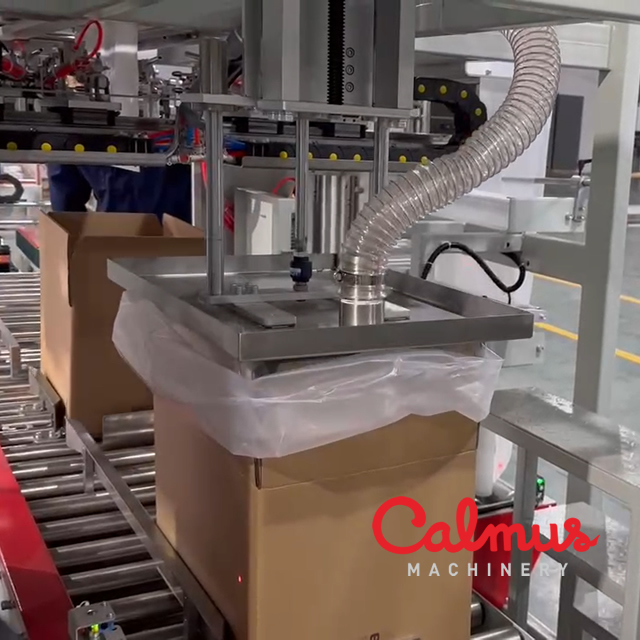

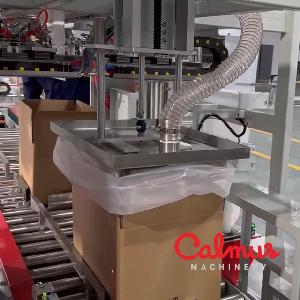

This fully-automatic poly bag inserter, manufactured in China, is designed to efficiently place poly bags into cases or boxes. The machine dispenses film from roll stock, cuts and seals it into a bag, opens and cuffs the bag over the case flaps, and blows air to expand the bag for a snug fit against the case internal walls. This bag inserter machine reduces labor and material costs while being simple to operate and easy to adjust.
The poly bag inserter is an ideal solution for bulk packaging of items such as bread rolls, edible oils and fats, fruits and vegetables, granules and nuts, meat and fish, caps and closures, golf balls, and more. When combined with a carton erector, this poly bag inserter becomes part of a fully automatic lined carton-forming system, increasing efficiency and reducing labor requirements.
Specifications:
Inserting capacity: 6-7 cases/min
Film width: 460–840 mm
Applicable case dimensions: L250-550 mm * W200-400 mm * H150-400 mm (customizable)
Power supply: single or 3 phase, 4.5 kW
Compressed air: 6-8 bar
Air consumption300 NL/min
Machine dimensions: L2,500*W1,600*H2,300mm (for reference only)
For higher productivity, we also offer a high-speed bag inserter capable of handling up to 12 cartons per minute.
Other Products
Company Profile
- Name: Calmus Machinery (Shenzhen) Co., Ltd.Verified
- Main Products: bag in box filling machine, bag in box filler, bib filling machine, bib filler, water bottling machine, bottle filling machine, water filtration system, bottle blow molding machine
- Business Type: Manufacture
- Total Employees: 50 ~ 100
- Established Year: 2008
- Total Annual Revenue: US$2.5 Million - US$5 Million
- Main Markets: North America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Western Europe,
- Address: 3/F, Building 6, Sangtai Industrial Park, Liuxiandong, Xili, Nanshan District, Shenzhen
-
Calmus Machinery, a division of Brentorma, is a leading equipment manufacturer in mainland China, who provides complete solutions for the drinking water, beverage and food industry. Our products include bag in box fillers, bag in box packaging lines, carton packaging machines, commercial water filtration systems, bottle filling machines and bottle blow molding machines, as well as additional equipment used in the water, beverage and food processing industry.
Calmus Machinery was teamed by professionals with many years of technical and field experience. From design, production, marketing to after-service, Calmus works under the principle of innovation and quality-first policy to enhance customers satisfaction continuously.
We have helped many foreign customers build their own plants or expand their business by supplying RO water purification systems, water bottling, bottle blow molding machines, bag-in-box fillers, packaging machines, and other supporting equipment. Continued support and trust from our customer over the years has allowed Calmus to grow and prosper In our effort to meet the needs, new challenges and demands of our customers, we have had to double our efforts to make sure that we remain at the cutting edge of technology.
