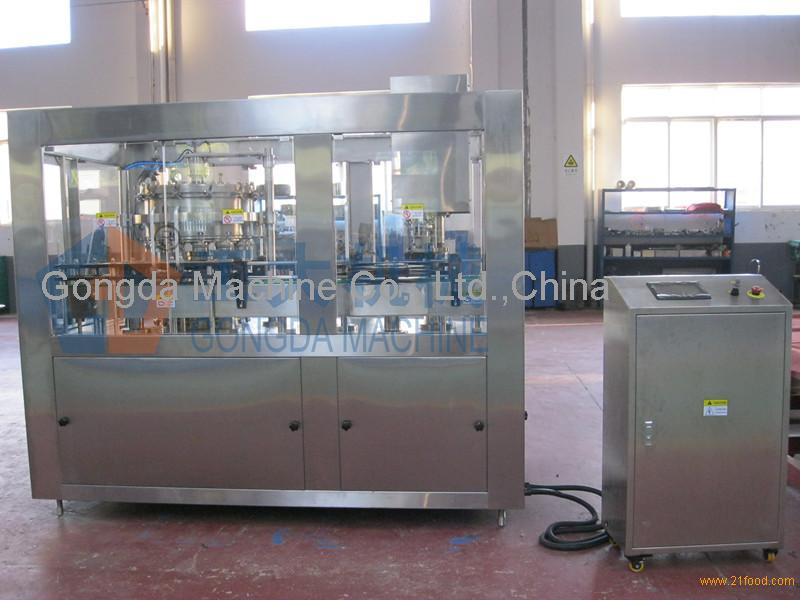

Pop-top filling machine,China GONGDA price supplier

Can Filling Machine applies to the two pieces of aluminum cans filling carbonated beverage....



1.It is used in the can filling and seaming for Beer and carbonated drink. It is the latestequipment made on the basis of advanced technology of beer and carbonated drink can filling and seaming both in home and abroad. The filling and seaming are designed in one body. The power of filling system are provided by the seaming system to assure the synchronization and harmony.

2.Adopt the advanced mechanism, electronic components and pneumatic controltechnology ,apply isobaric pressure filling theory, the filling speed is fast, the liquid level is stable with little loss. Seaming quality is good, the machine run smoothly, appearance is beautiful, operation and maintenance is convenient, the production speed apply frequency conversion, and long-distance control system can be collocated according to the request of client.

3.Main Technology Parameter:

 Model                 GZ-12/YG-1   GZ-18/YG-6   GZ-24/YG-6   GZ-32/YG-8

Productivity:

(350ml)(c/h)            1000-2000      2000-5000   5000-8000    8000-12000

Model: GZ-18/YG-6

Can filling machine
(1). Production Capacity: 3000 can / hour
(2). Diameter of pop-can: 40-80mm
(3). Speed of belt: 0.17 M/Second
(4). Power: 0.55Kw
(5). Air pressure: 0.2Mpa
(6). Pressure of clean water entrance: > 0.15 Mpa
(7). Overall demission: 1900 X 630 X870 mm
(8). Total weight of machine: 300 Kg

Can sealing machine
1. Overall size: 930*700*1850
2. Weight: 500kg
3. Motor power: 0.75kw 1390r/min
4. Production capacity: 3000BPH
5. Specification of can: Φ 50-67, H90-200, cans beyond this size can be designed specially
