Potato Chips Making Machine and Production Line ( CE / ISO - skype:cathyli66 ),China RT price supplier

  1. Technological Process

hoisting and feeding ----- washing and peeling----- selecting-----hoisting and feeding-----cutting into slices or sticks----- rinsing -----blanching and color protection----- removing water----- frying ---- de-oiling----- freezing (FROZEN STICKS ) or Seasoning ( POTATO SLICES)-----conveying -----packaging

1. Feeding potato on the production line --------------------     feeding equipment(Hoister)

2. Washing and peeling potatoes------------------------- -washing and peeling equipment

3. Cutting potatoes into slices--------------------------------------------------cutting equipment

4. Rinsing and boiling the potato slices------- ------------- rinsing and boiling equipment

                                                                                                          (Blanching machine)

5. Drying the water of potato slices--------------------drying water equipment(Dehydrator)

6. Frying potato slices (this step need frying machine) ------------------ frying equipment

7. Drying the oil of potato slices( this is French chips) ---------------drying oil equipment

                                                                                                          (De-oiling machine )

8. Mixing the seasoning on the French chips------------------------ seasoning equipment

                                                                                                               (Flavor machine )

9. Freezing

10. Packing

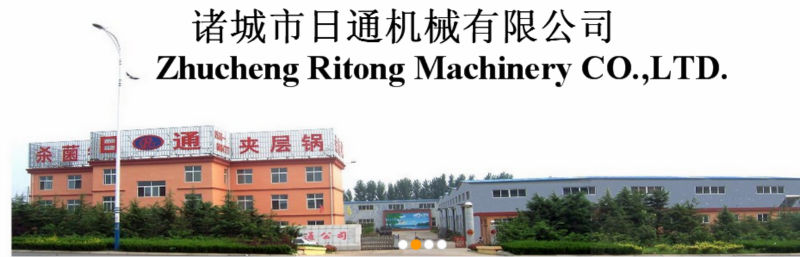

2.   Company

Potato Chips Making Machine and Production Line ( CE / ISO - skype:cathyli66 )" ori-width="800" ori-height="257" />

Ritong Machinery Co.,LTD from china is the OEM ( Original Equipment Mnufacture ) of the products you need for more than 12 years with best products qulity and best sevices . And we have stock in our factory , welcome to order  .  We are very pleasure to service for you !  Zhucheng City Ritong Machinery Co., Ltd. with certification number of TS2237125-2014 and has attained ISO9000:2000 quality management s ystem and European CE certifications. We have independent import and export rights and are mainly engaged in food sterilizing equipments and braising and cooking equipments. Our company is the leading supplier in food processing industry in domestic and overseas markets .

  3. Brief introduction :

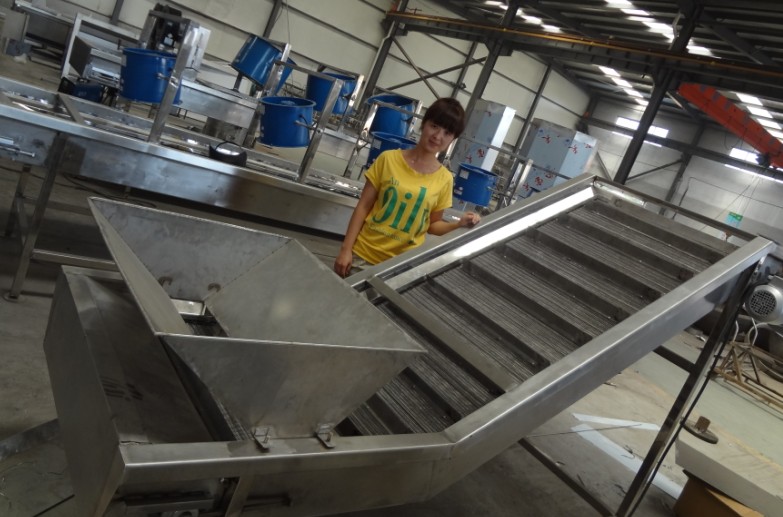

I.  Feeding equipment (Hoister)

Functions : automatic promotion material to the next working procedure, make material uniform distribution, material winding speed and how much adjustable, reduce labor intensity.

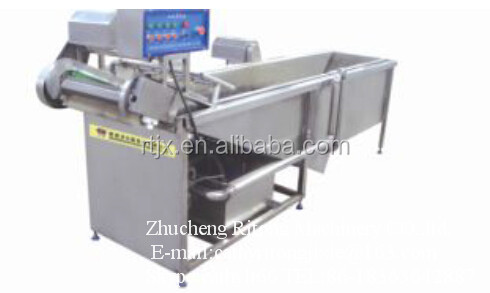

Ⅱ. Washing and peeling equipment

  Functions : Using brush cleaning peeling machine, but also for cleaning, desquamate work. It is high efficiency and low loss. using brush cleaning peeling machine, but also for cleaning, desquamate work.

Ⅲ. Cutting equipment

  Functions : could slice the potatos to both slices and bar shape, besides the thickness could be adjustes according to your preference.

IV.  Rinsing equipment (Blanching machine)

V. Drying water equipment (Dehydrator)

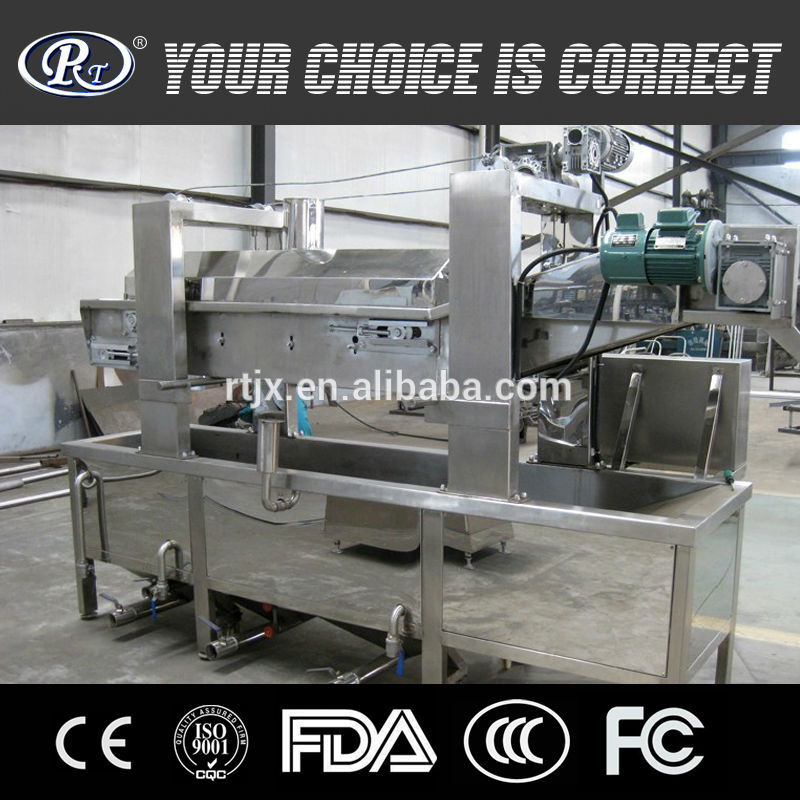

VI .RTLD-8000 Type deep frying full automatic production line

  A. Technical parameters

1. Products: potato chips output: 500kg/hour (output capacity)

2. Fried temperature: 160-200 degrees adjustable Fried time: 1.5-2.0 minutes

3. Physical size: L8000 * W1200 * H2200mm

4. Buner: BAIDE( Italy)

5. Mesh belt support thickness 4mm, tank plate thickness 3mm, shell thickness of 1.2mm

6. Equipped with a set of electric upgrade system, power 1.1kw.

VII. Drying oil equipment (De-oiling machine )

Fried after delivery de-oiling process, needs the conveyor belt is automatic transmission, equipment installation fan 3 tables, the axial flow fan wind. Size: L3000 * W1200, height and other equipment matching, motor drive power for each table 2.95kw.

VIII . Flavoring Machine  :

                     Functions : Made of stainless steel, potato chips (a) in the drum in turn evenly, the stir in or spray stir in seasoning. Easy seasoning and not easy broken.  adopting spray method, making seasoning even and potato chips not easy to break.

IX. Conveyor line: equipped with according to the customer’s needs, the longest do not exceed 10 meters.

Equipment schematic diagram

Equipment physical and pictures have distinction, press kind prevail

4.Production

a.) Design: All the machines are elaborately designed by our mechanical engineers who are rich of experience in this field. We accept special design according to customer’s request.

b.) Processing & Assembling: Parts processing, assembly, testing are based on standard test.

c.) Trial Run: Each machine has to be tested before its deliver.

5.   Delivery

The machines is possible to pack in wooden case or nude pack after wraping by plastic film.

6.   Service & Installation

a.) Consultation service before, during, and after sales;

b.) Project planning and design services;

c.) Debugging of equipment until everything is functional;

d.) Management of equipments' long distance shipping from seller's factory to named place by buyer;

e.) Training of equipment maintenance and operating personally;

d.) New production techniques and formulas;

e.) Provide 1 year complete warranty and life-time maintenance service.

7. Certificates

8. FAQ:

What Methods of Payment Are Acceptable?

Telegraphic Transfer (T/T): we accept 30% T/T deposit before production and 70% T/T Balance before shipment. 100% payment for sample orders.

How About the Delivery Time?

Some of the products are in stock at our warehouse, generally we need 3~5 days to change the plugs before the delivery. Regarding to the non-stock products, the lead time ~20 days depends on your requirement on the product.
