Precision Herbal Grinder for Cinnamon with Cooling System

FOB Price:Price can be negotiated

Production Capacity:100 Set/Sets per Month

Payment Terms: US $799 - 4,199 / Set

Update Time:2021-04-16

Contact Supplier

Product Description

1.Herbal Grinder for Cinnamon with Cooling System
2.Stable Operation
3.High Efficiency / Energy Saving
4.GMP Standard

Brief Introduction

Precision Herbal Grinder for Cinnamon with Cooling System

Operating Principle

The principle of the stainless steel high-speed universal pulverizer mechanical transmission, so that the relative motion between activities gear and fixed gear, the material from the hopper through feeder automatically added to the grinding chamber, activity gear and fixed gear shear the friction and material impact to achieve the combined effects of crushing, the crushed powder through the screen controlled by the powder outlet to fall into the powder collector bags.

The Main Features

· Compact shape, parts reqair and replacement easy

· Mechanical stability, low energy consumption, crushed, crush phenomenon, not raise he crushed temperature

· Lower energy consumption,compared with the traditional omnipotent pulverize, it could save 30% power

· Equipment structure compact, floor space small

· In crushing box no stitch line, no dead space, easy to unpick and wash, disinfect, change variety expediently, meet with the GMP standard

· The scope of shatter granularity, the grain diameter of end product is 20-200 item scope adjusted arbitrarily; machinery roundly, the output is 15 ~ 500kg/h machinery optionally

· Negative pressure products, no dust pollute, good environment

Technology and Parameters

Type	FS160	FS230	FS320	FS370	FS450	FS600
Rotor Work Diameter·mm	160	230	320	370	450	600
Speed of Mainshaft·r/min	9000	6260	4500	3900	3200	2800
Rotation Direction of Mainshaft	clockwise	clockwise	clockwise	clockwise	clockwise	clockwise
Motor·kw	1.5~2.2	4	7.5	11	11	18.5~22
Contour Dismension·mm	1123×500×962	1236×500×1067	1324×500×1118	1542×743×1176	1542×743×1226	1500×957×1275
Weight·kg	200	300	350	400	500	700
Shatter Fineness·item	10~120	10-120	10-120	10-120	10~120	10~120
Function·kg/h	10~120	30~200	50~300	70~300	100~300	500~1500
Ultimate Size of Enter Material·mm	10	10	10	10	10	10
Working Temperature·°C	<55°	<55	<55	<55	<55	<55
Working Noise·dB	<90dB	<90	<90	<90	<90	<90
Choose Bearing	6205	6207	6207	6309	6309	6312

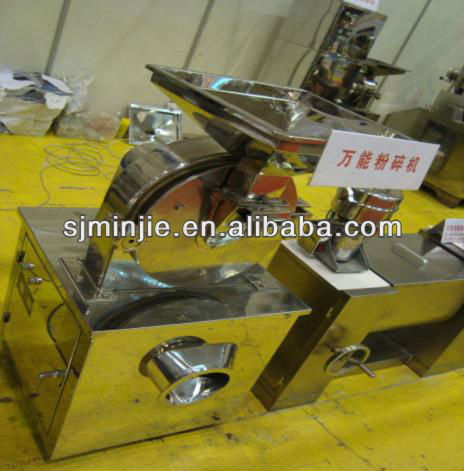

Product Appearance

Applications

Widely used in this filed:Chemical industry, mining, abrasive, refractory material, battery materials, metallurgy, building materials, pharmacy, ceramics, food, the agricultural chemicals, feed, new materials,environmental protection and the superfine shatter,scatter and particle reshaping of the all kinds of dry power material.

Our Advantages

1. Strong Technical Support

More than 80 professional and technical personnels, over 10 senior engineers

Top universities and institutes cooperator

Our company is attached to Shandong Agricultural Machinery Research Institute

2. Top Quality Assurance

Strict control and selection of materials

Advanced equipments and first-class production technology

Sound management system and solid economic strength

3. Advanced Testing Measures

Exclusive R&D and testing center

Exclusive professional Platform

Strict quality Control System, including in-process inspection in every process and final inspection

4. Impeccable after-sale system, sincere and all-aspect service

Our market concept is M oving customers by heart!

We specialize in technology research and development, we can offer the best possible machining solution for all your requires . We are confident that your requirements will be perfectly satisfied.

We welcome your inquires. Please feel free to contact us!

Condition:	New	Type:	Grinder	Product Type:	Detergent Powder
Place of Origin:	Shandong China (Mainland)	Brand Name:	Double Win	Model Number:	SJPcn-0346
Classification:	Herbal grinder
