1 SUS304 stainless steel
2 GMP and OEM.
3 Reasonable price.
4 compact structure and easy to clean
1,Material:
The machine is made of 201 or 304 stainless steel or cast iron which adopts to the international standards of food hygiene.
2,Working principle
Using the high speed rotation of the tooth claw to smash material
3,Main Advantage
3.1 C ompact structure, small occupied area .
3.2 E asy to disinfect and convenient to change variety.Our ma c hine is consistent with the GMP standard.
3.3 Smoothy operation,no nois e, s mall vibrat ion and good environmental quality
3.4 Smoothy surface,easy to clean.
3.5 Simple to use , r eplace scre en can control the size of particle size .
We can design and produce according to customers' requirments.
4,Main Use
This machine can be used in many fields :such as Coffee grinding,pharmaceutical,chemical,mining, abrasive,refractory,nonmetallic minerals, metalergy, building materials,medicine,food,pesticides, feed and other trades.
Grinder for sale" data-width="579" data-height="497" ori-width="579" ori-height="497" />
5,Technical parameters:

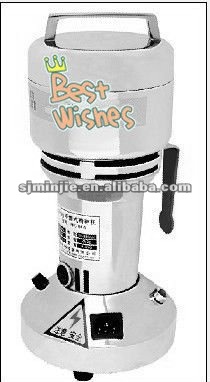

i Mini/Small grinder :
Model | Maximum capacity | Voltage | Power | Motor speed | Weight | Size(mm) |
SJ04B | 200g | 220V | 1220W | 28000r/min | 6.5kg | 180*170*330 |
SJ06B | 300g | 220V | 1300W | 25000r/min | 8.5kg | 190*200*330 |
SJ08B | 400g | 220V | 1500W | 25000r/min | 9.5kg | 200*200*340 |
SJ10B | 500g | 220V | 1800W | 25000r/min | 10.5kg | 220*220*390 |
SJ16B | 800g | 220V | 1800W | 25000r/min | 15kg | 250*250*430 |
SJ20B | 1000g | 220V | 1800W | 25000r/min | 16.5kg | 260*180*460 |

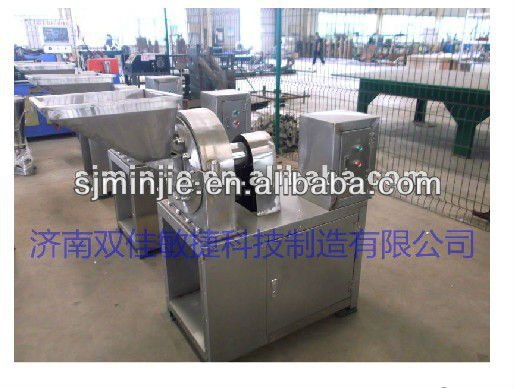

ii We also have some big stainless steel universal grinder:
Model |
FSW160 |
FSW230 |
FSW320 |
FSW370 |
FSW450 |
L×W×H(mm) |
1123×500×962 |
1236×500× 1067 |
1324×500× 1118 |
1542×743×1176 |
1542×743× 1226 |
Spindle speed(r/m) |
9000 |
6260 |
4500 |
3900 |
3200 |
Rotor diameter(mm) |
160 |
230 |
320 |
370 |
450 |
Power(KW) |
3~4 |
4~5.5 |
5.5~7.5 |
7.5~11 |
11~13 |
Weight(kg) |
75 |
300 |
400 |
500 |
120-200 |
Out put (kg/h) |
10-120 |
30-200 |
50-300 |
70-300 |
100~300 |
Feeding granularity(mm) |
10 |
10 |
10 |
10 |
10 |
Particle size(mesh) |
10-120 |
10-120 |
10-120 |
10-120 |
10~120 |
Bearing |
6205 |
6207 |
6207 |
6309 |
6309 |
iii Cast iron grinder:
Model | Power | Internal structure | Spindle speed | weight | Max output | |
WF-160 | 1.1-2.2KW | 3 flat teeth | 6 crenations | 7800r/min | 42kg | 180kg |
WF-200 | 1.5-2.2KW | 3 T type long flat teeth | 3 T type short flat teeth | 6600r/min | 48kg | 560kg |
WF-280 | 2.2-3KW | 1 fixed blade and two rotating blades | 12hammers | 4300r/min | 78kg | 560kg |
Our Advantages :
i State owned company
Our company is a wholly owned subsidiary by Shandong Agricultural Machinery Science Institute and is a state owned company.We have mighty and professional support of our government and had held many world-class agricultural machinery exhibitions.
Relying on the highest agricultural machinery development Platform and resource advantage,our compa n y has a strong research ability and a high production capacity.
The outlook of our institute
ii Quality Assurence
Product according to ISO9001:2008 standard.
With professional and advanced test method and lab equipments.
Strict incoming,processing and routine test.
iii World-class advantage equipments:
Our main equipments:
Customers visiting our company
YOU ARE WELCOME TO VISITE OUR COMPANY.
Place of Origin: |
Shandong China (Mainland)
|
Brand Name: |
SJ
|
Model Number: |
FSW-320
|
Type: |
Grain Processing Equipment
|
key words: |
chili grinder
|
