Pullout Test between Hypodermic Needle and Needle Cap, Sliding Resistance Test of Pistons,China SYSTESTER price supplier

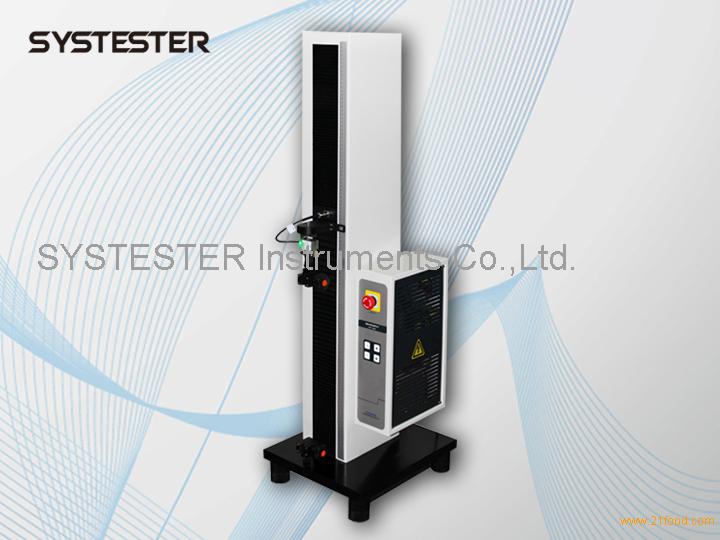

 Type: TSL(automatic tensile tester)

Brand: SYSTESTER

Application

ASTM standard Plastic films auto tensile tester, peeling force and strength tester  apply to plastic films, sheets, rubber, laminated films, extrusion films, foils, paper, medical patches, release paper, non-woven fabrics etc testing of various items, such as tensile, break force, elastic modulus, elongation, seal strength, T-style/90/180 peeling strength, widely used in food & pharmaceutical industries, quality inspection departments as well as research and development institutions.

Main feature

1. Controlled by computer.

2. High performance servo drive.

3. Bi-direction test.

 4. Highly accurate load cell.

5. Selectable load range: 500N, 1000N, 2000N, 3000N, 5000N.

7. Software interface is friendly, easy to operate.

8. ISO, ASTM standards test available, Non-standard test available.

9. Various analysis functions.

10. Overload, limit protection.

11. Test speed can be preset freely through software.

Technical indexes

Load cell range:customization

Accuracy:1

Displacement resolution:0.001mm

Test speed:0.01~1000mm/min

Travel distance:1000mm

Sample width:38mm customization

Sample thickness:8mm customization

Dimension:500W  × 740L × 1680H

Power supply:AC 110V 60Hz

Net wight:450KG

Standards

ASTM D882, ASTM D828, ASTM E4, ASTM D1938, ASTM D3330, ASTM F88, ASTM F904, ISO 37, GB1040, GB8808, GB4805, GB7753, GB 7754, GB 453, GB/T17200, GB/T16578,  GB/T 7122, GB/T 2790, GB/T 2791, GB/T 2792, JIS P8113, QB/T2358, QB/T 1130

SYSTESTER is professional provider of integrated package testing solutions and instruments of food and pharmaceutical industries, dedicates to cutting-edge technology research and development.  If you any unclear questions, pls do not hesitate contact us.(email:lh@systester.cn)
