Pure Water Bottling Machine/Mineral Water Production Line,China Zhonguan price supplier

Pure Water Bottling Machine/Mineral Water Production Line

FOB Price:Price can be negotiated

Production Capacity:15sets

Payment Terms: FOB shanghai

Update Time:2023-02-10

Contact Supplier

Product Description

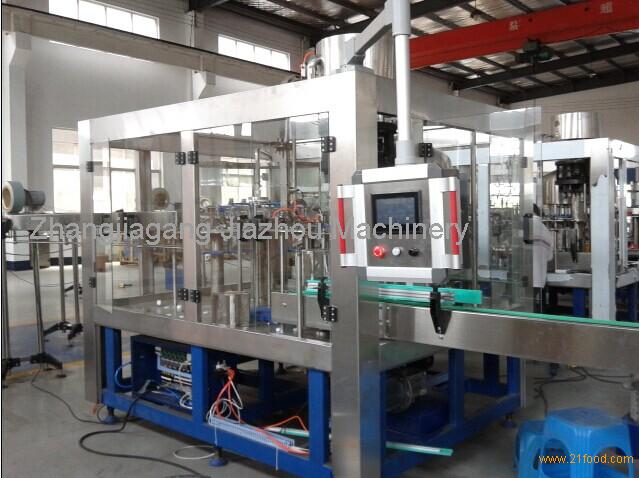

Pure Water Filling Machine/Mineral Water Production Line

CGF Series Water Filling Machine

Introduction:

This filling machine contains washing, filling and capping with complete automation. It is suitable for filling water, such as mineral water, pure water into polyester bottles and PET bottles. The bottleneck blocking makes the process of changing bottles easily by only adjusting the height of the conveyor chain. The filling process adopts micro-pressure technology, which makes filling process faster and more reliable

Automatic Pure Water Filling Machine(Water Production Line) Main Parameters:

Model	CGF12126	CGF18186	CGF24248	CGF323212
Heads of washing,filling, sealing	12-12-6	18-18-6	24-24-8	32-32-12
Production capacity	3000-4000BPH	5000-7000	8000-10000	10000-12000
Suitable bottle diameter	φ=50-100mm, H=170mm, 330-2500ml	φ=50-100mm, H=170mm, 330-2500ml	φ=50-100mm, H=170mm, 330-2500ml	φ=50-100mm, H=170mm, 330-2500ml
Spraying pressure	0.2-0.25Mpa	0.2-0.25Mpa	0.2-0.25Mpa ³	0.2-0.25Mpa
Motor power	2.2kw	2.5kw	3kw	5.5kw
Stainless steel	SS304	SS304	SS304	SS304
Electric voltage	380V50Hz	380V50Hz	380V50Hz	380V50Hz
PLC	Mitsubishi	Mitsubishi	Mitsubishi	Mitsubishi
Frequency converters	Mitsubishi	Mitsubishi	Mitsubishi	Mitsubishi
Touch screen	Mitsubishi	Mitsubishi	Mitsubishi	Mitsubishi
Circuit contactor	Siemens	Siemens	Siemens	Siemens
overall dimension	240016002500	250018002500	310023002800	380028002900
Weight	2500kg	3500kg	4500kg	6500kg

Other Products

Automatic carbonated Soft Drink filling line

High speed Juice production line

600BPH 5gallon drinking water filling line

cola rinser-filler-capper 3 in 1 filling machine

Company Profile

Name: Zhangjiagang Jiazhou Machinery

Main Products: mineral water filling line,juice/tea drink filling line,Carbonated drink filling line,beverage machinery,beverage production line,5BGF beer filling machine

Business Type: Manufacture

Total Employees: 20 ~ 50

Established Year: 2006

Total Annual Revenue: US$1 Million - US$2.5 Million

Main Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe,

Address: yujia bridge,Jinfeng Town ,Zhangjiang,China

Zhangjiagang Zhonguan Machinery Co., Ltd. is engaged in the professional development of food and beverage machinery manufacturer. Companies adhere to market-oriented, science and technology as the leading quality of the main line services for the protection, established a perfect quality assurance system. The company has import and agent all kinds of goods and technology import and export business, and contract the Tim Key works.
　　Our main products: all kinds of series of carbonated drinks, mineral water, pure water, fruit juice, tea, soy milk, wine and other food liquids bottled, canned, bottled, canned, etc. cup production line equipment and drinking water, mineral water water, pure water and other kinds of water treatment equipment. Which, CGF series, RCGF series, DCGF Series Trinity bottling lines and QGF bottled beverage production line, QHS series drink mixer, both digestion and absorption of Germany, Italy, Japan, made of advanced technology, product maturity, quality, not only selling domestic 29 provinces, municipalities and autonomous regions, and exported to Russia, Kyrgyzstan, Ecuador, Malaysia, Indonesia, Philippines, Vietnam, Libya, Kenya and other countries and regions, the majority of users. Meanwhile, the company can provide customers with technology consulting, plant graphic design, installation and commissioning, technical training.
　　
