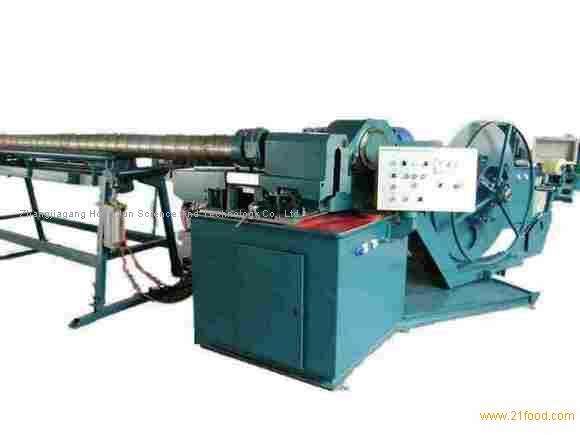

Rectangular ducting machine/spiral pipe forming machine
|
Diameter range
|
80 - 1600mm
|
|
Thickness of strip
|
0.4 -1.3mm Glvanized steel
|
|
0.8mm
Sinless steel
|
|
|
0.4-1.2mm Auminum
|
|
|
|
|
|
Strip Width
|
standard 137mm up to 1mm
thickness, 140mm above. Other widths on request.
|
|
Lock seam
|
Outside tube, on the inside on request.
|
|
Production speed
|
Max. 60 meters/min. depending on material
|
|
Cutting system
|
The pqtented flying slitter
|
|
Net weight
|
2900kg
|
|
Gross weight
|
3200kg
|
|
Machine dimension
|
3000mm
*1950mm*1700mm,
|
|
Package dimension
|
3050mm
*2000mm*1800mm
|
|
Options
|
Automatic length control system, controlled corrugation unit.METU flange slitter Saw blade cutter
|
