RED WINE Bottle Filling Machine
2000-6000BPH
Full automatic
CE certificate

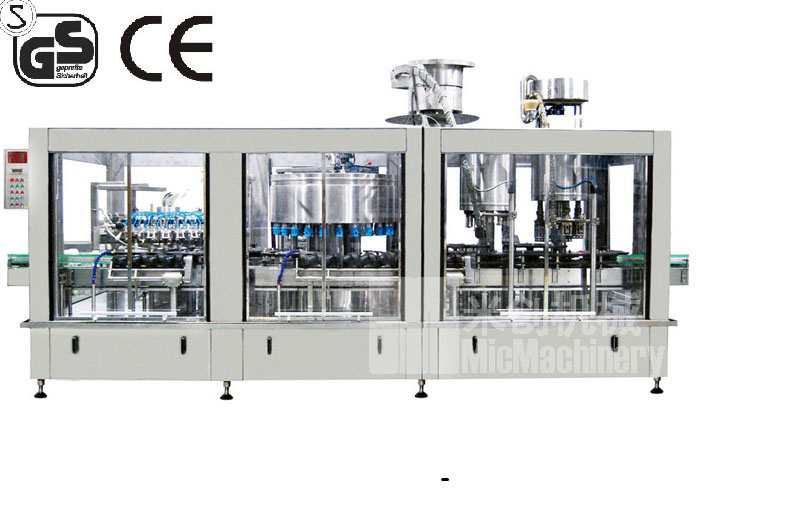

MIC- Glass bottle wine filling machine four in one
W ine filling machine four-in-one p erformance:
1. High efficiency and low cost.
2. Fully automatic control and high hygienic design.
3. Excellent and stable product quality.
4. Saving work space and manpower for users.
5. Easy maintenance and high safety standard.
6. Both plastic anti-counterfeiting cap and aluminum cap can be used in this machine.
Main features:
The washing part of the machine adopts most scientific double-way insertion washing method. It washes bottles with circulated water and clean water. Sterile compressed air (or alcohol) is then applied to dry the bottles to make them thoroughly clean.
As the latest model of filling machine with high speed and precision. The liquid is not possible to overflow. Filling volume cover from 100ml to 750ml and it can be steplessly adjusted by a motor. Filling volume is displayed digitally.
The machine caps bottles automatically with an automatic cap arranging device. Caps are put steadily with low damage rate.
As the advanced automatic sealing part of the machine is applied in the machine, good sealing quality is achieved by its high spinning speed and even force. Its sealing wheels are made from special material to ensure a lone service life.
Model |
Capability ( b/h ) |
Washing Part |
Filling Part |
Capping part |
Dimensions (mm) |
||||
Water Speed |
Air Speed |
Head No. |
Type |
Head No. |
Type |
Head No. |
|||
(m³/h) |
(m³/min ) |
||||||||
MIC 30-24-8-8 |
6000 |
2.1 |
1.1 |
30 |
cup-type filling |
24 |
cap sealing |
8 |
5300*2180*2700 |
MIC 40-30-8-8 |
8000 |
2.9 |
1.3 |
40 |
cup-type filling |
30 |
cap sealing |
8 |
6000*2750*2700 |
We will offer our technician for oversea wine filling machine installation and training service.
we can also provide our Sales as translator to your site help the installation and Training. Only to provide the local transportation, accommodation, air tickets (round trip) for Sales will be fine.
Thank you for choosing MIC Machinery Company.
For Wine filling machine question:
First of all, before we operate wine filling machine, to clearly understand the instructions clearly wine filling machine , first read through the instructions again, adjust and use the familiar wine filling machine , the operating time must be in strict accordance with the instructions to wine filling machine instructions , pay attention to details of the problem , certainly the details determine success or failure .
Secondly, in accordance with the instructions on the machine for regular repair and maintenance of the wine filling machine fuselage Oil it , so wine filling machine body as far as possible to protect the reservoir , so that the air can be isolated to avoid wine filling machine rusty , well protected wine filling machine body, and this is a way to extend the life of the 4 in1 filling machine .
Once again, we have to pay attention to hot stand -sealing cloth for cleaning, not retained foreign body in the above , to ensure clean wine filling machine try to avoid the amount of material for a long time into the mouth of the left cause corrosion .
Fourth, we should always check the machine to see contacts at various parts of the machine is good, important to ensure safe use of electricity, no electricity properly to prevent harm.
Fifth, if found faulty , we have to turn off the power , when necessary, by pressing the emergency stop button , and then deflated Lift cover, and then close the voltage , check the reason , and troubleshooting.

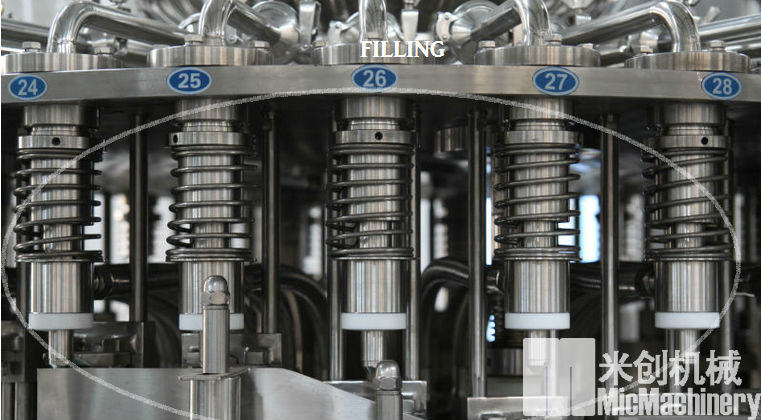

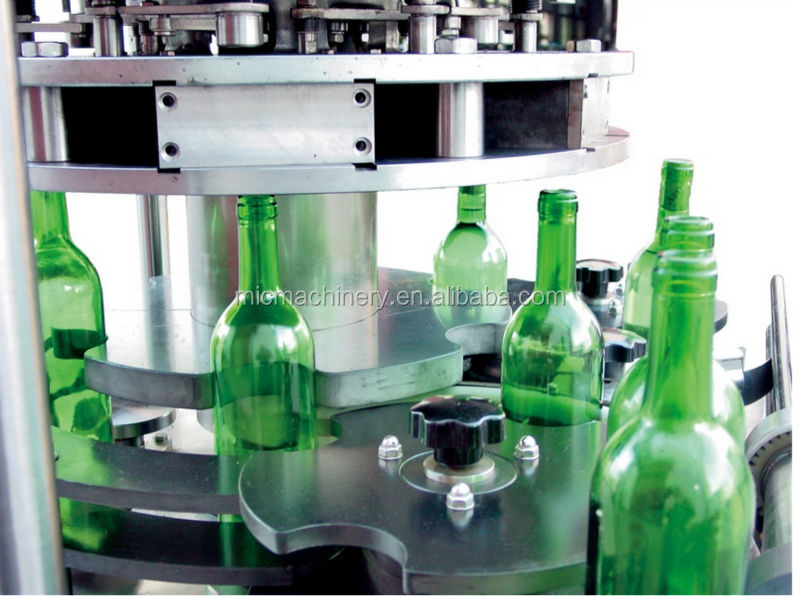

Detail picture of wine filling machine:

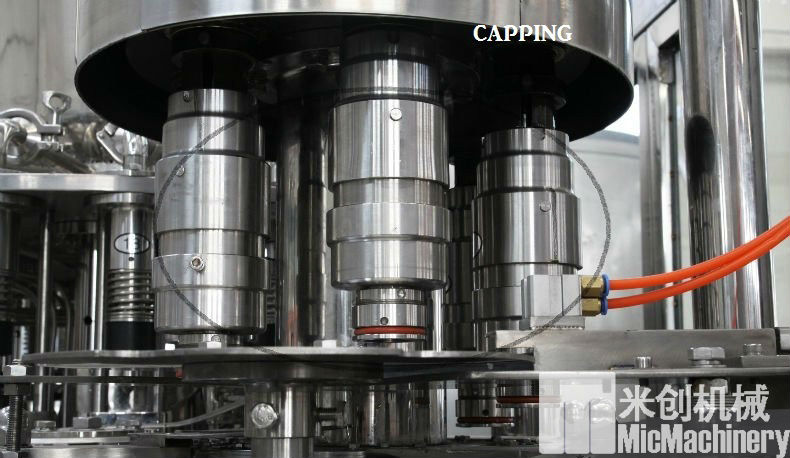

Sealling parts of wine filling machine:
Type: |
Filling Machine
|
Condition: |
New
|
Application: |
Beverage
|
Packaging Type: |
Bottles
|
Packaging Material: |
Glass
|
Automatic Grade: |
Automatic
|
Driven Type: |
Electric
|
Voltage: |
380V/50Hz
|
Power: |
6.4kw
|
Brand Name: |
MIC
|
Model Number: |
MIC 30-24-8-8
|
Dimension(L*W*H): |
5300*2180*2700
|
Weight: |
550kg
|
Certification: |
CE
|
After-sales Service Provided: |
Engineers available to service machinery overseas
|
Model: |
MIC 30-24-8-8 4 in1 automatic glass bottle filling wine machine
|
Capability: |
6000bph
|
Water Speed: |
2.1(m³/h)
|
Air Speed: |
1.1(m³/min)
|
filling heads: |
24
|
