Red Wine Paper Bag Making Machine

FOB Price:Price can be negotiated

Production Capacity:35 Set/Sets per Month

Payment Terms: US $32,500 - 34,000 / Set

Update Time:2014-09-19

Contact Supplier

Product Description

RED WINE Paper Bag Making Machine
1. Easy operation.
2.Low power consumption
3. High Speed,Fully Automatic

Red Wine Paper Bag Making Machine

1. Features:
Paper Bag Making Machine can make paper bags in one process from roll paper, edge folding, tube forming, cutting, gluing, bottom folding, bottom gluing and finishing bag.
It is an ideal machine for producing Sharp Bottom food bags like Bread bags, KFC bags and McDonald's bags etc.

2. Advantages:

1)Suited for 40-80gsm paper.
2) Controls bag length through the human-machine interface.
3) PLC system for calculating parameters.
4) Equipped with an accurate photocell system.

5) Color mark error automatic alarming and stopping system

3. Technical Parameters:

Paper Weight	40-80g/m2
Bag Length	160-420mm
Bag Width	70-260mm
The width of paper roll	260-720mm
Speed	100-400pcs/min
Total Power	10kw
Power Voltage	380v,50/60 HZ, 3 phases
Total Weight	2500kg
Machine Dimension(LWH)	400 0 21001900mm

4. Configuration Brand:

Name and Specification	Quantity	Brand, Country
Servo Motor	two sets	YASKAWA, Janpan
PLC	1pc	Taiwan
Touch Screen	1pc	Taiwan
Photo-cell	100-400pcs/min	Sick, Germany
Web Edge Control(EPC)	1pc	China
Frequency Converter(Inverter)	1pc	China

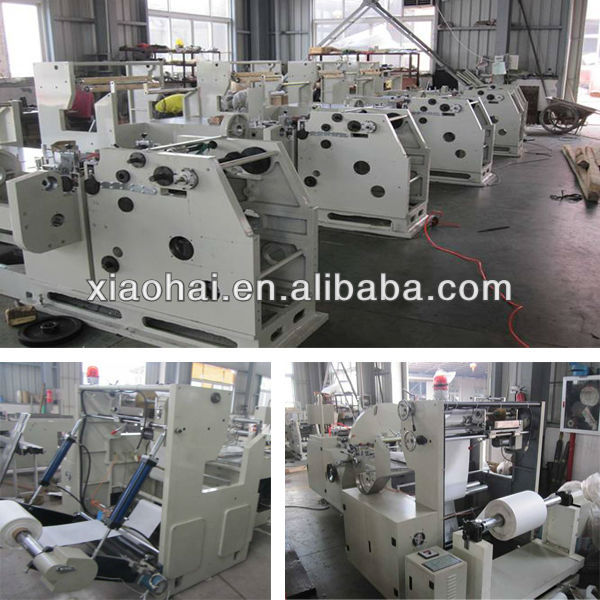

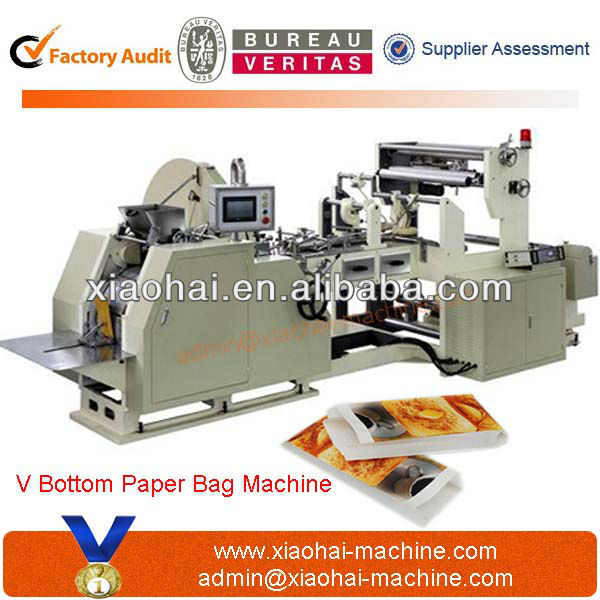

5.Machine Pictures:

6. Sample Pictures:

6. Machine Delivery Pictures:

We are specializing in making paper bag making production line, including paper bag making machine, flexo printing machine, rope making machine and handling making machine etc. We have both paper bag making machine with roll feeder and sheet feeder.

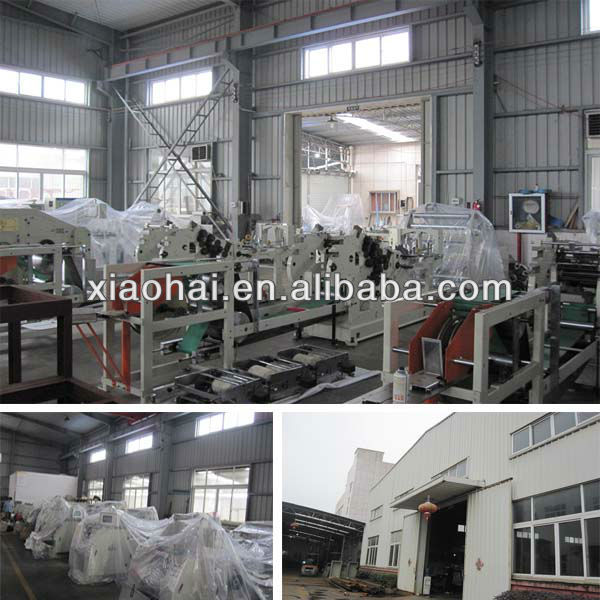

Company Show

Condition:	New	Machine Type:	Bag Forming Machine	Bag Type:	Shopping Bag
Material:	Paper	Computerized:	Yes	Place of Origin:	Zhejiang China (Mainland)
Brand Name:	XIAOHAI	Model Number:	CY-400	Voltage:	380v,50/60HZ,3phases
Power(W):	10kw	Dimension(LWH):	4000x2100x1900mm	Weight:	2500kg
Certification:	ISO9001	Warranty:	one year	After-sales Service Provided:	Engineers available to service machinery overseas
Reel Inner Diameter:	76mm	Paper Thickness:	40---80gsm	Max Bag Size:	420260mm(LengthWidth)
Min Bag Size:	16070mm(LengthWidth)	Suitable Glue:	Water Based Glue	Bag Width Control:	Mould(Plate)
Side Gusset Depth:	0---80mm	Web Edge Control System:	Automatic	Web Tension Control System:	Automatic
HS Code:	844120
