Manufacturing water treatment plant i. E. water containing sufficient / required quantity of minerals which is required to human bodies.

World Latest Technologies of Process for Mineral Water (Bottled Water) Production from Different Source of water Like Bore Hole, Deep Well, River Water, Sea Water etc.

Water is passed through following different stages for process of filtration & separation in packaged drinking water plant process.

Technical Details :

Pressure Sand Filter :

To remove suspended matter from the water. By means of Multi Size Graded sand filled in the Vessel of stainless steel material. Which is natural process of filtration adopted by the nature.

activated carbon filter :

To remove color, odor and smell from the water. By means of using Activated Natural Carbon. By absorbing contaminated particles of Oil & Grease from the raw water. To control the BOD & COD in the raw water

Antiscalant Dosing :

To Prevent the desalting element from deposition.

Micron Filtration :

To remove the micron particles from the raw water. By means of using disposable candles having Perfect micron size of porosity for filtration.

Osmotic Pressure System [H P Pump] :

To create the osmotic pressure in raw water. By using pump.

Desalination by R O Membrane Element :

To desalt the i.e. to reduce the dissolve solids, by using Semi permeable Membrane filter elements, Where ion filtration process is carried out by applying pressure in the raw water, so finally we will get low salt water with low total dissolve solids and High purity. Here will have to drain the water at one side to Wash the Membrane filter element continuously because of filtration process there is nothing to be polluted in the system.

Storage of R.O. treated water :

To remove back pressure in R. O. Membrane elements. It is only storage of the treated Water

Fine Polishing Filtration :

To filter the water from 1 micron to 0.2 micron to achieve the crystal dear filtered mineral water.

U V system :

To kill the water bacteria from fine water.

Ozonization

Feeding of ozone gas for removal from treated water. Ozone gas is not storable So that by using ozone gas generator we are producing ozone gas i.e. 03, & is passed

Technical Details :

through the water, as ozone is having capacity to kill the bacteria as well as to control the further growth in the stored & packed water. Also it is increasing the level of oxygen in the water, where water becoming very healthy

Finally healthiest bacteria free, crystal clear and with required Quality of ions, purified & bacteria free drinking water will be send to packing

Each ESKAY System Includes :

Chlorine Dosing System

Raw Water Storage Tank

Raw Water Supply Pump

Pressure Sand Filter

Activated Carbon Filter

SMBS Dosing System

Micron Cartridge filter

High Pressure pump

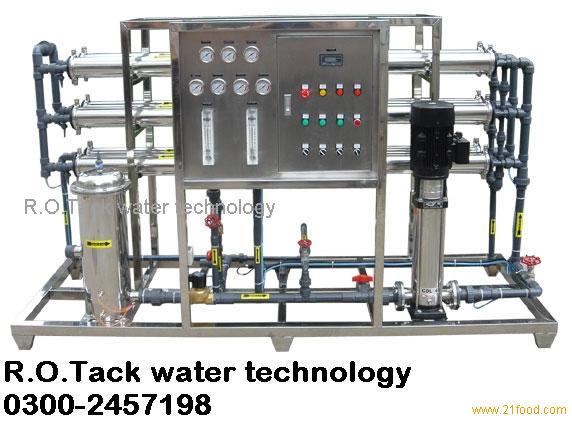

Reverse Osmosis System

Following is provided on Panel for Safe Operation of System

Feed & Reject Pressure Gauge

To indicate respective pressure of R.O. System.

Feed & Reject Flow Indicator

To indicate respective flow of R.O. System.

T.D.S Meter

To measure TDS of Raw & Treated water.

High Pressure Switch

For tripping high pressure pump in case of excessive feed pressure of R.O. System.

Time Tantalizer

For counting working hours of   H.P Pump/ R.O. System.

Product Water Storage Tank : (PWST)

Micron Cartridge Filter – II   & III : (MCF)

Ultra Violet Sterilizer : (UVS)

Ozone Generator : (OZONE)

Ozone Re - Circulating Tank : (ORT)
