Roller Type Pulp Moulding Machine(FC-ZMG4-32)

FOB Price:Price can be negotiated

Production Capacity:100 set per year

Payment Terms: FOB

Update Time:2014-01-08

Contact Supplier

Product Description

Egg Tray Machine Introduction:

Roller Type Pulp Moulding Machine which also named as Egg Tray Machine or Paper Machinery bring in advanced technology to develop and exploit our own FC brand products. It gets good comments from customer and gain social acceptance in society as a result of its excellent performance characteristic. The main part of our Egg Tray Machine use stainless steel material ,other auxiliary parts of Egg Tray Machine adopt domestic famous brand. We already develop automatic counting stacking and packing system etc.FC series Egg Tray machine features of high efficiency, low maintenance and energy saving .The pulp molding system can use all kinds of waste paper to produce high quality molded fiber products .With different moulds it can produce egg trays, vegetable trays, fruit trays, can trays, seedling tray, etc.

Principle of our Egg Tray Machine:

After take sanitary measures of the waste paper, put the waste paper into hydrapulper with water. After progress of batting pulp , grind pulp, size mixing, then send the pulp into molding machine by pump. The foaming mould continuously uniform rotation, the mould absorb the pulp by vacuum, the pulp which adsorb to the mould uniformly dehydrate by filter and Dehydration hole, Guarantee product and the mould compatibility. when the foaming moulds matched with transfer moulds ,the automatic control system send compression air to control the forming molds, at the same time, transfer mold form a vacuum, the product is send to the transfer mould , then the transfer mold put the product on to the conveyer belt of drying line. The Egg Tray Machine line also equipped with automatic packing ,automatic stacking and counting system so the products can packing well.

The whole Egg Tray Machine line include pulp making system + egg tray molding system + egg tray drying system + egg tray packing system.

(1):Pulping system Egg Tray Machine:

Pulping system is mainly comprised of hydrapulpter, pulp pump, multi-function refiner machine, blender, control cabinert, ect. It can make the pulp by the waste paper. And it is the first step in making process.

(2):Forming system of Egg Tray Machine:

This part mainly is the egg tray forming machine. We could produce the forming mould and transfering mould based on our customers request. The material of the mould could be Alumminum, Resin, Plastic.

(3):Drying line of Egg Tray Machine:

This is the very important in the all of Egg Tray Machine line. When the egg tray be made over by the forming machine, the egg tray will be put on the drying line, they will across the drying channel, then you can get the dry egg tray!

(4):Packing machine Egg Tray Machine:

This is the last step of Egg Tray Machine, when we get the finished tray from the drying line, we can packing the egg tray.

Some advantages of Egg Tray Machine:

(1): Fully automatic Production Line for paper egg tray, vegetable trays fruit tray, can trays ,seeding trays ,cup holder, bottle tray.

(2): 10 years experience in this field, chinese reliable supplier and support by the chinese government and university.

(3): The standing director of chinese packaging association.

(4): Most parts of Egg Tray Machine are famous brand in domestic ,some parts are japan or Germany brand .

Equipment and products of Egg Tray Machine:

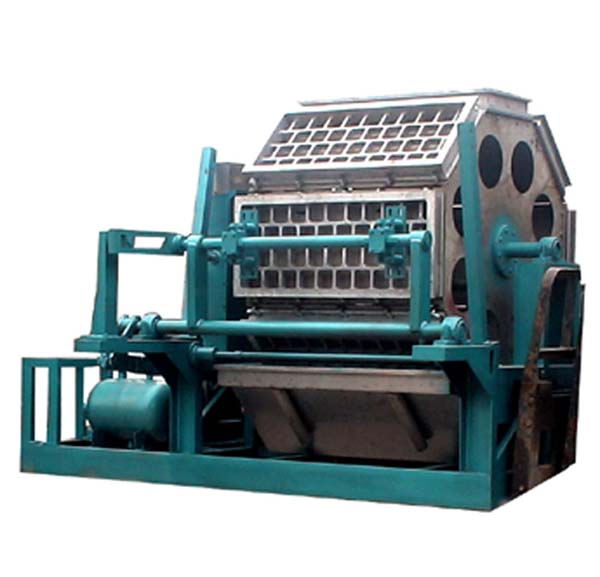

Our Egg Tray Machine:

Spare parts of Egg Tray Machine:

The main products of the Egg Tray Machine:

Other products of the Egg Tray Machine:

Working flow of Egg Tray Machine:

Please contact me:My name is Lewis and I work with Longkou FuChang Packing Machinery Co.,Ltd. .We are factory specializing in the manufacture and export of paper pulp moulding machine ,egg tray machine, epe foam sheet extruder ,epe foam fruit net/pipe extruder etc since 1995.Our egg tray machine and epe extruder machine have acquired the CE Certification

Main Technical Parameters of Egg Tray Machine :

Product name	Roller type Egg Tray Machine
Model	FC-ZMG3-24	FC-ZMG4-32	FC-ZMG6-48
Output pcs/h	15 00- 20 00	25 00- 30 00	3 500- 4 000
Molding Mould/pcs	24	32	48
Transfer Mould /pcs	3	4	6
