1,High airtight / Precision:Clearance 0.06 mm
2,High pressure:Operating pressure 8 bar

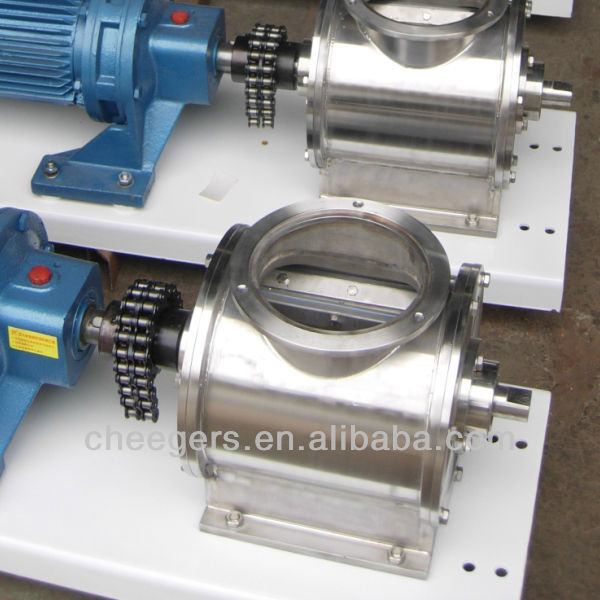

Our Rotary Airlock,your good worker
WELCOME TO CHEEGERS MACHINERY
Who we are?
We are CHEEGERS MACHINERY, engaging in producing Rotary Airlock Valve,covering an area of over 1,000 square meters. The main products in our company are stainless steel airlock and high pressure airtight airlock. We can offer you strong airtight airlock with small clearance, and it can work so smoothly for many years.
What we have?
² 54 years' experience in producing rotary airlock valve
² Professional technical engineer’s team
² Prompt reply (replies and offers the price in 24 hours)
² Standard project management
² Timely delivery & Best service
² ISO9001:2008 QC certificate
Why our products so popular?
² Equipped with German SEW motor and SKF rotor
² Exclusive appearance craft

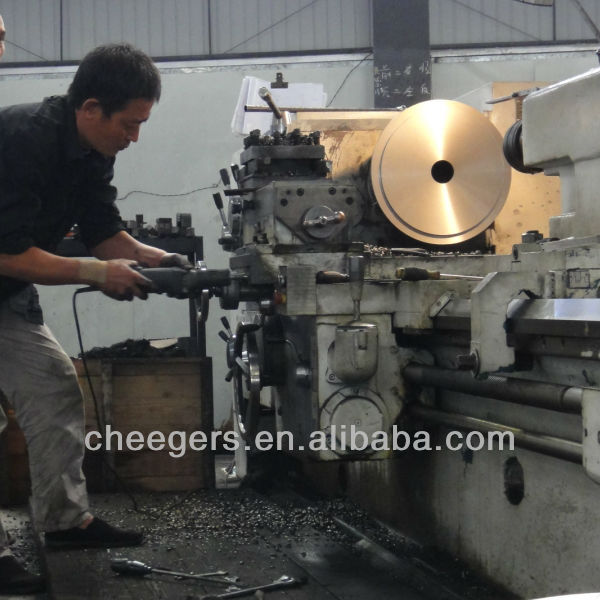

² High precision workmanship
² Product material adopted aging treatment
² High quality & Competitive price
² Longer service life
Commercial Details
Model Capacity Weight Size
TGFY-SS316 5L 98 kg 840×400×500
TGFY-SS316 9L 130 kg 950×400×500
TGFY-SS316 16L 160 kg 1050×450×570
Delivery term : FOB
Delivery time : 30days after first payment
Delivery port : Shenzhen/ Guangzhou / Shanghai
Payment term: 100% payment before ship
Packaging Detail: wooden box
Product Specifications
| Model |
TGFY |
| Flange |
Rectangular |

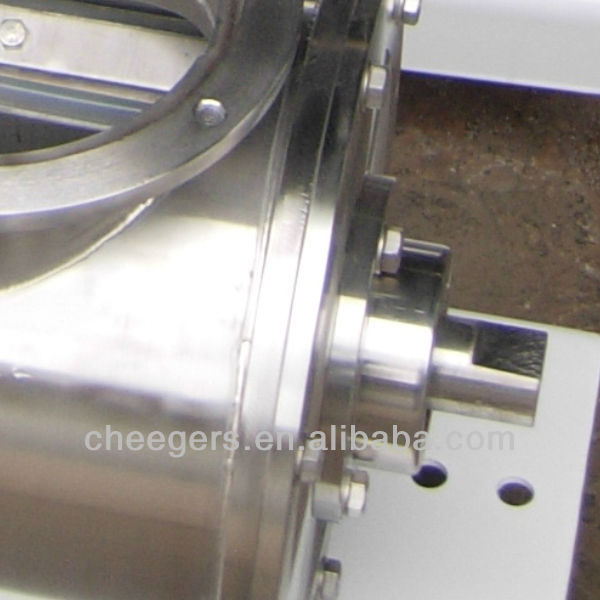

| Out-bearing |
Out-bearing |
| Body/Rotor Material |
SS316 |
| Rotor speed |
38 rpm |
| Rotor vane |
6 vanes |

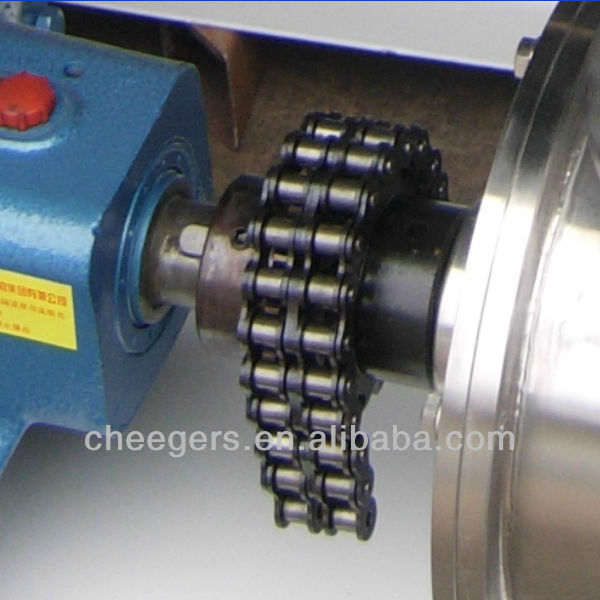

| Drive arrangement |
Direct connection |
| Motor | SEW |
| Bearing |
Double sealed with special material |
| Clearance control |
0.06—0.08 mm (0.06 in) |
System Craft Flow

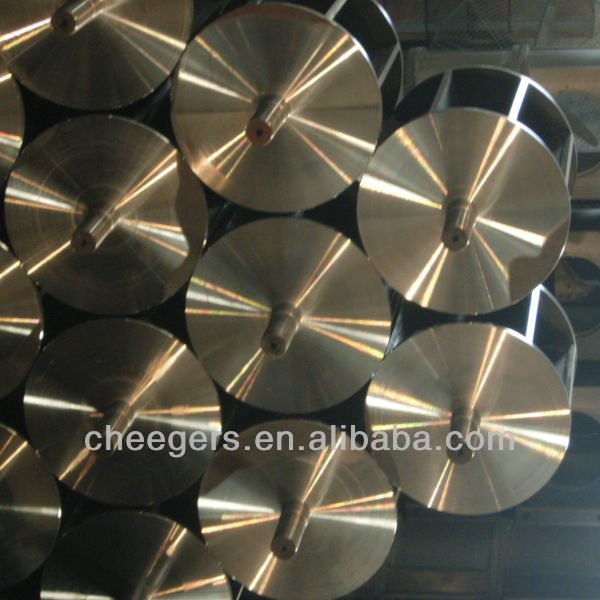

This rotary airlock is a kind of improved impeller open type rotary airlock. It is a discharging machine structured with impeller, bearing, oil seal, air lock shell, end cover and other spare parts. On the top of the rotary airlock there is flange connected with the unload opening of discharger to receive the material from discharger, and then unload material from the bottom of rotary airlock while impeller rotating. The impeller is open type, which can prevent material from blocking as well as reduce air lock weight and shape.
1,what's your product ? (what kind of power or pellet like flour.html" style="text-decoration:underline;font-weight:bold;" target='_blank'> Wheat Flour ,corn ,cement ,plastic ,wooden chip ,coal , mine , pharmacy , power and so on )
2,what's the production ? (how many tons/H or how many m 3 /H)
3,what's the air pressure upside and under the rotary valve ?
4,we have carbon steel ,stainless steel and cast iron for you to choose . which one you need ?

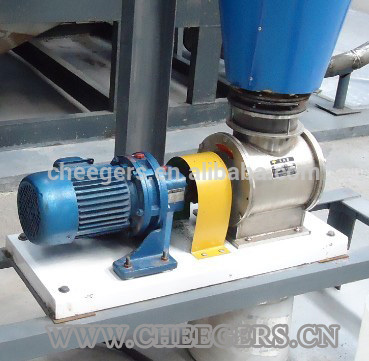

Stainless Steel rotary air locks are used in wide range of applications. The material
enters from the top and exits from the bottom flange of rotary valve. In order to meet
the requirement of food sanitation and medicine, chemical industry .etc. We use
high-quality stainless steel as the product material, such as 304/316L meet the
requirements of all kinds of wear-resistant, resistant to corrosion.
These are our patents certificates. You can count on us!
Any questions, please do contact me!
Name : Alina Zhang
Call : +86 13378114072
Fax : 86-028-84200586
Country/Region: China (Mainland)
Address: Sichuan Chengdu chenghuaqu longtansi chenghong road no.68
CHEEGERS AIRLOCK FACTORY , EXPERT ON AIR LOCK
CHEEGERS MACHINERY , THE REPUTABLE ROTARY VALVE SUPPLIER!
| Type: |
All-Purpose Flour
|
Made From: |
Wheat,Buckwheat,Barley,Oat,Cassava Or Manioc,Corn Or Maize,Gram,Nuts,Rye,Soy,Rice
|
Certification: |
ISO
|
| Place of Origin: |
Sichuan China (Mainland)
|
Brand Name: |
CHEEGERS
|
Packaging: |
Box
|
| Product Name: |
Rotary airlock valve
|
Capacity: |
5L/9L/12L 1Ton-30Tons/H
|
Rotor speed: |
30--45 RPM
|
| Motor: |
SEW german motor
|
Quality: |
Food class stainless steel 316L/SS304
|
Product: |
Pellet / Powder / Particle
|
| Clearance: |
Strong airtight 0.06mm
|
Delivery port: |
Shanghai / Shenzhen / Guangdong
|
Delivery time: |
25 Days After Fullpayment
|
| Payment term: |
T/T 30% in advanced
|
