Rotary arm stretch wrapper,China Sinolion price supplier

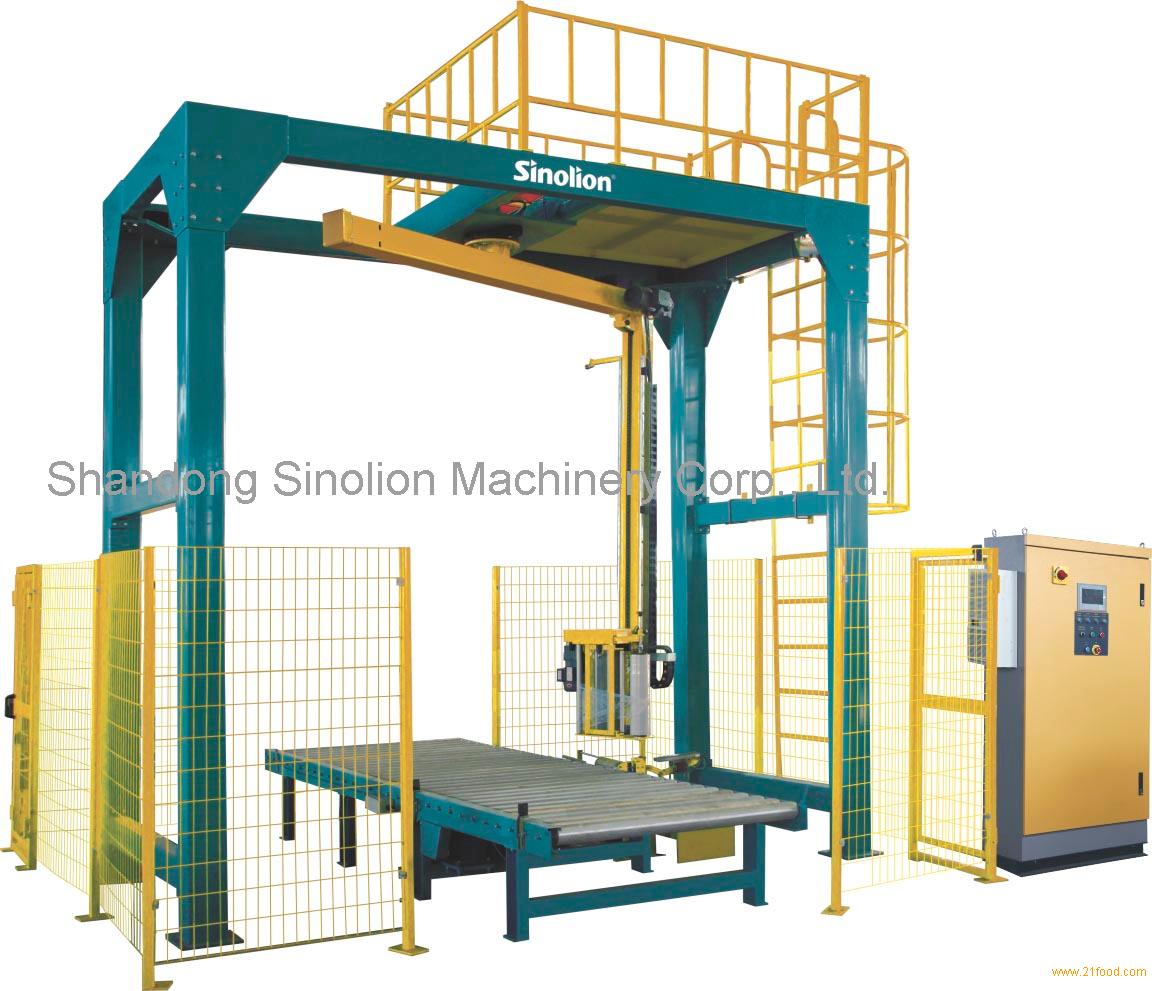

Rotary arm stretch wrapper

FOB Price:Price can be negotiated

Update Time:2021-06-23

Product Description

This is a fully automatic stretch wrap system that can be operate in-line with other automatic equipment. It is ideal for tall stack loads, which are unstable or too heavy to rotate.

Control System

OMRON PLC .

Photo-eye pallet height sensor.
0-9 separate top ,bottom & up-down wrap count selectors
Photoeye sensing delay .
Reinforce wrap allow more wrap on same location.
Film Tension Control adjustment on the panel.
315RPM arm variable a speed by frequency changer

Separate variable carriage up/down speed
Cycle pause capability.
Separate start, reset and emergency stop buttons.
Manual carriage up/down switch .
Turntable jog button.
Flash light for machine in operation.
Rotary arm stop by safety bumper and reflection photoeye sensing and obstacle in the rotating area.

Technology data:

Max load size(mm)       1200 (L)×1300(W) ×2200(H).
Packing efficiency         40-60 loads / hour.
Arm speed                     3-15rpm.
Power supply                1.3KW  220V 50HZ 1Phase.
Max load capacity         floor capacity.

Other Products

Turntable stretch wrapper

Top sheet dispenser with stretch wrapper inline

Horizontal stretch wrapper

Rotary arm stretch wrapper

Company Profile

Name: Shandong Sinolion Machinery Corp., Ltd.

Main Products: stretch wrapper, stretch wrapping machine, pallet wrapper, pallet wrapping machine, strapper, bottling line, carton sealer, labeler,

Business Type: Manufacture

Total Employees: 100 ~ 500

Established Year: 1998

Total Annual Revenue: US$10 Million - US$50 Million

Main Markets: North America,Eastern Europe,Southeast Asia,Oceania,

Address: No. 2010 Kehang Road, High-tech Area

Shandong Sinolion Machinery Corp.,Ltd, professional manufacturer specialized in producing automatic logistic packing and conveying equipment manufacturing. Established in 1998, it has been approved as "high and new technology enterprise" of Shandong Province.
"Create value for customers" is alway our corporate philosophy, we engaged in Automatic Packing systems research, development and application, with more than 10 years effort Sinolion become top brand of the industry. Now we have been the base of Producing Packing machinery and Conveying system base for the whole North China.

We have modern production plant, perfect supporting facilities, automatic producing machine and new product research center. Emphasize on quality and technology creation, we have drafted the industry standard for stretch wrapping machine, Rotary arm stretch wrapping machine, Horizontal Wrapping machine on line. We initiated many packing machines such as airport luggage wrapping machine, CCL packing machine, High speed rotary arm packing system and Heavy duty vertical steel strap packing machine. In the back-end packing filed such as chemical fiber, paper making, construction material and food & beverage, Sinolion is honored to be invited for site design. Meanwhile Sinolion become the top brand of China in Exporting packing machine.

Our products and our plant are both passed the inspection of ISO9001:2000 Quality and Management system standard, all our machines completely meet CE standard.
