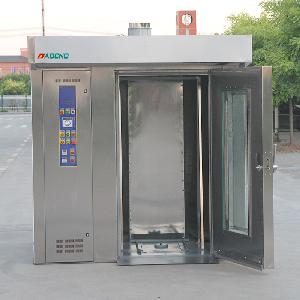

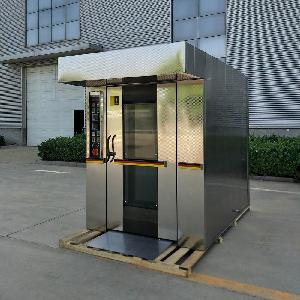

Rotary Oven
The energy required in the baking process is fine tuned by an energy saving heating element, a well balanced blower with precision nozzle which distributes the exact amount of heat necessary into the baking chamber.
Specification:
| Model
|
Applicable baking tray size（mm)
|
Baking area（㎡）
|
Maximum yield (According to bread/kg)
|
Dimensions（mm）
|
Weight（kg)
|
| R4060D
|
40*60 16-18 trays
|
4.3
|
50
|
108*136*225
|
650
|
| R4060E
|
|||||
| R4060G
|
|||||
| R6080D
|
60*80 16-18 trays
40*60 32-36 trays
|
5.7-8.6
|
120
|
173*150*240
|
1100
|
| R6080E
|
|||||
| R6080G
|
|||||
| R80100D
|
80*100 16-18 trays
45*75-2 Trolley 32-36 trays
46*76-2 Trolley 32-36 trays
|
9.7-14.5
|
195
|
210*183*240
|
1400
|
| R80100E
|
|||||
| R80100G
|
|||||
| R80120D
|
80*120 16-18 trays
60*75-2 Trolley 32-36 trays
40*60-2 Trolley 64-72 trays
|
12.8-17.2
|
240
|
240*205*240
|
1800
|
| R80120E
|
|||||
| R80120G
|
Rotary oven Features:
1.Even Baking.
2. Minimum baking time
Programmable timers with digital display to control baking time.
Low Energy & Fuel Consumption
Automatic heat & time setting
Apply to bake all kinds of bread, cake, cookie, biscuit and pasties
The burner imported from Japan with low oil consumption and low exhaust emission.
The inside and outside of the oven is stainless steel
9.The diesel consumption is about 3.2L/hour for diesel type. The electric consumption is 36 for electric type. The gas type needs 3.5L per hour.
10.Baking temperature is set and heating begins. When temperature reaches the set value, heat preservation will continue for 10 to 15 minutes to make temperature between the inside and outside of the stove balanced.
Application:
1.RIELLO burner to resist 1200℃
2.7 inch LCD screen for the baker to check the rest time easily
3.Steam system can change 8 kilogram water into steam within 20 seconds.
4.Position device on top to keep the trolley facing to the door after stopping
5.360°circling hot air to keep equal and optimal fire.
6.Air exhauster and fume collecting hood on top which is environmental protected.
