1.High efficiency, compact design and durability.
2.The unique grid design, shorten the time for net works, easy to operate.

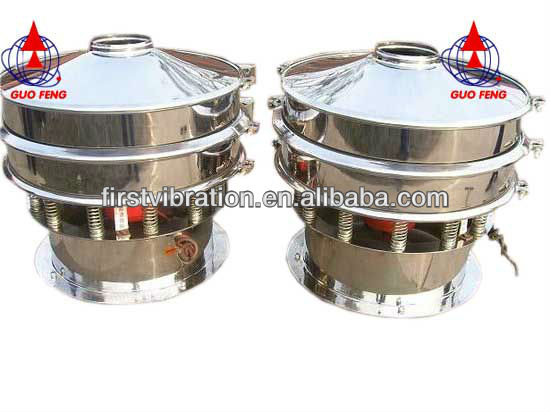

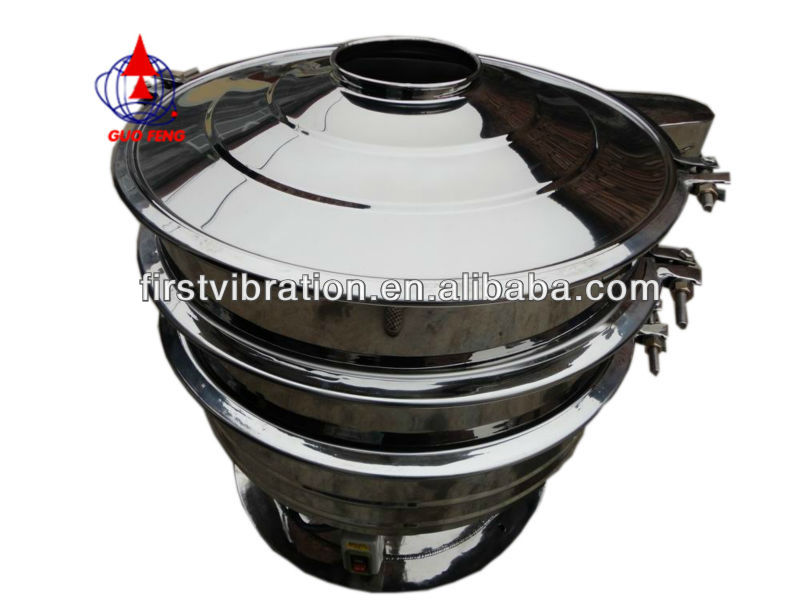

XZS Rotary Vibrating Screen
Introduction
This 3D rotary vibrating screen , which makes use of upright motor as the source of vibration , is suitable for the quick separation and filter of any powder, grain, liquid in the foodstuff, chemical pharmaceutical, grinding, ceramic and metals processing , etc.
Working principle
Its vertical motor, which is installed with eccentric hammers on the top and bottom, is regarded as a vibratory source. The eccentric hammers change the track of rotation into horizontal, vertical and inclined movement, and then pass the movement to the sieving surface. Adjusting the phase angle between the top and bottom eccentric weight can change trajectories of the materials on the sieve.
Applied field
Many kinds of the materials within 0~400 mesh like dry, wet, refined, coarse, heavy and light as well as those within 0~600 mesh like liquid and pasty materials can be screened by the machines. Details are as follows:
1. Chemical industry: resin, pigment, medicine, grease, extinction agent, rubber and plastic.
2. Abrasive, glass and ceramic professions: silicone sand, aluminum oxide, grinding abrasive, glass dust and fire-proof material.
3. Foodstuff: sugar, salt, alkali, glutamate, starch, powdered milk, soybean milk, yeast and fruit juice.
4. Papermaking profession: coated slurry, black and white liquor, padding fluid, waste liquid and waste water recycling.
5. Iron-smelting and mining industry: quartz sand, ore, titanium oxide and zinc oxide.
6. Mechanical profession: casting sand, powder metallurgy, electromagnetism material, aluminum powder, metal powder and alloy.
7. Environmental protection: trash, human and animal fecaluria, industrial waste water , food waste water and waste water processing.
8. Others: carbon black, activated carbon and pearl.
Parameter
Model |
XZS-4 |
XZS-6 |
XZS-8 |
XZS-10 |
XZS-12 |
XZS-16 |
XZS-18 |
XZS-20 |
XZS-25 |
Nominal diameter (mm) |
400 |
600 |
800 |
1000 |
1200 |
1600 |
1800 |
2000 |
2500 |
Layer |
1-3 |
1-3 |
1-3 |
1-3 |
1-3 |
1-3 |
1-3 |
1-3 |
1-3 |
Diameter (mm) |
330 |
550 |
750 |
900 |
1150 |
1500 |
1750 |
1950 |
2350 |
Specifications of screen mesh (mesh) |
2-325 |
||||||||
Max feeding size (mm) |
<20 |
<30 |
<30 |
<30 |
<30 |
<50 |
<50 |
<50 |
<60 |
Vibration time (Rpm) |
3000 |
1500 |
1500 |
1500 |
1500 |
1500 |
1500 |
1500 |
1500 |
Power (kw) |
0.4 |
0.75 |
0.75 |
1.5 |
1.8 |
2.2 |
2.2 |
2.5 |
3.7 |
Three machine material are supported: all stainless steel , all carbon steel , contact part stainless steel .

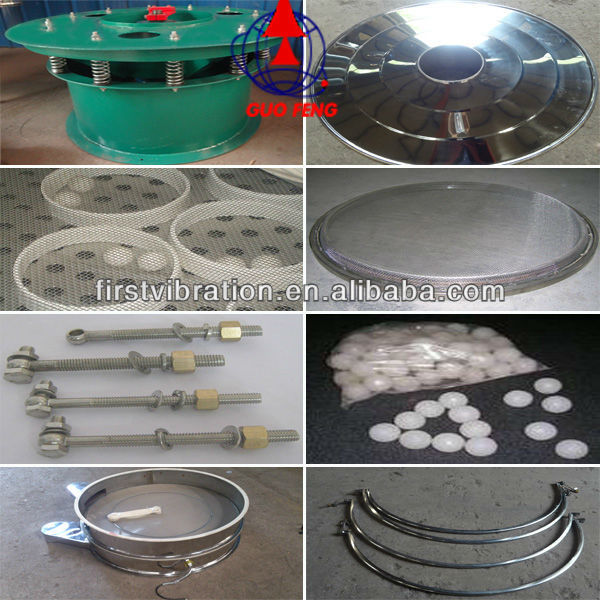

picture of its different parts
ready for despatch
working site
Place of Origin: |
Henan China (Mainland)
|
Brand Name: |
Guofeng
|
Model Number: |
XZS
|
Type: |
Grain Processing Equipment
|
After-sales Service Provided: |
Overseas third-party support available
|
Materials: |
SUS304or carbon steel
|
Layer: |
1-5
|
Voltage: |
380 or optional
|
Certificate: |
ISO,CE,CCC
|
Service: |
24 hours hot line and video show
|
Custom design: |
offered
|
Company history: |
14years
|
Diameter(mm): |
330~2350
|
Vibration time(Rpm): |
1500/3000
|
Power(kw): |
0.4~3.7
|
