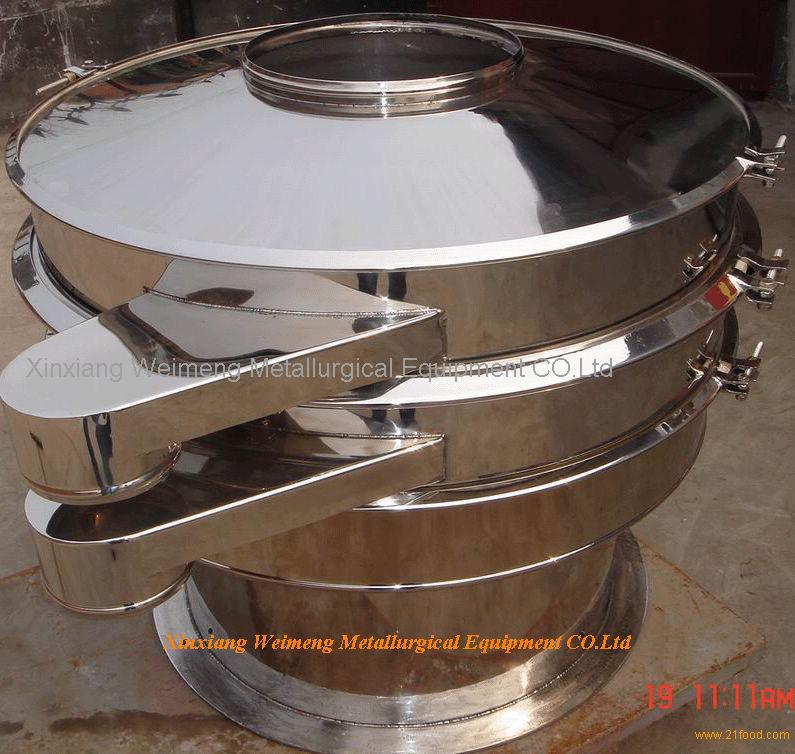

Rotary vibration screen for cocoa powder,China Weimeng price supplier

1 Work principle

Its vertical motor, which is installed eccentric hammers on the top and bottom, is regarded as a vibratory source. The eccentric hammers change rotation into horizontal, vertical and inclined movement, and then pass the movement to the sieving surface. Adjusting the phase angle on the top and bottom can change trajectories of the materials on the sieve.

  2  Features

(1) High efficiency, compact design and durable, no powder, mucus can be sieving.

(2) Replacement Screen easy, simple, easy to clean.

(3) Mesh is not blocked, no powder flying, can be screened to 500 mesh or 0.028mm.

(4) Impurities, coarse automatic discharge, can be a continuous operation.

(5) The unique grid design, mesh will use a long time, for only 3-5 minutes to replace net.

(6) Small size,little space and easy to move.

(7) Sieving machines can reach 5 layers, it is recommended to use 3 layers.

  3 Applicable Industries

Chemical industry : resin, pigment,cosmetic, coatings, chinese medicine powder

Food industry: sugar powder, starch, salt, Rice noodle, milk powder,egg powder,sauce,  syrup

Metallurgy, Mining industry : aluminum poweder, copper powder, ore alloy powder, welding rod  powder,

Medical industry: all kinds of medicine

Waste treatment : disposed oil, disposed water, disposed dye waste water, active carbon
