Round Vibrating Riddler machine For Cocoa Powder,China HENG SHUN price supplier

Round Vibrating Riddler machine For Cocoa Powder
FOB Price:Price can be negotiated
Production Capacity:500 Set/Sets per Month remark: urgent
Payment Terms: US $500 - 4,500 / Set
Update Time:2014-09-20
Product Description

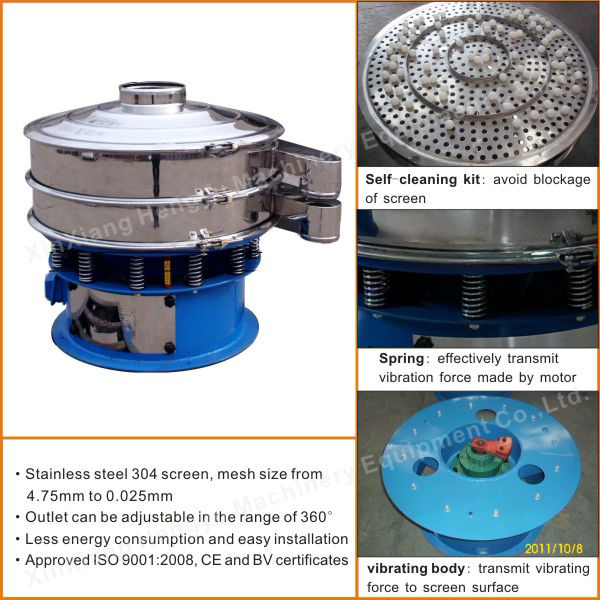

1.No blockage at screen
2.Parts contacting with stainless steel 304
3.Replace mesh rapidly, simple operation
4.Saving energy

  Round Vibrating Riddler machine For COCOA POWDER



  Round Vibrating Riddler machine For Cocoa Powder



Main Functions

  Round Vibrating Riddler machine For Cocoa Powder

1. Grading
The Multi—layer type can screen and separate five groups of different particles at a time. It is suitable for dry materials.


2. Remove the impurity
The vibrating riddler equipment can quickly separate a few oversize or undersized particles from a quantity of materials.



3. Solid-liquid separation

The mixture of solid and liquid can be separated effectively by single or multi—layer type into different grade materials.

Product features

Round Vibrating Riddler machine For Cocoa Powder

1. Fully closed, no dust flying that will help to improve working conditions.

2. Mesh is not blocked, can be screened to 500 meshes or 0.028mm.

3. Discharging coarse and fine material can grade automatically and reach automatic operation.

4. Single layer and multi-layer are both available.

5. The model with damping spring device.

6.IP55 protection level motor and higher or lubrication free motor as request.



Technical Parameter

Round Vibrating Riddler machine For Cocoa Powder

Model

Effective dia.

(mm)

Effective sieving

area(m 2 )

Screen

Layer

Powder(KW)

Vibrating

motor

Common motor

HY-400

Φ360

0.1017

5-500 mesh

1-4

0.18

--

HY-600

Φ560

0.2461

0.25

0.75

HY-800

Φ760

0.4534

0.55

1.1

HY-1000

Φ930

0.6789

0.75

1.5

HY-1200

Φ1130

1.0023

1.1

1.75

HY-1500

Φ1430

1.6052

1.5

2.2

HY-1800

Φ1730

2.3494

2.2

3.0

HY-2000

Φ1830

2.6288

3.0

3.0



More product details

Round Vibrating Riddler machine For Cocoa Powder

Round Vibrating Riddler machine For Cocoa Powder



Why us?

Round Vibrating Riddler machine For Cocoa Powder

Quality Control

1.Control from material: SUS 304, mild steel Q235 and mild steel Q345, electrode wire, screen mesh, etc. Though inspection, enter the semi-finished storehouse, put into production and use; otherwise, send them back.

2.Control from inspection:

a)Process inspection after batching raw material, welding, sanding, polishing, acid washing, powder coating and assembling, final inspection before delivering. Timely correction once found the problem.

b)Third party inspection available as request.



Approved ISO 9001:2008, CE and BV certificates.

1.ISO International Standards ensure that products and services are safe, reliable and of good quality.

2.Our products have been passed assement by BV companywith 180 years history.

3.CE certification is designed to protect EU consumers by regulating products to reduce possible dangers to people and the environment.

4.We are the international Gold Supplier in the biggest B2B Platform Alibaba.The "safe" ranks the fist in it.

Round Vibrating Riddler machine For Cocoa Powder



Experience in export

1.We have 7 years experience in export area.

2.T he export industries : Food, Chemicals, Metals, Pharmaceuticals, Ceramics, Environment, etc.

3.Exporting countr ies: Australia, Turkey, Vietnam, India, Singapore, United States, Denmark, Vietnam, Malaysia, United States, and Denmark,etc.



How to choose the suitable model?

Round Vibrating Riddler machine For Cocoa Powder

Please provide the detailed information as follows, so that we can supply you the suitable product:
1. Processing raw materials: name, particle size?
2. Handling capacity:  eg: Kg/hour?
3. Mesh size:  eg: mesh or mm?
4. Materials of machine: carbon steel, parts contact with material are stainless steel or full stainless steel?



  Round Vibrating Riddler machine For Cocoa Powder







  Dear customers, if you have the screening problems to be resolved, send

e-mails now!







Place of Origin:
Henan China (Mainland)
Brand Name:
HENG SHUN
Model Number:
HYBZ-1200
Type:
grading, remove the impurity and soild-liquid separator,round
After-sales Service Provided:
Engineers available to service machinery overseas
Device name:
Round Vibrating Riddler machine For Cocoa Powder
Construction:
cleaning ball
Surface:
mirror splishing
Motor:
explosion-proofmotor
Structure:
separating machine
Application:
granule, powder, mucus
Packing:
fumigation free of wooden case
Customization:
acceptable
Green product:
environmental design with dust cover
Other Products
Company Profile
Name: Xinxiang Hengyu Machinery Equipment Co., Ltd.
Main Products: Linear Vibrating Sieve,Round Vibrating Sieve,Ultrasonic Vibratory Separator,Tumbler Screening Machine,450 Type Vibratory Separator
Business Type: Manufacturer
Total Employees: 51 - 100 People
Established Year: 2005
Main Markets: Domestic Market, Southeast Asia, North America, Southern Europe, Northern Europe
Address: No. 8 Hengyu Street, Middle of Qinglong Road, Xinxiang County
1) Manufacture sieving and conveying equipment
2) 4 years Gold Supplier certificated, 9 years of OEM and ODM experience
3) 28 years of experience of one engineer, 22 years of experience of one engineer
4) 119,097 square meters workshop area
5) Monthly production capacities: 150-200 sets
6) All goods examined before delivery by 4 QC staff
7) Delivery time within 5 working days
8) Exported to 20 counties and regions
9) ISO 9001:2008, CE, BV more
