rubber kneader machine/chewing gum kneader mixer,China Yuanda price supplier

rubber kneader machine/chewing gum kneader mixer

FOB Price:Price can be negotiated

Production Capacity:200 Piece/Pieces per Year

Payment Terms: US $1,500 - 50,000 / Set

Update Time:2014-09-25

Contact Supplier

Product Description

rubber kneader machine
hydraulic tilt,screw extruder
2L-8000L
heating,cooling,vacuum available

rubber kneader machine

General instrucation:

model: single layer or double Jacket(for cooling&heating)

heating method : electric heating or steam heating.

Voltage&Frequency: customize

discharge way: hydraulic tilt,manual dump,screw extruding,ball valve discharge

vacuum system: can be provide

Two blade speed: can be adjust by frequency inverter if is needed.

Specialized for plastic,BMC/CMC,ink,Dough/Flour,Clay,Silicon Rubber,Additive etc.

Material: stainless steel 304/316 or carbon steel(Q235)

experience and export:

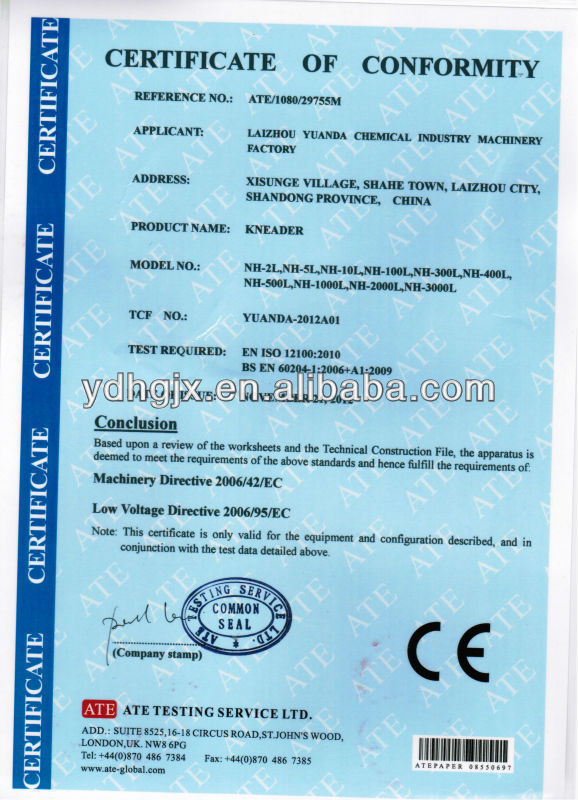

we have do this machine produce more than 15 years,have rich experience and mature technical to design and produce this machine, CE certification can be provide for import customs clearance.

E xport this machine to Australia,Brazil,Spain,America, Australia,Brazil, India,Russia,Egypt,Tansania,etc

output : 2L-8000L(general information as i list as follows)

Laboratory model: 2L,5L,10L,20L etc, industrial scale produce 100L,300L,500L until 8000L.

model		NH-5	NH-10	NH-50	NH-100	NH-300	NH500	NH1000	NH2000
volume(L)		5	10	50	100	300	500	1000	2000
blade speed(RPM)		33,22	33,23	45,23	35,22	37,21	37,21	35,25	30,16
motor power(kw)		0.75/1.1	1.5/2.2	2.2/3	5.5/7.5	11/15	15/18.5	22/28.5	30/37
heating	steam:pressure(Mpa)	0.3
method	electric:power(kw)	0.9	2.4	4	6	18	24	30	45
vacuum (Mpa)		-0.094
pressure(Mpa)		0.45					0.35
dimension(m)		0.850.350.45	0.950.450.45	1.70.951.05	2.21.1 1.25	2.8* 1.8*1.5	3.22.21.7	3.52.51.8	3.72.7


weight		85	120	560	1150	1600	3000	4500	6500

Any interested about this machine,welcome to contact with me.

Sales Manager/Elaine Li

Phone No: 0086- 15063018747

Laizhou Yuanda Chemical Industry Machinery Factory

Fax: 0086-532-80983779

http://www.ytyd.cn

Condition:	New	Mixer Type:	Screw	Product Type:	dough,silicon sealant,rubber,BMC
Application:	high viscosity material	Additional Capabilities:	mixing,kneading,stirring	Place of Origin:	Shandong China (Mainland)
Brand Name:	Yuanda	Model Number:	YD-NH	Max. Loading Capacity:	8000L
Voltage:	220v/380V/415V/440V	Power(W):	0.75KW-45KW	Certification:	ISO9001,CE certification,can provide CE
Warranty:	12 months	After-sales Service Provided:	Engineers available to service machinery overseas	capacity:	2L-8000L
model:	single layer or double layer	quality:	304/316 SS or carbon steel	experience:	many years
use for:	silicon rubber,dough,resin,additive	discharge way:	hydraulic tilt,screw extruding,bottom valve	heating:	option
vacuum:	option	price:	competitive low price
