SAIHENG biscuit production line,China Saiheng price supplier

No.

Name


Introduction

1

Flour

Mixer

Function: Kneading flour machine is stirring machine which crumples up flour powder and water into dough or other materials and is independently used with other machines.

2

ROLL

CUT

BISCUIT

FORM MACHINE

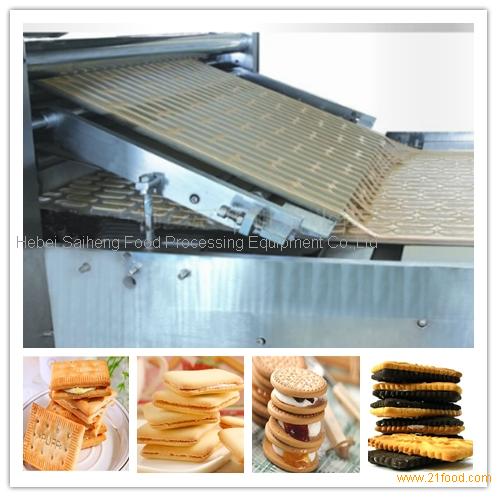

Function: After putting stirring flour powder into the machine, they are one time shaped into unripe biscuit,all kinds of middle and high grade biscuit and thin biscuit through three stages roller and roller cutting molds.

3

ROLL

PRINT BISCUIT

FORM MACHINE

ROLL PRINT BISCUIT FORM MACHINE is the main machine for the biscuit production line. It will convey the mixed / processed dough to the moulding machine, then  after mixing into a dough, then baking though the oven to get ,a loose ,delicious crispy biscuit which is well welcomed by the consumers

4

TUNNEL

OVEN

The machine is heated with gas. Rapid heating up and energy is saving.

The oven is grouped into heat control zones. The top and bottom heat are independently adjustable and preset. The measured temperature and preset temperature will be displayed in digital form.

To allow independent movement of the chamber to relieve stresses when expanding or contracting.

High-quality thermal insulating material is used to get good insulation and efficient fuel usage.

Steelwork, ducts and chambers paint with high temperature (400C) silvery paint. Outer covers paint with hard finish gloss paint.

Oven band level:1100mm Fully automatic PID temperature control and automatic constant temperature.

Fully automatic PID temperature control and automatic constant temperature.Highest temperature:360C

5

EIECTRICITY CUBICLE

Weight : 200kg

Size : 0.8×0.55×1.6m

6

OIL

SPRAY MACHINE

This machine is used for spaying oil on the surface of the baked biscuit. This step can make the biscuit surface color equally, high quality and better taste.

Conveying Speed: 10-20m/minute

It is using Centrifugal pump to pumping the oil from the oil tanker. The quantity of oil is adjusted by the valve. Motors drive the rotating disc to spray the oil on the food.

Powered though motor. When spraying the oil film, 4 motors will function simultaneously.  There are some valves in the pipe to control the oil volume.

It is equipped with a temperature control unit.

The direction of the oil spray nozzle can be adjusted in a 360manner

7

NETBELT COOLING CONVEYOR

Function: Oil-spraying finished biscuits are cooled through this conveyor belt.

Speed is adjustable.

Natural Cooling on the net belt.

8

180°

LAYOUT

TURNING

MACHINE

This machine is used to turning the layout as U types when the length of the factory is not enough, It can be in 90°,180°.

The unit has an electric-magnetic speed regulator; you may regulate rate the speed reliably according to the requirement of baking capability.

It’s Reliable and high quality equipment. Operating safety and saving cost

9

BISCUIT SANDWICHING MACHINE

Adjusted by advanced step less transducer, the speed is stable.

With photoelectric control, it can automatically detect the lack of biscuits. When the machine stops, the stuff-feeder will shut-down automatically to ensure no leakage of stuff and keep the machine clean.

Arranged by the star-wheels, the biscuits are ranked orderly.

The stuffing is various and suitable for jam stuffing, butter stuffing, 2-layer and 2-color stuffing (3-biscuit2-layer stuffing or 2-biscuit 1-layer stuffing)

The temperature can be controlled automatically to ensure constant temperature for the stuffing, When various specifically ones of layer-biscuit such as rectangle, square, roundness and ellipse are changed, every parts can be adjusted rapidly and easily.

With novel aspect, the whole machine is mainly made of stainless steel and meets the foodstuff sanitation requirement.

10

BISCUIT PACKAGING MACHINE

This machine is designed for solid matter pillow packaging; it is propitious to all kinds of well-regulated solid matter, such as the food, cookies, bread, moon cake, candy etc, and commodity, industry accessory etc. For bulk or separation of individual objects should be placed in the box first, or tie them up, make them come into a whole ,and then it can be packaging on this machine, the same as the other non-solid package This should also associate of this essentials.
