 Sartorius replacement PP high flow filter cartridge for  beer filtration

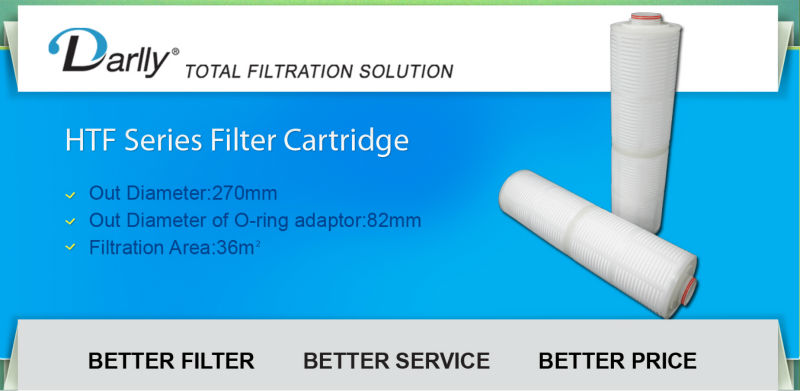

1.Out Diameter:270mm
2.Length:20",40"
3.Very high flowment

4.Big filtration area

5. Back washable.

This product is specially developed for the trp and fine filtration of beer.The filtration media is imported high-quality polypropylene(PP) with gradient pore structure,it meets the strict requirements of FDA for food use.The cartridge has integral configuration.the outer part os the cartridge has coarse meida with prefitration performance,the inner part has fine filtration media performing the final filtration as the process needs,the diameter of the cartridge is up to 270mm with the length 40”(1016mm),the filtration media has optimized pleat structure,the effective area is highly increased,resulting in high flow,low pressure drop and long service life,the inside and outside of the cartridge has powerful supports with high pressure resistance,the performance can be recovered by back flushing and back washing,the operation cost is significantly reduced,the cartridge can be installed in the existed housings ,no need for hardware changement.

-- All polypropylene(pp) material,excellent chemical compatibility
-- Gradient pore filtration media,optimized pleat structure
-- Integrate prefiltration and final filtration in one step
-- Performance recovery by flushing and back washing using cold water,hot water and hot caustic solution
-- Big filtration area,high flow,long service life
-- Loss quantity to be used,easy and quick to install.

Part Numbers/Ordering Information
HTF Series Filter Cartridge P/N
DLHTF*-= (e.g., DLHTF-3-S)

Code*          Removal Rating                             Code=          O-Ring Material
02                0.2µm                                                 S                  Silicone
12               1.2µm
3                  3µm
8                  8µm
