save energy microwave drying equipment for cinnamon
1.Rapid symmetrical roasting
2.Save cost
3.easy to control
save energy microwave drying equipment for cinnamon
1. Structure
The whole machine consists of stainless steel, and it adopts the combined and removable assembly
module in several parts: A.The main body frame; B.Conveying part; C.Microwave generator parts;
D.Microwave heating cabinet parts; E.Microwave preventing leakage parts etc.
2.Advantage
1,continue produce
2,keep original color and nutration
3,easy to control
4,save energy
5, save labours
6 ,improve the quality of products, increase income
3.Application:
Microwave industrial tunnel baking&puffing equipment are widely used in the peanuts,wheat,corn,filbert and DRIED FRUIT etc;and for puffing of leisure food,pachyrhizus chips,potato chips,dried shrimps,fish maw and so on.Compared with the traditional production methods,microwave baking foods are crispy and delicious,puffed full of particles,natural color, beautiful appearance,and has insecticidal Sterilization effect.
4.Main technical parameters:
| Power supply |
380V±10% 50HZ±1% three-phase five-wire |
| Microwave Output Frequency |
2450±50MHz |
| Microwave input apparent power |
≤28KVA |
| Microwave output power |
≥20KW |
| Microwave power adjustment range |
0-30KW(adjustable) |
| Ambient temperature |
-5-40C |
| Relative humidity |
80%, Surrounding environment:no corrosive gas, conductive dust and explosive gas |
| Overall dimension(L*W*H) |
9550*820*1750 mm |
| Transmission speed |
0-10m/min(adjustable) |
| Height of the inlet and outlet |
60 mm |
| Microwave leak |
accord with a country GB10436-89 standards(<5 mw/cm^2) |
| Equipment safety |
accord with GB-5226Electrical safety standard accord with a country GB16798-1997 Food machinery health security index |
| NOTE |
WE CAN DESIGN ACCORDING TO YOUR REQUIREMENTS! |

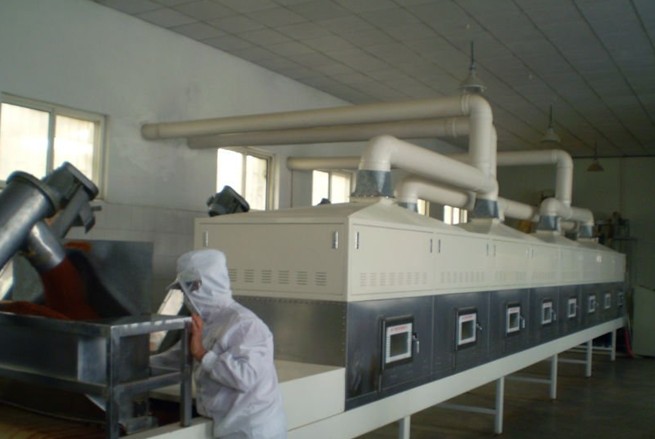

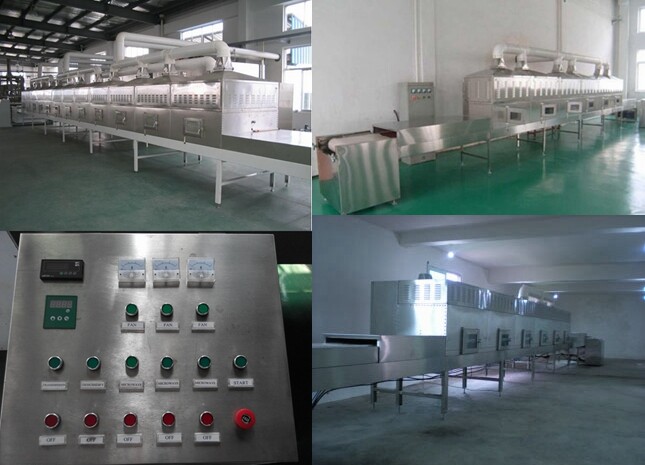

Product show:
Package:
NOTE: We have a good after sale service system
we can design according to your requirements!
Please contact me to talk more details!
| Condition: |
New
|
Type: |
Spice Machine
|
Automatic Grade: |
Automatic
|
| Production Capacity: |
300sets/year
|
Place of Origin: |
Shandong China (Mainland)
|
Brand Name: |
Adasen
|
| Model Number: |
JN-20
|
Voltage: |
380V(adjustable)
|
Power(W): |
20KW
|
| Dimension(L*W*H): |
9550*820*1750
|
Weight: |
1800kg
|
Certification: |
CE
|
| Warranty: |
12months,12 months
|
After-sales Service Provided: |
No overseas service provided
|
transmission speed: |
0~10m/min(adjustable)
|
| material: |
304# stainless steel
|
Conveyor belt: |
Teflon
|
magnetron: |
Panasonic
|
| temperature: |
0~200C(adjustable)
|
