SB Series Automatic Portable Mini Rice Mill Machine,China MG price supplier

SB Series Automatic Portable Mini Rice Mill Machine

FOB Price:Price can be negotiated

Production Capacity:1000 Set/Sets per Year

Payment Terms: US $0 - 650 / Set

Update Time:2023-12-21

Contact Supplier

Product Description

SB Series Automatic Portable Mini Rice Mill Machine
1.SB-10D Rice Mill could clean+ husk+ polish the paddy.
2.We are located

Working principle for SB Series Automatic Portable Mini Rice Mill Machine

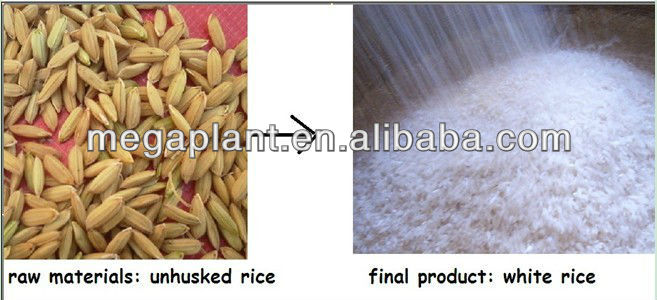

Paddy firstly enters into the machine through vibrating sieve and magnet device, then passes rubber-Roller for hulling. After air blowing and air jetting to the milling room, the paddy finishes the process of husking and milling in succession. Then husk, unripe paddy, and white rice are expelled out of the machine respectively. The dust collector collects the fine rice husk

Features for SB Series Automatic Portable Mini Rice Mill Machine

1. Can remove paddy husk , whitening rice , crush rice husk at one time

2. It is easy to operate with less power consumption and high productivity.

3. with Iron roller that the rice has low breakage

4. Low temperature when working

Parameters for SB Series Automatic Portable Mini Rice Mill Machine

SB-10D Rice mill general description:

Main Technical specifications:

1.Rice huller

Rubber roller,Ø222×101.6mm(diameter×length)
R.P.M of fast roller 1200(rpm)
R.P.M of slow roller 830(rpm)
R.P.M of hulk blower 1681(rpm)

2.Rice polisher

Iron cylinder,Ø86×278mm (outer diameter of protrudes×length)
Screw conreyor,Ø80×110mm(outer diameter×length)
Hexagonal screen,Ø97×266mm
Mesh of hexagonal screen,0.95×15mm
R.P.M of main shaft of rice polisher 900(rpm)
R.P.M of high pressure blower 3400(rpm)

3.Power requirement 7.5kw 11kw (or 10HP/15HP)

Output

In distribution power 7.5KW
Long-shaped rice 500-550 KG.P.H(standard )
Round-shaped rice 600-650 KG.P.H(standard )
In distribution power 11kw
Long-shaped rice 650-750 KG.P.H (standard )
Round-shaped rice 750-900 KG.P.H(standard )
Overall dimensions of machine 1050×800×1550mm(L×W×H)
Pack: wooden case Size:750*780*1700mm
20` container:36 sets
Weight of machine:195 KG

10. Power electric motor : 7.5 kw OR 11 kw

We also have SB-5 SB-30/SB-50. Please feel free to contact us

Model	Capacity (Kg/H)(Paddy)	Power (Kw)	Package dimension (mm)	Weight (Kg)
MG-SB-5	500-600	5.5	860×692×1290mm	195
MG-SB-30	1100-1500	15	1070X760X1760	230
MG-SB-50	1800-2300	22	2400X1080X2080	280

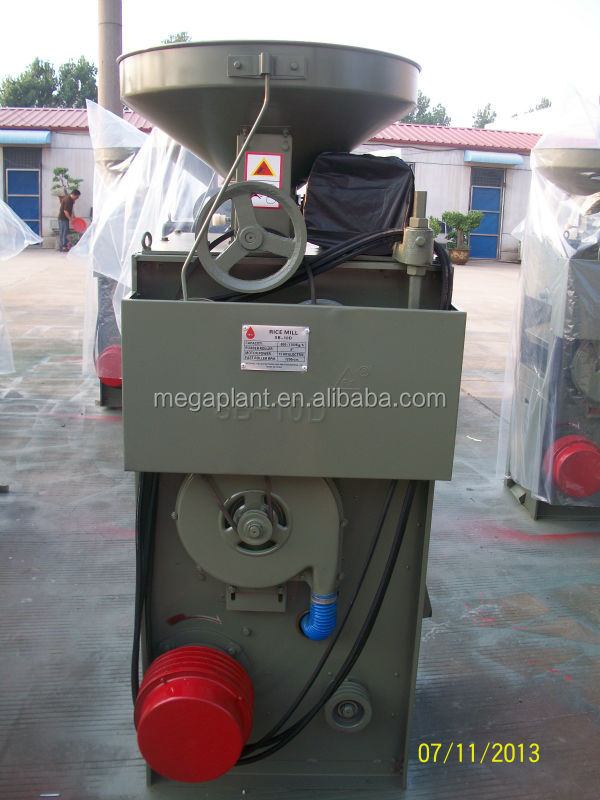

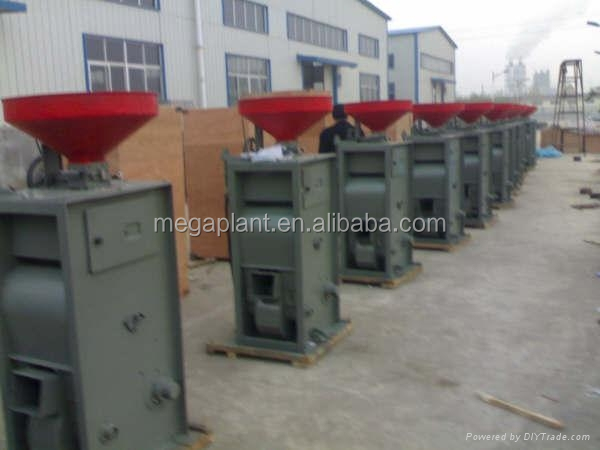

Photo for SB Series Automatic Portable Mini Rice Mill Machine

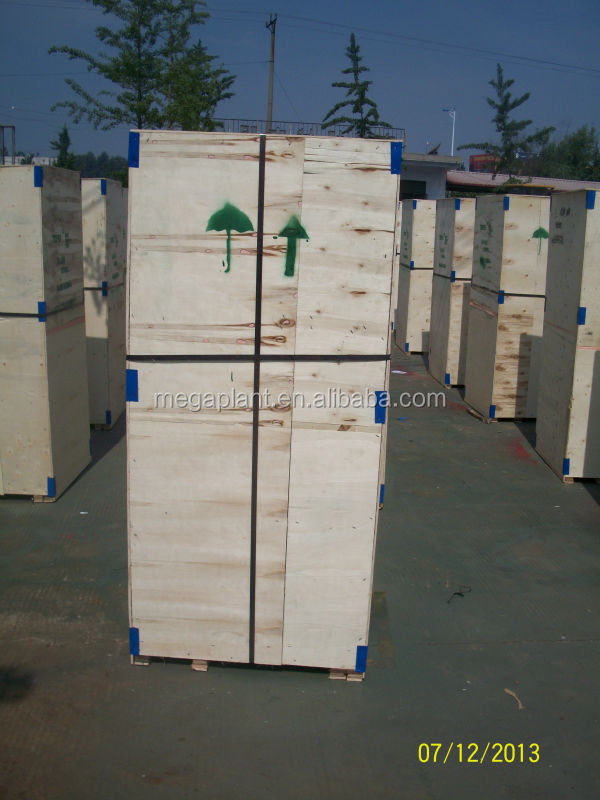

Package photo for SB Series Automatic Portable Mini Rice Mill Machine

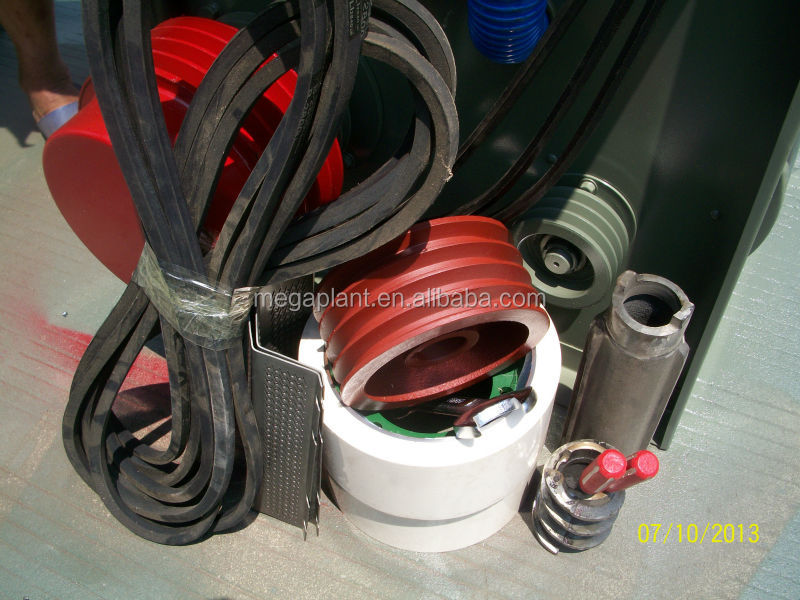

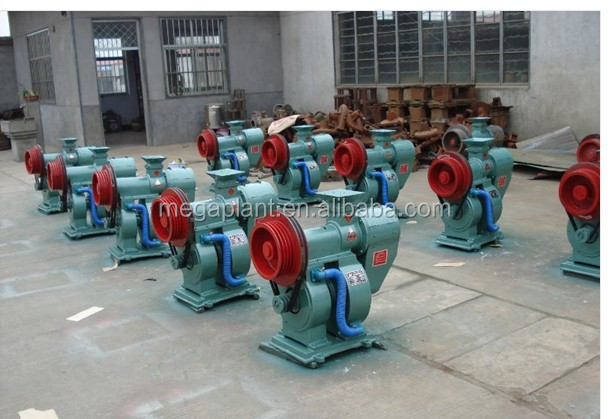

Spare parts for SB Series Automatic Portable Mini Rice Mill Machine

More details please contact us SB Series Automatic Portable Mini Rice Mill Machine

Condition:	New	Place of Origin:	Henan China (Mainland)	Brand Name:	MG
Model Number:	SB-10D	Production Capacity:	800-1200kg/hour	Voltage:	380
Power(W):	11000	Weight:	195	Dimension(LWH):	7507801700mm
Certification:	ISO	Warranty:	12 Months	For:	paddy rice .round rice . black rice
Rice mill:	rice polisher with rice huller	name:	SB Series Automatic Portable Mini Rice Mill Machine
