  SB Series Automatic Portable Mini Rice Mill Machine for Sale Manufacturer in China

1. Brief introduction of rice mill machine:

Th e SB series of rice mill machine is a kind of comprehensive equipment. This rice mill machine can complete all the processing works from cleaning grain, hulling grain to milling rice. As for husk, chaff, blighted grain, as well as polished rice, they are all pushed out of rice mill machine separately. Also, this rice mill machine is a comprehensive expression for all the good qualities of varied kinds of rice-processing machines.  For instance, it is arranged with a comprehensive view of situation and is designed rationally. After being processed by rice mill machine, rice consists of less chaff and few of them are damaged (broken). The neatness of such rice may be up to above standard 1.

2. The detailed parameters  of rice mill machine:

3. Working principle o f  rice mill machine:

Paddy firstly enters into the rice mill  machine through vibrating sieve and magnet device, then passes rubber-roller for hulling. After air blowing and air jetting to the milling room, the paddy finishes the process of husking and milling in succession. Then husk, unripe paddy, and WHITE RICE are expelled out of the machine respectively. The dust collector collects the fine rice husk.

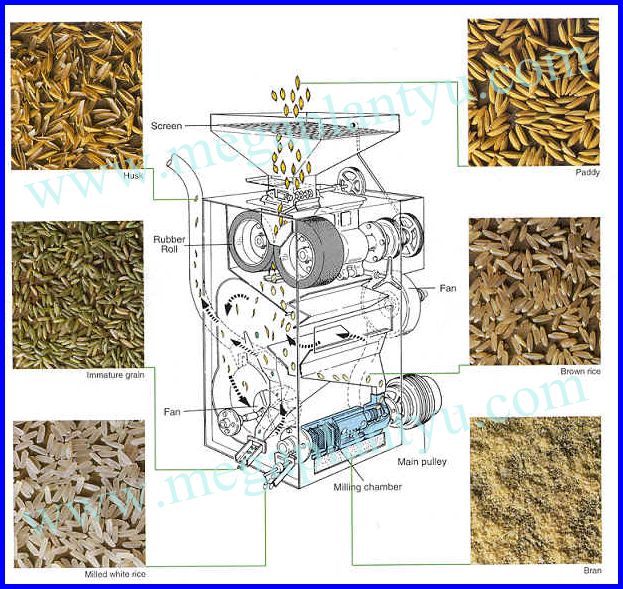

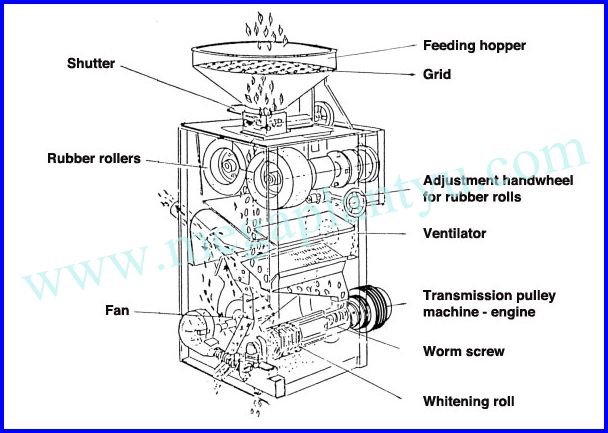

4. The rice mill machine diagram:

5. Features of the rice mill machine:
1. The rice milling machine can remove paddy husk, whitening rice, crush rice husk at one time;

2. The rice milling machine is easy to operate with less power consumption and high productivity;

3. with Iron roller that the rice has low breakage;

4. Low temperature when working.

6. Working procedures of  rice mill machine:

Rice goes into machine via vibrating screen (removing stones) and magnet unit (removing little piece of steel), and then passes through hulling room (remove the yellow husks), winnowing room, milling room (remove the brown chaff, and then become white rice), and blowing room in turn.

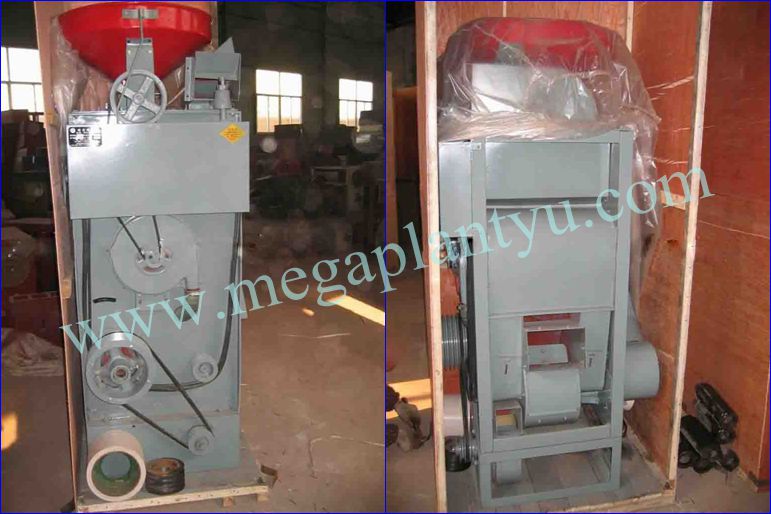

7. Packaging of  rice mill machine:

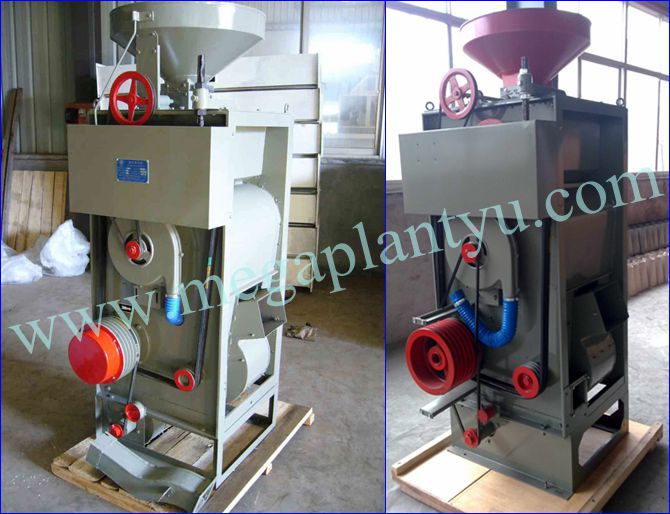

  8 . More pictures of rice mill machine:
