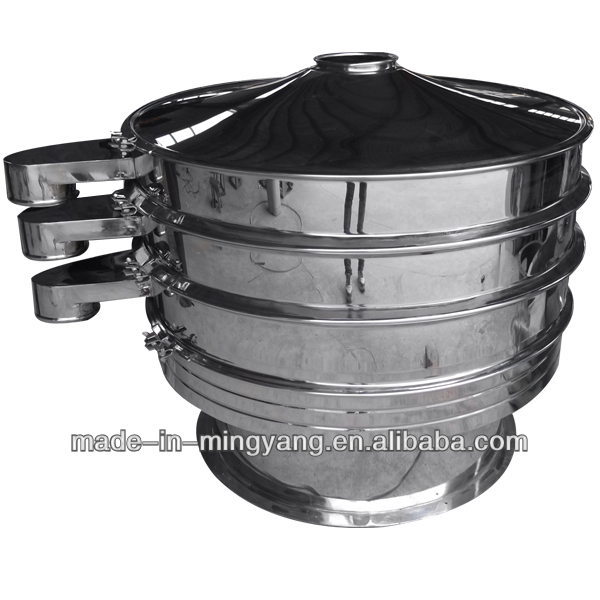

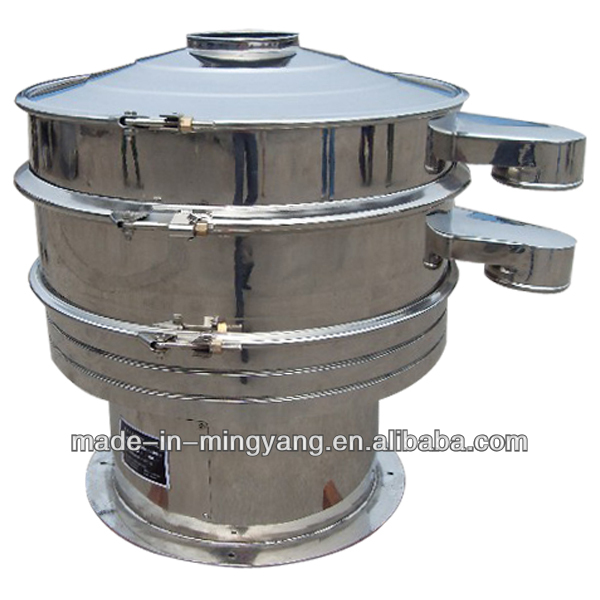

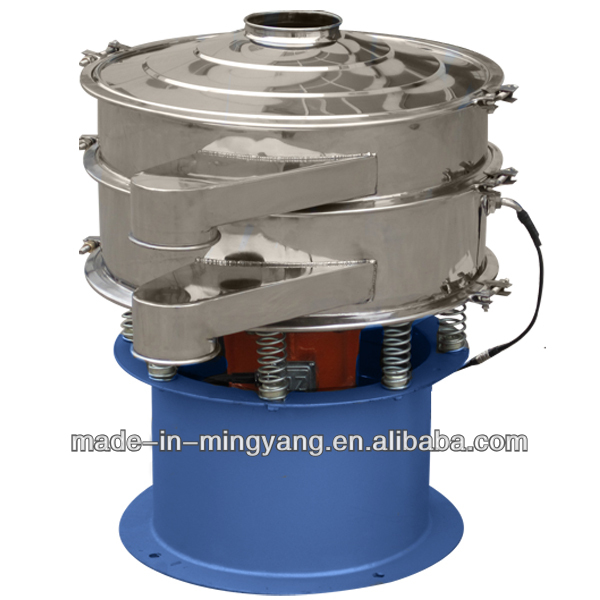

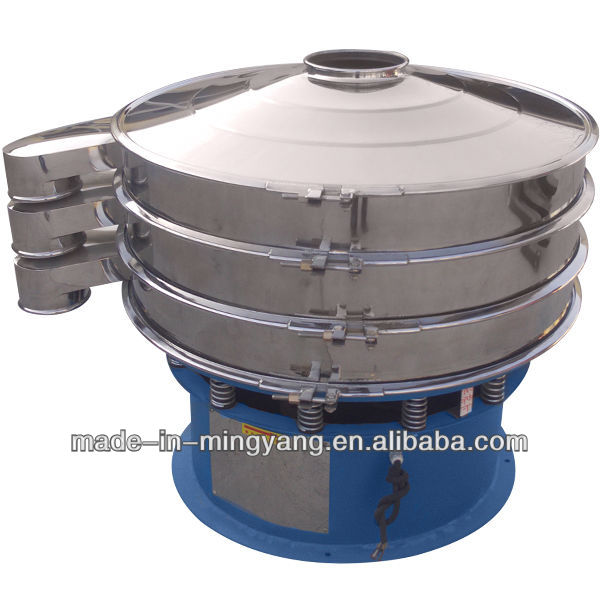

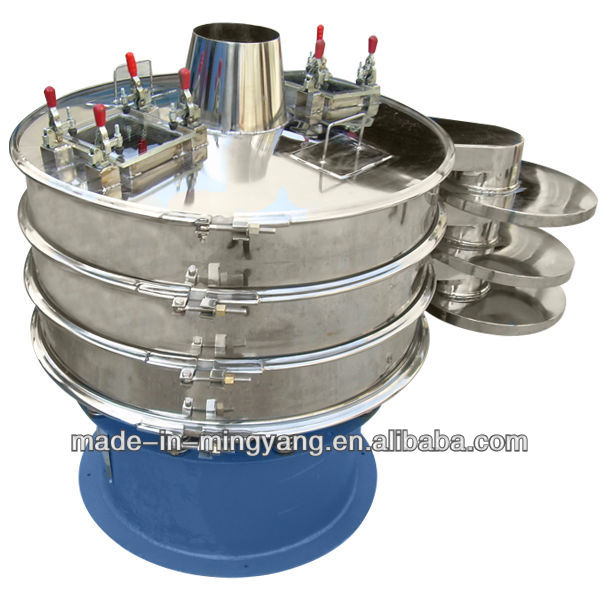

self-cleaning circular sieving machine for desiccated coconut made in MingYang,China MY price supplier

  Product description:
MY type rotary vibrating screen can be four-level screening,there are two sections in which the finished product area.The rotary vibrating screen to bring their own silos,it has a scalloped strobe in the lower part of the silos, coarse material segment has the chute and the coarse material can be sent directly to the transport machinery,it is convenient process layout.The circular rotary vibrating screen absorbs the advantages of similar products from overseas and domestic and after years of practice to develop new type screening equipment. It owns high screening rate,specially adapted sticky materials sieved,the mesh is not easy to clog.So it is widely used in sieving and Filtering of coal,sand,gravel and other materials,such as electronic industry,mining,metallurgy,chemical etc.
Working principle:
  MY series circular rotary vibrating screen is composed by the motor,reducer,Roller device, machine frame and other structures. The roller device is inclined arrangement.The motor is connected with the roller device through the reducer,to drive the roller device rotated around the axis.When the materials enter the roller device,because of the roller device’s tilt and rotation, to make the qualified materials’  discharged automatically through the outer circle of roller, unqualified materials will discharged through the extremity of roller.MY series rotary vibrating screen’s roller device use the sealing gland to sealed through the machine body , in order to prevent the dust to escape and dust pollution in the work process.When you change the mesh,you only to open the machine’s sealing gland and change it,convenient operation.
Features and Benefits:
1,Wide materials adaptability, simple and diverse feeding way.
2, High screening efficiency, strong capacity, and easy to large scale.
3,Low energy consumption, low noise.long service life,convenient maintenance.
Model description:

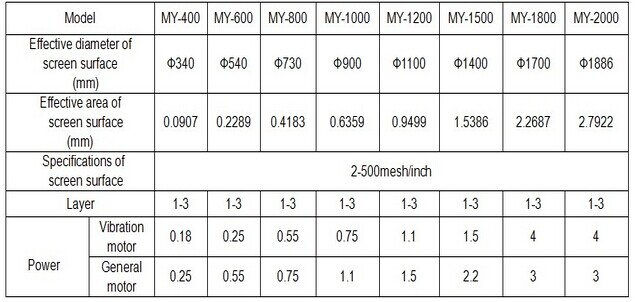

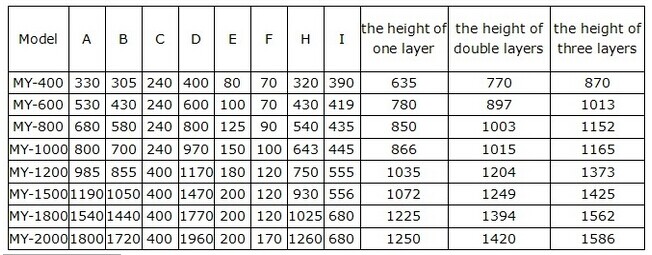

Technical parameters:

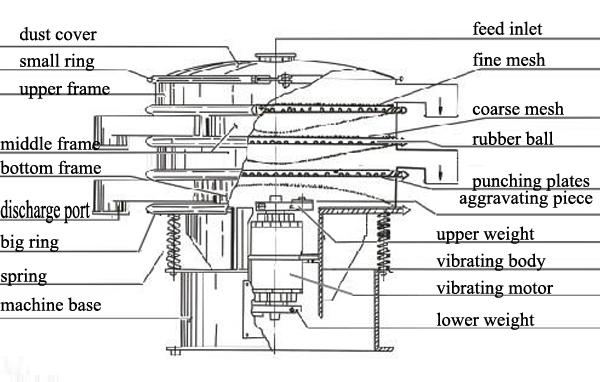

Overall drawing:

Precautions:

1, The considerations of the equipments’, installation and adjustment:
(1),The machine’s horizontal deviation should less than 1mm per one meter.
(2),All the structures of the equipment are not allowed set up other objects, so as to affect the strength and stiff, nes, s of the device.
(3),After installing,you should clear the installation tools,the foreign materials are not remained inside and outside the sieve tube.
 (4),All the fastening of the equipments should firm and reliable,have no the phenomenon of loosening,it should be installed and adjusted properly. After this further confirmation,then for no-load test.
2,No-load test:
(1),No excessive abnormal noise.
(2),It can operate 2 hours continuously,and the temperature raise of the bearing i, s not exceed 70°C.
(3),Pleas, e confirm t, he no-load test is normal , and you can make the load test.
3,Load test
(1),You should start the equipment,after operating normally and it can be loaded uniformly,until the full load.
(2),The equipment should not has drastic and significant striking noises.
(3),If the equipment operate 8 hours,the temperature of the bearings does not exceed 70°C.
(4),Please stop feeding before parking.
(5),If they are all meet the above conditions ,the equipment can be used in the product.
(6),It must not adjust the machine in operation.
4,Maintenance and Management
(1),The equipment should have a personal care management.
(2),Equipments’ maintenance and requirement must be carried out after parking.
(3),Equipment management and maintenance staff should regularly inspect the operation of the device.

  Xinxiang Mingyang Sieving Machinery Co., LTD was established in 2010,the headquarters is located in industrial park of Xinxiang City,Henan Province, has a modern production base 8000 square meters, with more than 150 employees,including 20 technicians.
    Our company is a professional manufacturer of fine material screening machinery in China. The main products are Rotary Vibrating Screen, Ultrasonic Vibrating Screen, Linear Vibrating Screen, Plane Whirl Screen, Filter Vibrating Screen and Test Sieve,etc.

Q:What factors I need to get a quotation?

A: Material bulk density, mesh size,deck number & ideal capacity for proper type, granularity distribution is recommended. product material requirement (carbon steel Q235A, stainless steel SUS304 or SUS316,etc.) Voltage & Frequency(Hz) is also needed for a precise quotation.

Q:What is the real delivery time of your factory?

A: 20 to 25 days for general series products, meanwhile, batches products & customized products would need 30 days to 60 days based on different situations.

Q: How do you ensure the quality of your products?

A: Generally, our equipments are the most durable type in the industry, this is also the feature of the label impression of DZJX for most of our customers at home or abroad.Skilled workers and strict quality control system can ensure every machine with best working performance.

Q: How do your after-sale service work if the product got damaged?

A: In the guarantee time 12 months, our general after-sale service is changing the damaged parts for the customer, but if the damage could be repaired by slight cost, we would wait for the customer's bill for the fix cost and refound this part of cost.(note: Vulnerable parts do not include.)

Q:What precautions should be taken before buying?

A: When you send us inquiry, please note us your screening material(mesh size ,specific gravity,bulk density,water content,etc.)and capacity(ton/kg per hour) ,I'll give you quotation sheet as soon as possible.
