Semi-auto multi-function chocolate bar flow packing machinery (DCTWB-250B 250D 250E 250S),China CHUANSONG MACHINE price supplier

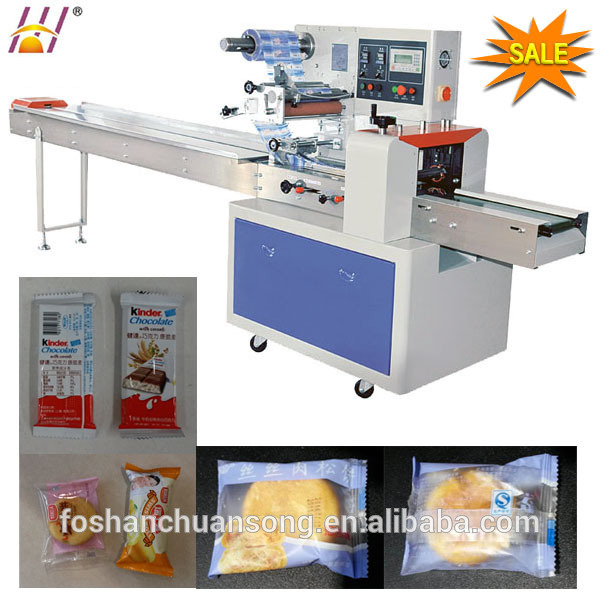

Semi-auto multi-function chocolate bar flow packing machinery (DCTWB-250B 250D 250E 250S)

FOB Price:Price can be negotiated

Production Capacity:50 Set/Sets per Month enlarging capaci

Payment Terms: US $3,900 - 5,900 / Set

Update Time:2014-09-27

Contact Supplier

Product Description

chocolate bar packing machine, superb quality & service
1.dual frequency conversion control
2,software to control the device

Multi-function horizontal chocolate bar flow packing machine

DCTWB-250B 250D 250E 250S
1.dual frequency conversion control
2,software to control the device

technical parameter:

Type	DCTWB-250B		DCTWB-250D	DCTWB-250E		DCTWB-250S
Film width	MAX.250mm				Max.180mm
Bag length	65-190 or 120-280	90-220mm			50-115mm		45-90mm
Bag width	30-110mm				30-80mm
Product height	Max.40mm	Max.55mm		Max.35mm
Film roll diameter	Max.320mm
Packaging rate	40-230bags/min				60-330bags/min
Power	220V 50/60Hz 2.4KW				220V 50/60Hz 2.8KW
Machine size	(L)3770(W)670(H)1450mm
Machine weight	800KG
remarks	Optional air filling device

Feactures

1. Dual frequency conversion control, bag length can be set and cut in one step, saving time and film.

2. Interface feactures easy and quick setting and operation.

3. Self failure diagnosis, clear failure display.

4. High sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra accuracy.

5. Temperature independent PID control, more suitable for packaging different materials.

6. Positioned stop function, without sticking knife or wasting film.

7. Simple driving system, realible working, convenient maintenance.

8. All controls realized through software, easy for function adjusting and technical upgrade.

Applications

Packaging various kinds of regular objects like biscuits, pies, chocolates, instant noodles, drugs, daily appliances, industrial parts, paper boxes, plates etc.

Please inform us the bag type,bag materail,bag size,and any picture of the your products.

Type:	Other	Condition:	New	Application:	Food,Beverage,Commodity,Medical,Chemical,Machinery & Hardware,Apparel,Textiles
Packaging Type:	Stand-up Pouch,Bags,Film,Pouch,Case	Packaging Material:	Plastic	Automatic Grade:	Automatic
Driven Type:	Electric	Voltage:	220V	Power:	2.4 & 2.8 KW
Place of Origin:	Guangdong China (Mainland)	Brand Name:	CHUANSONG MACHINE	Model Number:	DCTWB-250B 250D 250E 250S
Weight:	800kg	Dimension(LWH):	37706701450mm	Certification:	ce
After-sales Service Provided:	Engineers available to service machinery overseas	Color:	Red or blue	Product contacted material:	Stainless steel
Body machine material:	Carbon steel/stainless steel	Usage:	Outer	Optional parts:	Date printer/Labeller/Puncher"> Date printer/Labeller/Puncher
Mode:	DCTWB-250B 250D 250E 250S	Interface:	easy and quick to set and operate	About the machine:	simple driving system,
safety:	reliable working	packing:	wooden case
