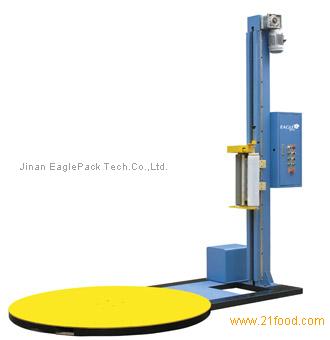

Semi-Auto Pallet wrapper ET150MR,China EaglePack price supplier

Technical Data
Max load size(mm): 1100mm x 1200mm (LXW)
Max load height(mm): 2400mm
Capacity: 20-30 Loads/hr based on load
Turntable diameter: 1650mm
Turntable Height: 78mm
Turntable weight capacity: 2000kg
Turntable speed: 3-12rpm
machine weight: 550kg
Electrics: 220V 50Hz 1Phase
Power: 1.2kw
Machine dimensions (mm): 2625(L)*1650(W)*2890(H)

Specification
Control Panel:
Parameter setting: Top/Bottom 1-3 wrap times, Up-down wrap times 1-3 adjustable
Manual buttons: Carriage up, Carriage down, Turntable Jog
Separtely Auto-Start/Pause button, Reset button, E/S button, Main switch
Controls:

OMRON PLC
Photo-eye pallet height sensor
Film carriage with Mechanical brake (variable film tension control )
3_12RPM variable turntable speed by inverter
Turntable soft start/soft stop, heavy duty chain drive
Variable carriage up/down speed
Safety stop to avoid foot crush
Hinged mast for easy handling
Front & rear Forklift transportable

Option
Ramp
Pneumatic top plate
Packing height: 2800mm
Turntable diameter: 1800mm, 2000mm
Turntable capacity: 2500kgs, 3000kgs
Machine Color
