Automatic Pillow Horizontal Flow Packing Machine:
A.Manufacturer.
B.Customizable.
C.Full Touch Screen Operation.

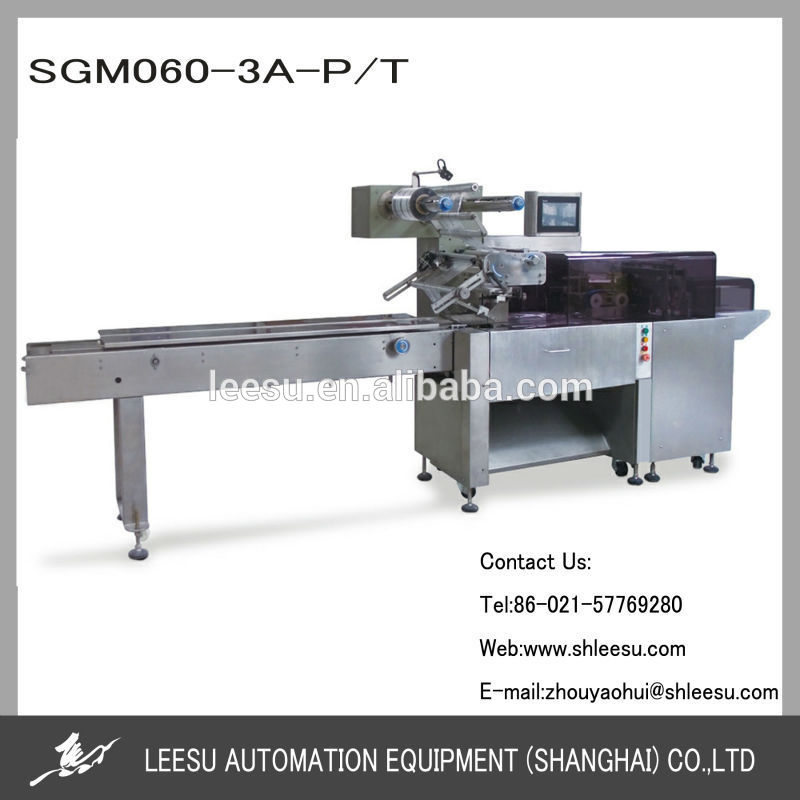

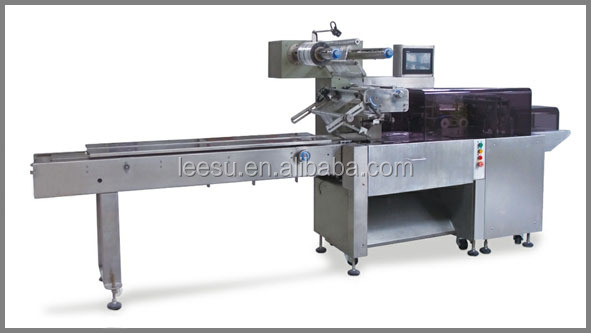

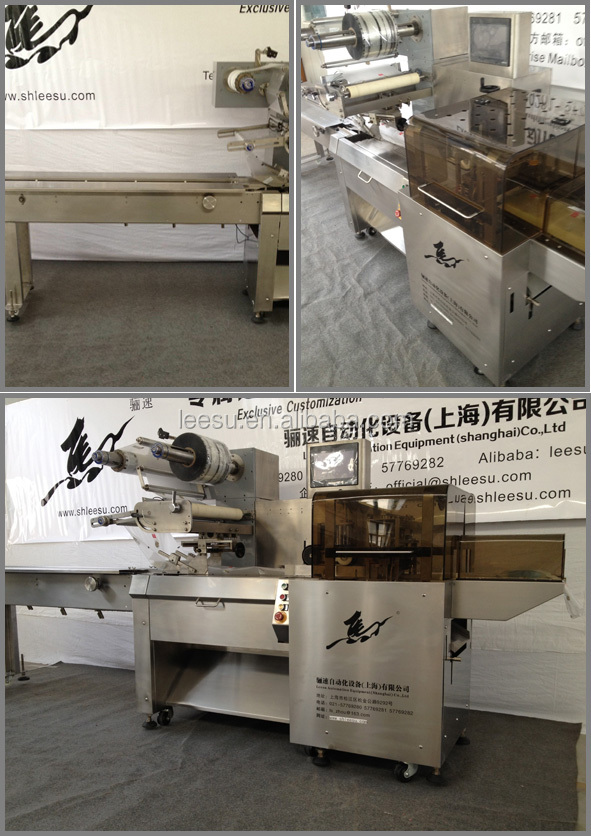

SGM060-3A-P/T Automatic Pillow Horizontal Flow chocolate bar Packing Machine

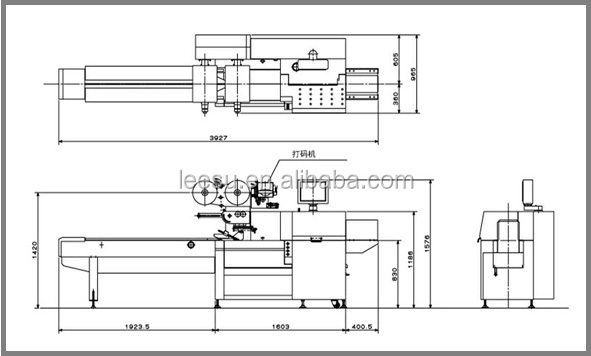

T hree View Drawing (Unit: mm)
High speed packaging of chocolate, big sausage, block-shaped instant noodles,
cake, etc.
Standard Specifications :
| Model |
SGM0 6 0-3A-P/T |
| Head sealing mode |
Rotary t ype |
| Packaging speed(Min to Max) |
10-240bags/min |
| Max packaging film width |
450mm(550mm) |
| Max packaging film diameter |
Ø 300(mm) |
| Max package bag cutting length |
600mm(2000mm) |
| Max packaged material height |
6 0mm |
| Max packaged material w i dth |
180mm(230mm) |
| Applicable heat sealing film type |
PE, OPP/CPP composite film, paper composite film, aluminum plating composite film , etc |
| Total power |
3.5KVA |
| Machine weight |
1000kg |
| Standard configuration: |
Two rolls film system |
| Air bag prevention system |
|
| Cutting error prevention system |
|
| Adjustable bag making device |
|
| Single belt conveyor line |
|
| 10 inch LCD touch screen |
|
| Film center control rack |
|
| 4 servo motor drives |
|
| Optional configuration: |
Nitrogen charging system |
| Exhaust air system |
|
| Various kinds of automatic feeding systems |
|
| Gussetinsert device |
|
| Perforating device |
|
| Coding machine |
|
| Labelling machine |
|
| Automatic film drawing system |
|
| Multilanguage display |
|
| Pusher conveyor line |
Basic Design Features:
1.Three servo drivers adopted in the whole machine, touch screen operation, the tension of each part is adjustable,efficient and remarkably stable.
2.Capable of packing various things, convenient to replace and easy to handle.Can login means of production of 30 kinds of products at most.
3.Flat belt automatic feeding system solves the object surface sag caused by the push rods feeding and realizes no air bag, saving you unnecessary packaging film materials waste.
4.Belt and push rods two kinds of full-automatic feeding system for you to choose, meeting requirements of packaging and feeding different items.
5.Compared to pillow rotary type Packaging Machine, the small pillow reciprocating type packaging machine’s advantage is that the incision of the product is more neat and smooth, and there is no problem of wrinkle or irregularity brought by the packaging of the pillow rotary type packaging machine.
6.Whole stainless steel protection, meet the high standard hygiene requirement .
Notes:

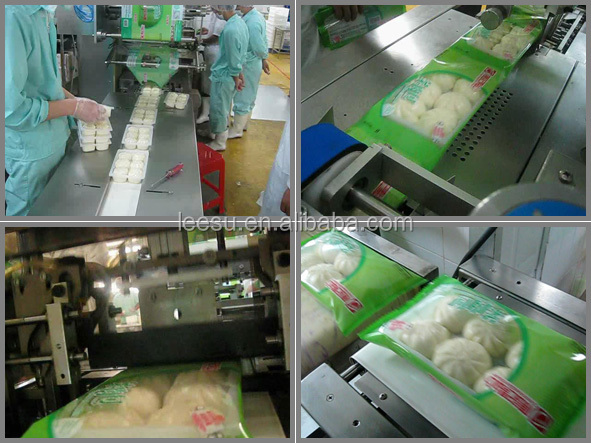

1.These are only some pictures of products the machine can package and packaging effects the machine can achieve.
2.The machine can package any solid objects with or without trays and other forms objects with trays within the limitted size.
3.The machine can achieve 3-side sealing pillow type bags,materials ,size and pattern of the bags can change.
Max package size: length: 6 00mm; width: 18 0mm; height: 6 0mm.
Leesu Automation Equipment(Shanghai) Co., Ltd. is a comprehensive high-tech
enterprise, specialized in designing, manufacturing and selling “ automatic
packaging equipments” , “ industrialized automated auxiliary projects ” , “ pipeline
systems projects”. Our products enjoy great popularity in both domestic and
overseas and we are a brand-name enterprise in the automatic packaging
machine industry. We are able to individually design scientific automatic packaging
produce projects according to the different requirements of the customers. Our
products are widely used in the trade of medicine, food, industrial supplies, etc.
Our company upholds the enterprise spirits of “honesty, diligence, harmony and
innovation.” We are willing to make greater contribution to the economic
construction and the well-being of all mankind.
In our company, we have a strict quality management system, advanced
equipments and outstanding engineering and technical staff (the technology
research and development team is leading by the returnees),in addition,we have
built good relations of cooperation with suppliers in domestic and overseas. The
automatic packaging equipments our company produced are in a leading level in
mainland China, equivalent to the European and American similar products. We will
offer you professional technical support and quality guarantee and superior service
in the shortest possible time. Our products have features of “stable property” ,
“ energy efficiency” and “ easy operation”, getting a favorable reception.
In economic globalization times, our company will constantly adopt new
technologies and develop new products, improving the influence of our company ,
creating an enterprise with the greatest innovative value.
We are very glad to make progress and create the brilliancy together with
customers. Sincerely welcome friends from all circles and merchants from China
and foreign countries to come to our company to have a visit, investigate and seek
long term cooperation and common development.
Honesty, Diligence, Harmony and Innovation.
Enterprise Philosophy:
Contribute to the society our responsibility, creat value for customers; provide opportunities for employees,innovate and develop for the enterprise.
Manufacture products with competitive advantage, satisfy the customers’ personalized needs.
| Type: |
Multi-Function Packaging Machine
|
Condition: |
New
|
Function: |
Filling,Wrapping,Sealing,Slitting
|
| Application: |
Food,Commodity,Medical,Chemical,Machinery & Hardware,Apparel,Textiles
|
Packaging Type: |
Bags,Film
|
Packaging Material: |
PE, OPP, CPP,composite film, paper composite film, aluminum plating c
|
| Automatic Grade: |
Automatic
|
Driven Type: |
Electric
|
Voltage: |
triphase 400V,380V,200V/ single phase 220V,200V,110V,100V
|
| Power: |
3.5KVA
|
Place of Origin: |
Shanghai China (Mainland)
|
Brand Name: |
Leesu
|
| Model Number: |
SGM060-3A-P/T
|
Dimension(L*W*H): |
3068 * 964 * 1566(mm)
|
After-sales Service Provided: |
Engineers available to service machinery overseas
|
| Usage: |
Chocolate, Big Sausage, Block-Shaped Instant Noodles, etc Packing
|
Screen: |
10 Inch Large Color Touch Screen
|
Operation: |
Full Touchscreen Operation
|
| Surface: |
Food Grade Stainless Steel
|
Packaging speed: |
10-240 Bags/Min
|
Head sealing mode: |
Rotation Type
|
| Color: |
Argentate
|
Life: |
Long Life
|
Weight: |
1000kg
|
| Quality: |
Prime
|
