Horizontal Flow Automatic Pillow Chewing Gum Packing Machine.
A.Mmanufacturer.
B.Customizable.
C.Touch screen operation.

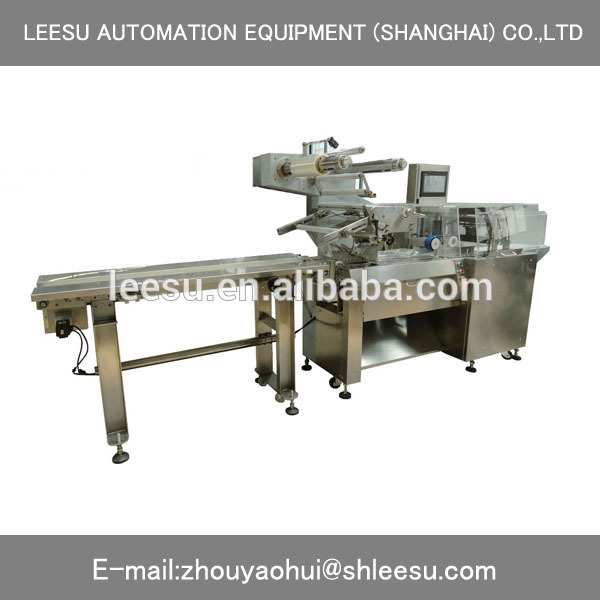

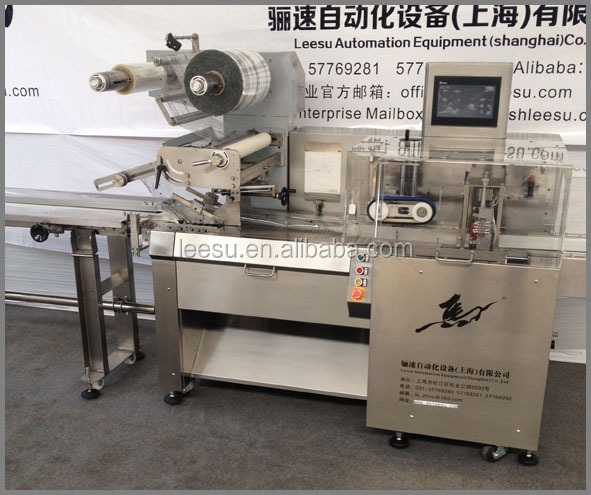

SGM080-3A-P/T Horizontal Flow Automatic Pillow
Chewing Gum Packing Machine

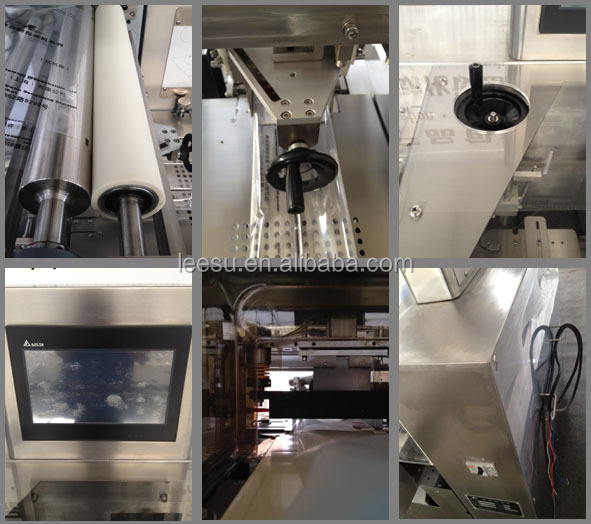

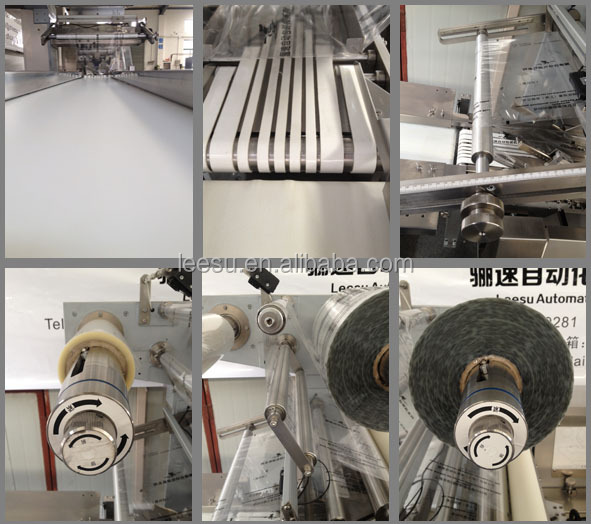

Details

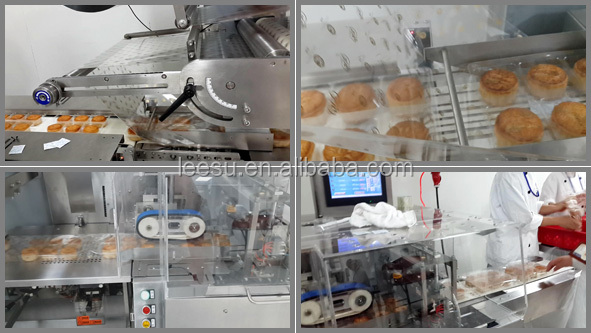

Packaging Process

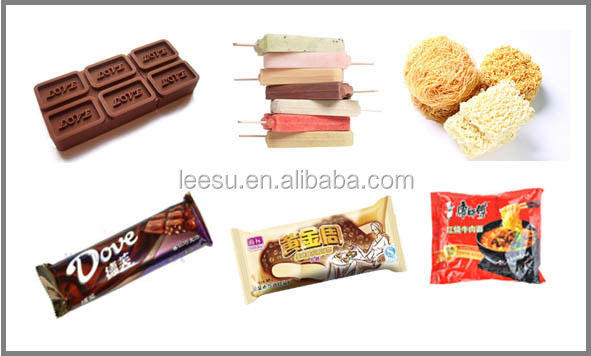

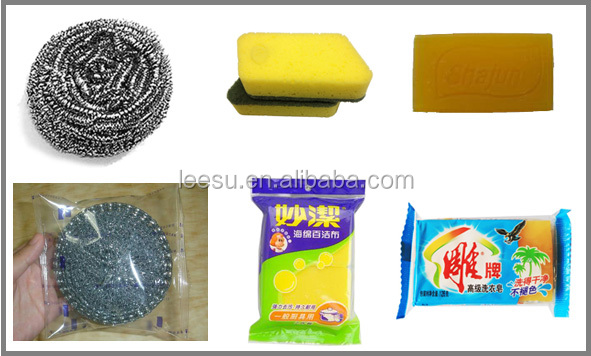

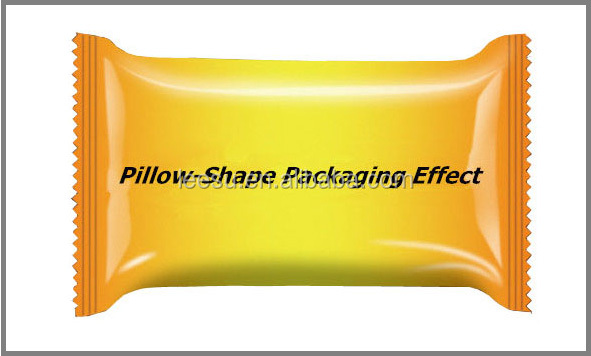

Packaging Effects
Notes:
1.These are only some pictures of products the machine can package and packaging effects it can achieve. 2.The machine can pack any solid objects with or without trays and other forms objects with trays
within the limitted size.
3.The machine can achieve 3-side sealing pillow bags, materials, size and patterns of the bag can change.
Max package size: length: 6 00mm; width: 18 0mm; height:8 0mm.
Front V iew And Top View Dimension Figures (Unit: mm)
Applications:
Biscuit,cheese ,bread, cake, candy,instant noodles,medicines,daily necessities and all kinds of objects with regular solid state.
After-sales Service Provided:
Engineers Are Available to Service Machinery Overseas.
Standard Specifications :
| Model |
SGM080-3A-P/T |
| Head sealing mode |
Reciprocating type |
| Packaging speed(Min to Max) |
10-120bags/min |
| Max packaging film width |
450mm(550mm) |
| Max packaging film diameter |
Ø 300(mm) |
| Max package bag cutting length |
600mm(2000mm) |
| Max packaged material height |
80mm |
| Max packaged material w i dth |
180mm(230mm) |
| Applicable heat sealing film type |
PE, OPP/CPP composite film, paper composite film, aluminum plating composite film , etc |
| Total power |
3.5KVA |
| Machine weight |
1000kg |
| Standard configuration |
• Two rolls film system |
| • Air bag prevention system |
|
| • Cutting error prevention system |
|
| • Adjustable bag making device |
|

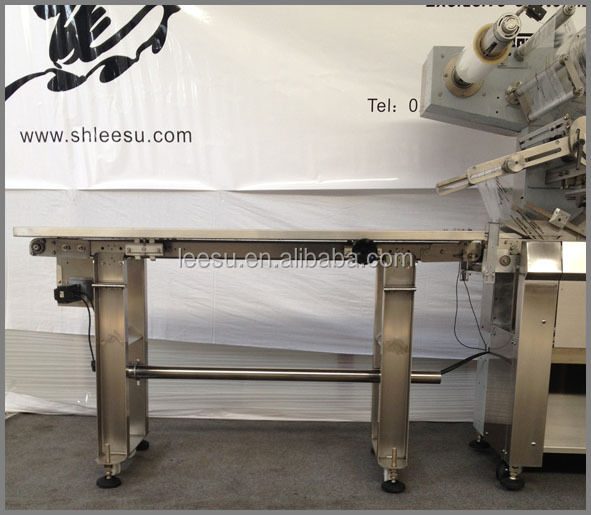

| • Single belt conveyor line |
|
| • 10 inch LCD touch screen |
|
| • Film center control rack |
|
| • 4 servo motor drives |
|
| Optional configuration |
• Nitrogen charging system |
| • Exhaust air system |
|
| • Various kinds of automatic feeding systems |
|
| • Gussetinsert device |
|
| • Perforating device |
|
| • Coding machine |
|
| • Labelling machine |
|
| • Automatic film drawing system |
|
| • Multilanguage display |
|
| • Pusher conveyor line |
Basic Design Features:
1.Full Servo Drive and Four Axes Motion Controller , High Efficiency and Stable Performance.
2."Air Bag" Function, Reduce Unnecessary Raw Materials Waste.
3."Cutting Error Prevention" System, a utomatically avoid the products filling in wrong places, reducing unnecessary waste of raw materials.
4.Touch Screen Operation , Easy to Handle.
Ex hibitions
Customers
Environmental wood case, waterproof cloth, anticollision crash pad and vacuum bag.
Tel: 86- 021-57769280, 86-021-57769281, 86-021-57769282, 86-13801906208.
Leesu Automation Equipment(Shanghai) Co., Ltd. is a comprehensive high tech enterprise,
specialized in designing, manufacturing and selling various automatic packaging equipments.
Our products are widely used in the trade of medicine, food, industrial supplies, etc.
| Type: |
Packaging Machine"> Multi-Function Packaging Machine
|
Condition: |
New
|
Function: |
Filling,Wrapping,Sealing,Slitting
|
| Application: |
Food,Commodity,Medical,Chemical,Machinery & Hardware,Apparel,Textiles
|
Packaging Type: |
Bags,Film
|
Packaging Material: |
Plastic,Paper
|
| Automatic Grade: |
Automatic
|
Driven Type: |
Electric
|
Voltage: |
triphase 400V,380V,200V/single phase 220V,200V,110V,100V
|
| Power: |
3.6KVA
|
Place of Origin: |
Shanghai China (Mainland)
|
Brand Name: |
Leesu
|
| Model Number: |
SGM080-3A-P/T
|
Dimension(L*W*H): |
3927*965*1576(mm)
|
After-sales Service Provided: |
Engineers available to service machinery overseas
|
| Name: |
Horizontal Flow Automatic Pillow Chewing Gum Packing Machine
|
Color: |
Argentate
|
Surface: |
Food Grade Stainless Steel
|
| Screen: |
10 inch large color touch screen
|
Weight: |
1000kg
|
Usage: |
Regular solid objests packaging
|
| Packaging speed: |
10-120 bags/min
|
Automaticity: |
Full Automatic
|
Quality: |
Prime
|
| Life: |
Long life
|
