Full Automatic Pillow Horizontal Flow Big Size Products Packing Machine:
A.Manufacturer
B.Customizable
C.Servo Driven

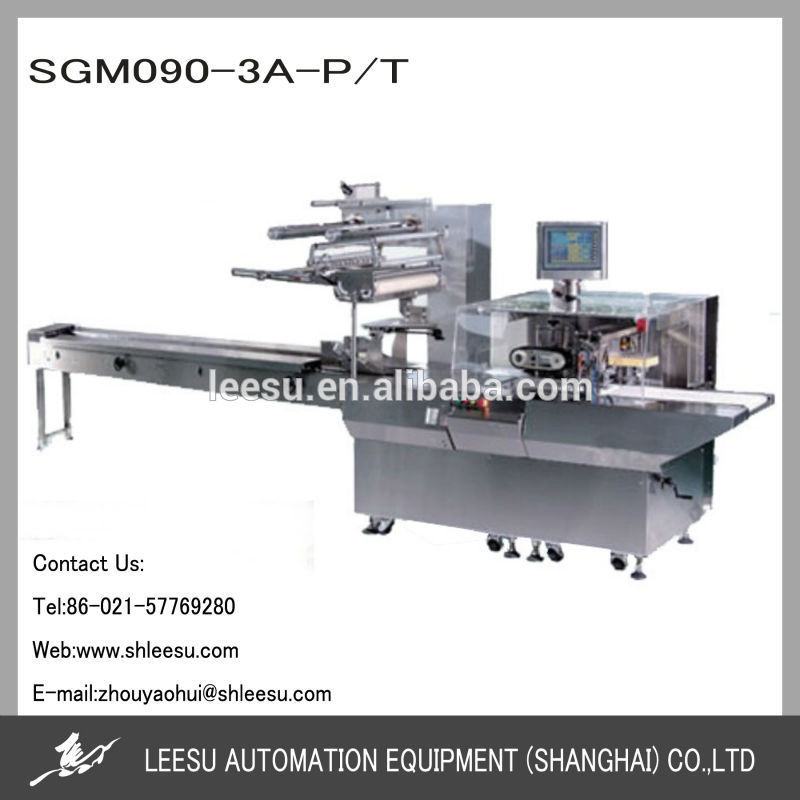

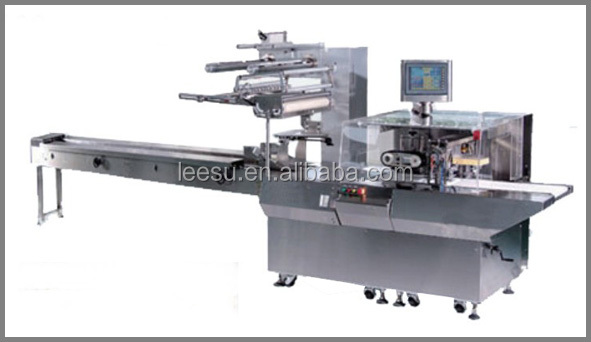

SGM090-3A-P/T Horizontal Flow Automatic Pillow chocolate bar Packing Machine

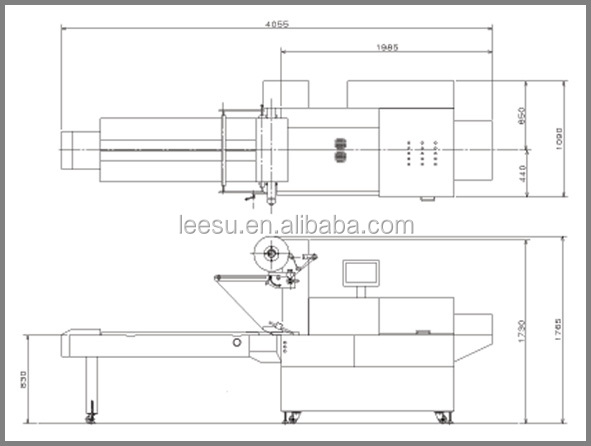

Front V iew And Top View Dimension Figures (Unit: mm)
After-sales Service Provided:
Engineers available to service machinery overseas.
Standard Specifications :
| Model |
SGM090-3A-P/T |
| Head sealing mode |
Reciprocating type |
| Packaging speed(Min to Max) |
10-80bags/min |
| Max packaging film width |
650mm |
| Max packaging film diameter |
Ø300mm |
| Max package bag cutting length |
100-600mm( 2000mm ) |
| Max packaged material height |
80mm |
| Max packaged material wedith |
300mm |
| Applicable heat sealing film type |
PE, OPP/CPP composite film, paper composite film, aluminum plating composite film , etc |
| Total power |
single-phase three-phase 6.0KVA , 50Hz , 60Hz |
| Machine weight |
1500kg |
| Standard configuration |
• Air bag prevention system |
| • Cutting error prevention system |
|
| • Single-lever belt conveyor line |
|
| • 10 inch LCD touch screen |
|
| • Film center control rack |
|
| • Adjustable bag making device |
|
| • Two rolls film system |
|
| • 4 servo motor drives |
|
| Optional configuration |
• Nitrogen charging system |
| • Exhaust air system |
|
| • Various kinds of automatic feeding systems |
|
| • Gussetinsert device |
|
| • Perforating device |
|
| • Coding machine |
|
| • Labelling machine |
|
| • Automatic film drawing system |
|
| • Multilanguage display |
|
| • Pusher conveyor line |
Basic Design Features:
1.Specialized for l arge products .
2.T hinnest packaging film thickness can reach to 20u m, lowering costs by a large margin.
3. R eciprocating h ead sealing mode , greatly reduces the rejection rate .
4. 10 inch LCD touch screen operation , making the man-machine conversation more visua l.
5. Capable of logining means of production of 90 kinds of products at most,
completely suitable for various kinds less quantitative production mode .
Notes:
1.These are only some pictures of products the machine can package and packaging effects
the machine can achieve.
2.The machine can package any solid objects with or without trays and other forms objects
with trays within the limitted size.
3.The machine can achieve 3-side sealing pillow type bags,materials,size and pattern of the
bags can change.
Tech support: 86- 021-57769280, 86-021-57769281, 86-021-57769282.
Leesu Automation Equipment(Shanghai) Co., Ltd. is a comprehensive high-tech
enterprise, specialized in designing, manufacturing and selling “ automatic packaging
equipments” , “ industrialized automated auxiliary projects ” , “ pipeline systems
projects”. Our products enjoy great popularity in both domestic and overseas and we
are a brand-name enterprise in the automatic packaging machine industry.
We are able to individually design scientific automatic packaging produce projects
according to the different requirements of the customers. Our products are widely
used in the trade of medicine, food, industrial supplies, etc. Our company upholds
the enterprise spirits of “honesty, diligence, harmony and innovation.” We are willing
to make greater contribution to the economic construction and the well-being
of all mankind.
In our company, we have a strict quality management system, advanced
equipments and outstanding engineering and technical staff (the technology
research and development team is leading by the returnees),in addition ,we have
built good relations of cooperation with suppliers in domestic and overseas. The
automatic packaging equipments our company produced are in a leading level in
mainland China, equivalent to the European and American similar products. We will
offer you professional technical support and quality guarantee and superior service
in the shortest possible time. Our products have features of “stable property” ,
“ energy efficiency” and “ easy operation”, getting a favorable reception. In economic
globalization times, our company will constantly adopt new technologies and develop
new products, improving the influence of our company ,creating an enterprise with
the greatest innovative value.
We are very glad to make progress and create the brilliancy together with
customers. Sincerely welcome friends from all circles and merchants from China
and foreign countries to come to our company to have a visit, investigate and seek
long term cooperation and common development.
| Type: |
Packaging Machine"> Multi-Function Packaging Machine
|
Condition: |
New
|
Function: |
Filling,Wrapping,Sealing,Slitting
|
| Application: |
Food,Commodity,Medical,Chemical,Machinery & Hardware,Apparel,Textiles
|
Packaging Type: |
Bags,Film
|
Packaging Material: |
Plastic,Paper
|
| Automatic Grade: |
Automatic
|
Driven Type: |
Electric
|
Voltage: |
triphase 400V,380V,200V/single phase 220V,200V,110V,100V
|
| Power: |
6.0KVA
|
Place of Origin: |
Shanghai China (Mainland)
|
Brand Name: |
Leesu
|
| Model Number: |
SGM090-3A-P/T
|
After-sales Service Provided: |
Engineers available to service machinery overseas
|
Name: |
Pillow Horizontal Flow Big Size Products Packing Machine
|
| Usage: |
Large regular solid objests packaging
|
Screen: |
10 inch large color touch screen
|
Surface: |
Food Grade Stainless Steel
|
| Packaging speed: |
10-80bags/min
|
Automaticity: |
Full automatic
|
Color: |
Argentate
|
| Life: |
Long life
|
Weight: |
1500kg
|
Quality: |
Prime
|
