single layer storage tank,China price supplier

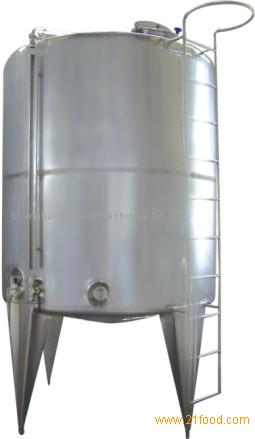

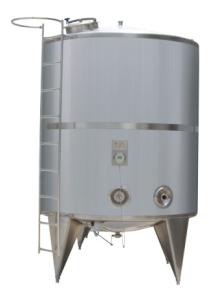

single layer storage tank

FOB Price:Price can be negotiated

Update Time:2012-06-19

Product Description

Lang="EN-US" style="font-family: 宋体; font-size: 10.5pt; mso-hansi-font-family: 'Times New Roman'; mso-bidi-font-family: 'Times New Roman'; mso-ansi-language: EN-US; mso-fareast-language: ZH-CN; mso-bidi-language: AR-SA"> Use: most applicable for storage and mixing of all kinds of liquid products in dairy products, juice, Beer and brew, chemistry, and biology engineering;

Structure feature: normal construction (single layer), cylindrical shape, triangle or cylinder legs.

Agitator types: without agitator; wing agitator; anchor type; propeller type; frame type;

Model	（V） Diameter（L）	（D） External diameter （ mm ）	（H） Height（mm）	（δ） mm	Diameter of inlet/outlet
BYDG-500	φ500	800	2140	δ3	φ38
BYDG-1	φ1000	1050	2380	δ3	φ38
BYDG-1.5	φ1500	1180	2550	δ3	φ38
BYDG-2	φ2000	1340	2760	δ3	φ38
BYDG-2.5	φ2500	1420	2940	δ3	φ38
BYDG-3	φ3000	1540	3050	δ3	φ38
BYDG-4	φ4000	1650	3200	δ3	φ38
BYDG-5	φ5000	1780	3250	δ3	φ38
BYDG-6	φ6000	1900	3350	δ3	φ38
BYDG-8	φ8000	2100	3800	δ4	φ65
BYDG-10	φ10000	2300	4050	δ4	φ65
BYDG-12	φ12000	2520	4450	δ4	φ65

a) one air tight side manway;

b) anti butterfly and dirt air vent;

c) One PT100 thermometer, temperature indication range 0~100 ℃ ;

d) CIP cleaning ball;

e) Product inlet/outlet;

f) Discharge valve with union;

g) Adjustable legs;

h) one sanitary sample valve;

Material: all material used is high quality sus304-2B stainless steel, shell thickness δ =3mm
