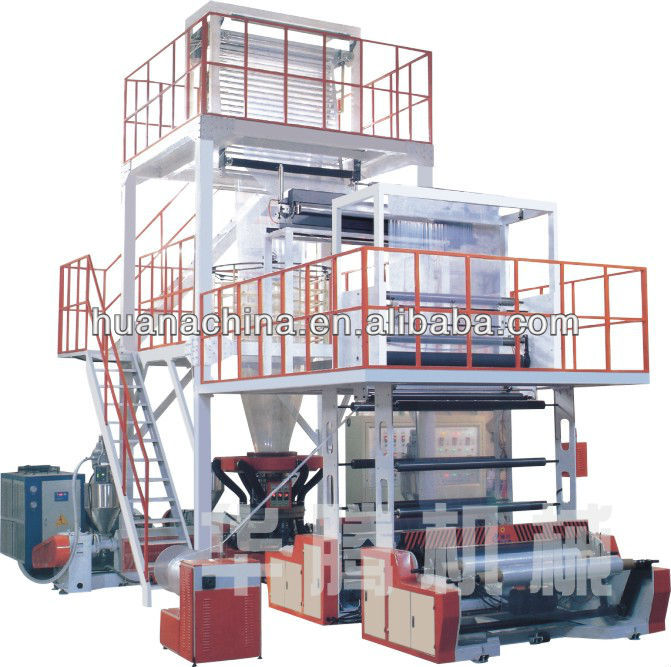

SJX3-FM1700 three-layer co-extruding plastic film blowing machine

FOB Price:Price can be negotiated

Production Capacity:30 Set/Sets per Month

Payment Terms: US $8,000 - 10,000 / Set

Update Time:2014-09-19

Contact Supplier

Product Description

SJX3-FM1700 three-layer co-extruding film Blowing Machine1.high quality
2.high production capacity
3.save electric
4.Equipped

SJX3-FM1700 three-layer co-extruding pastic film blowing machine

The lines are designed according to market need,which come up the similar machine in home,lt is optimum designed on the tronds of preference of analogous lines in foeign and home,the lines can be blown cotinuons 800/1500mm in fold width 0.08mm in the thickness packaging film has,good,insulation,forinstanceholdingtemperature,antihumid,antibreeze,anti-rain,anti-rost,insulation oxygen,oil resistive,and so used for examp le fresh fruits,meat-feeding,salt vagetables,fresh milk,drink

CHARACTERISTICS

1 Die head is laype spiral mandrel,continuous 360°rotation

2 Screen pack changer design is reliable,safe in operation and change the fitter screen easier.

3 Various functional parts may be installed to the lies,such as length counting rotting device,cooling water row pipe,film spreading roller,scrapcollecting device.

4 The screw is made of 38CRMOALA.

Main technical variables:

Model	SJX3-FM1100	SJX3-FM1350	SJX3-FM1700
screw diameter	Φ55×2 Φ60×1	Φ60×2 Φ65×1	Φ65×2 Φ70×1
screw ratio L/D	28:1	28:1	28:1
screw speed	15-150r/min	15-150r/min	15-150r/min
main motor power	15kw×2 18.5kw×1	18.5kw×2 22kw×1	22kw×2 30kw×1
extrusion output(single)	80kg/h	100kg/h	120kg/h
range of die	Φ150 Φ200	Φ180 Φ250×1	Φ250 Φ300×1
single-sided thickness of film	0.01-0.10mm	0.01-0.10mm	0.01-0.10mm
max folding width of film	1000mm	1200mm	1500mm
electric total capacity	76kw	88kw	102kw
overall dimension	6600×4100×5800	6800×4300×6000	7000×4800×7500
weight of machint	6.5T	7.5T	8.5T

the screw

loading picture

Place of Origin:	Zhejiang China (Mainland)	Brand Name:	huana	Model Number:	SJX3-FM1700
Type:	extruder machine	After-sales Service Provided:	Engineers available to service machinery overseas	film extruder machine:	2013 new

Company Profile

Name: Ruian Huana Machinery Co., Ltd.

Main Products: Film machine,Bag machine,Printing machine,Recycling machine

Business Type: Manufacturer

Total Employees: 11 - 50 People

Established Year: 2011

Main Markets: Africa, Domestic Market, Mid East, South America, Eastern Europe

Address: No.168.XiaChang industry zone Feiyun Town,Ruian,City

Ruian Huana Machinery Co., Ltd. is an enterprise specializing in the production of film blowing machines, non-woven bag machines, hot-cut bag machines and corollary equipment. Our factory is located in Feiyun Industrial Area, Ruian City, Wenzhou, with convenient transportation and beautiful environment.

Since the establishment of our factory, we have vigorously developed new products according to the principle of "market-oriented, technology-based". We have professional design and technical personnel. Till now, we have successfully developed non-woven bag machines and matching plastic machines. Our production lines are energy saving, with advanced technology, high atomization and high efficiency.

Due to excellent quality and a good business reputation, our products are deeply trusted by users and are well accepted by all customers. Our products have already been sold to a number of nationwide provinces and autonomous regions. In addition, our products are also exported to Russia, Southeast Asia, the Middle East, Africa and other countries and regions. more
