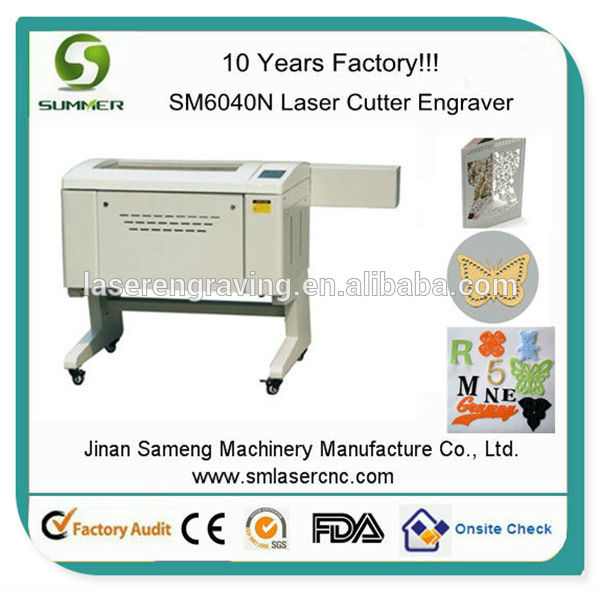

SM6040N 60W 80W with stepper motor honey comb worktable coconut shell laser cutting and engraving ma,China Sameng price supplier

 coconut shell laser cutting and engraving machine

The Newest Design, easy operation, 24*18inch table size. Electric lifting table with lifting height 15-20cm, rotary attachement can be installed for cylinder engraving. Low Cost, High performance

Brief introducti on

1) Adopt advance DSP digital control system, international standard laser power supply, integrated framework style, high stability and high speed, usb2.0 interface output can support offline working

2)Transmit files directly from Coreldraw, AutoCAD, Photoshop

3)The optimizing and decent new design, ensuring the processing speed up to 1200mm/s, low noise

4) Big power and high stability laser tube, imported lens and mirror, long lifespan, one step cutting can reach 30mm thicknss on acrylic

5)imported linear rail and high quality tapes for transmission, equiping speed-down structure, ensure high quality and high stability cutting

6)Automatic up-down table, rotary device, red dot position, vaccum system etc, are optional

Equipment Features:

1.With imported USA RF metal laser tube which is characterized by excellent beam quality, stable performance and long lifetime

2.With imported gilded lens with silicon base and two-layer focusing system, the beam is sharper and cutting force is stronger.

3.The XY axis adopts imported lienar guide rail and imported servo motor with speed-reducing driving system to make cutting stable and cutting surface smooth.

4.water cooling system with self-protective function assures stable continuous running.

5. Window interface, support PLT, BMP, DXF, DST format file.

Optional Device:

Rotary attachement

Motorized up-down table

Red-light position

Vacuum table

DSP off-line operation with usb flash

Application:

1) Advertising industry:
    a) Double-colored board carving
    b) Organic glass carving and cutting
    c) Label carving

    d) Crystal cup
    e) Warranty signed carving
2) Carved gifts and crafts industry:
    a) Wood
    b) Bamboo

    c) Ivory
    d) Bone
    e) Leather
    f) Marble
3) Packing and printing industry:
    a) Rubbery board
    b) Plastic board
    c) Double-layered board
    d) Model cutting board
4) Leather clothing industry:
    a) Complex characters and pattern carving
    b) Cutting on hypoderm
    c) Synthetic leather
    d) Man-made leather
    e) Cloth
5) Architectural model industry:
    a) ABS board cutting
    b) Model carving
6) Production totem industry:
    a) Appliance signs
    b) Anti-fake commodities marking

Warranty and Service:

Laser tube 2400 hours' working time

Guarantee: One year from the date of commissioning

24-hour technical support by email or calling

User-friendly English manual for machine using and maintaining

samples:

How is the packing?

 Water-proof plastic film package with foam protection in each corner

Solid Seaworthy Wood Box Package with Steel Belt

Save space as much as possible for container loading

 Sameng Laser Machine Package:

Sameng Laser Machine Spare Parts:

FAQS:

what are the consumable parts?

Laser machine is a high-tech device. It's not necessary to change all parts. You only have to change Laser Tube, Focusing Lens and Reflective Mirror usually. As for life time, it's up to your job from half an year to 3 years for Laser Tube while lens and mirror is seldom to change with good quality and maintenance.

what software do we use? Is it difficult?

We use lasercut5.3 software, it’s very easy to learn, and it is compatible with AutoCAD, Coreldraw, Photoshop etc CAD&CAM software. Moreover, we will provide you with detailed English Manual, Maintenance Manual and Teaching Video.

can i change 80w laesr tube if i bought 60w orginally?

The larger the power is, the thicker it can cut. Therefore, you have to tell us your max. cutting thickness to choose proper power. However, it's possible to change it. You have to change laser tube together with power supply box.

do we have any certificate? how about warranty?

All machines are CE approved. No problem for FDA, SASO, CIQ. Depends on model, laser machine has 1 year wararnty.

how long does it take for production?

  These Laser Engraving Cutting Machine will be manufactured once we got confirmation from your side, it will be finished within 10-15 days.

Mail us now, you will get 3% discount off
