Small bottle blow molding machine,China Fule price supplier

Specification:
Main machine + Infrared heater
Product Volume 0.5-2.5L
Blowing Press ≤3.0Mpa
Productive Capacity 800-1200pcs/hr
Power 9KW
Packing Wooden Case
Wastage Rate Within 0.2%
The process of producing bottles:
1. Revolving Infrared heater: Preforms should be heated by the revolving infrared heater until they become soft and elastic
2. Blowing Part: Preforms should be put into bottle mould and then to be blown into the designed bottles.

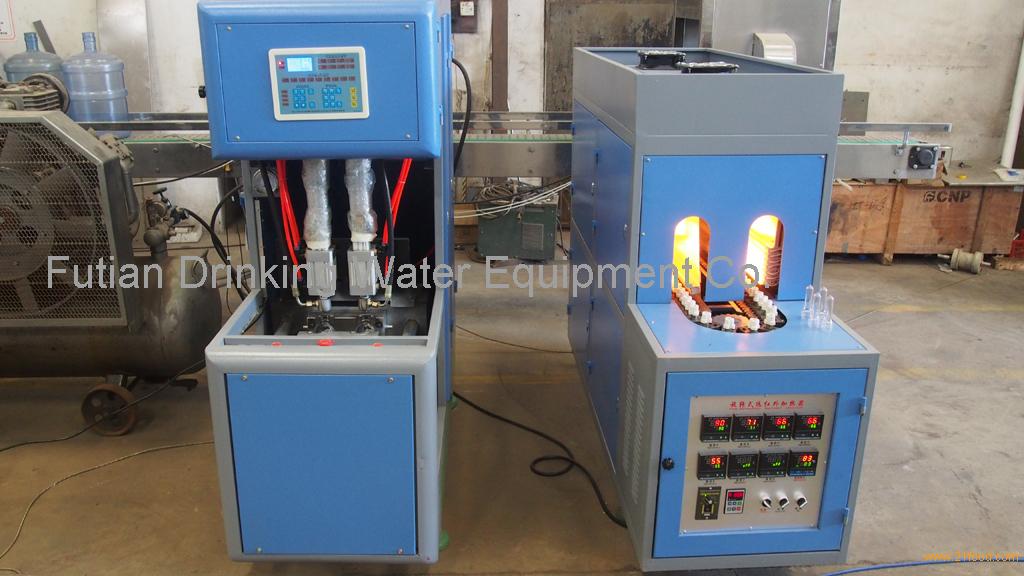

3. A complete production line of semi-automatic blow molding machine:
1.Main Machine 2.Infrared heater 3. Air Cooling Dryer 4.Two Air Filters
5.Mould 6.High Pressure Air Compressor
4. Spare Parts: (For free)
1. Stroke Switch 1pc 2. Two-position four-way electromagnetic valve 1pc
3. Adjustment device 1pc 4. Two-position four-way electromagnetic valve 1pc
5. Time delay 1pc 6. Startup switch(red&blue 1pc)
7. Manual 1pc 8. Double way controlled silicon
9. Hot delay 1pc 10. Tools
11. Seals 2pcs 12. 25A single section turnoff device
13. Voltage regulation 1pc 14. Adjusting mould spanner
15. Indicator light 1pcs 16. Section switch
17. Cylinder repair group 10pcs
