Small Size Fish Meal Plant,China SSS price supplier

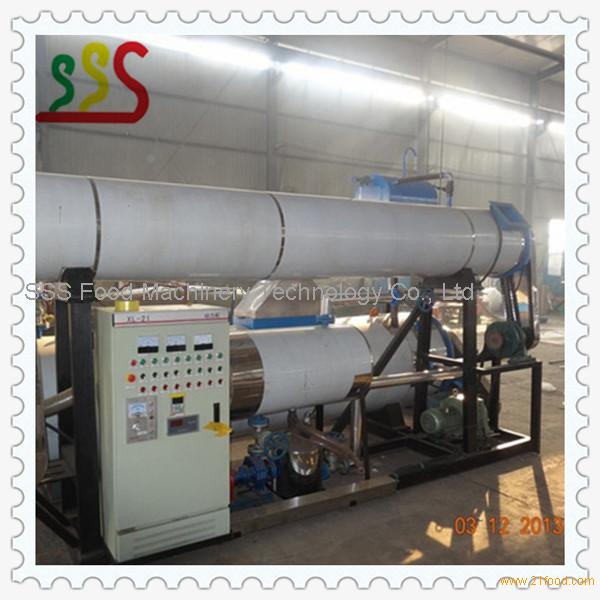

Small Size Fish Meal Plant

FOB Price:Price can be negotiated

Production Capacity:50 Sets per Month

Payment Terms: US $ 21500 / Set,FOB SHANGHAI

Update Time:2024-11-11

Contact Supplier

Product Description

1. About Machine
This small capacity fish meal Machine is specially design and manufacture for our customers who want to process leftovers like fish head, fish Sausages and offals, also can deal with small whole fresh fish, the whole production line has a compact structure, good-looking appearance, easy operate and good performance.

The final meal can be easy digestion, nutrition will be 90% better absorbed, very good choice for many differnet animal feed!

2.Specification:
Raw material: Fresh fish, fish head, fish bones, fish offals, etc.
Final product: Skimmed fish meal
Capacity of raw fish: 300kg/hour
Capacity of fish meal: 70-80kg/hour
Moisture of final product: Less than 12%
Note: Usually the output is based on raw material type and quality

3.Advantage:
1) Suitable for small capacity requested.
2) Made of fine stainless steel.
3) High efficiency and energy saving.
4) Final meal can be better absorbed.
5) The pellets no pollution and easy for working members to observe.
6) Novel design, unique, and simple structure, easy to install and easy to unload, Friendly to operate.

4. Porducts list

item	description	dimension	details
1	Screw Conveyor	φ170×4000	equipped with reducer 1 set, made of SUS304
2	cooker	φ377×3500	· material of outer heat preservation made of SUS430, thickness: 0.7mm; · inner and outer cylinder made of Q235B; · driving power: 1.5kw (speed adjusted by magnetization).
3	screw press	φ219×1000	· outer cover made of SUS430, thickness 0.7 mm; · seive mesh applied SUS304; · driving power: 1.5kw.
4	dryer	φ820×3500	· inner and outer cylinder made of Q235B; · preservation made of SUS43O, thickness 0.7mm; · driving power: 4kw, V=30r/min;
5	heat contacting oil pump		driving power : 1.5kw
6	electric control box		electric control box 1 set

Small Size Fish Meal Plant

Other Products

Automatic Conveyor Fry Machine

Mini Fish meal plant

Small Size Fish Meal Plant

fish cooker in fish meal production line
