Soybean grade square vibrating sieve,China Dahan price supplier

 About the Dahan Linear Vibrating Screen
My factory production DZSF series linear sieve is associated with China institute of mining design and manufacturing.Over the years I plant engineering and technical personnel widely listen to user feedback information,continuously improve product design,many times to optimize technical parameters.The outstanding product quality and performance has won the user's affirmation and praise.

Structure descriptions

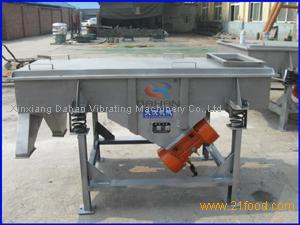

This machine is mainly composed of screen box,frame,screen mesh,vibration motor,motor base,damping spring,scaffold,etc.
1.Screen box: By a number of different thickness plates welded together,have a certain strength and  stiffness,is the main part of the screen.
2.Frame: Made of pine or smaller deformation of wood and mainly used to maintain smooth,achieve normal screening.
3.Screen mesh: Several kinds of screen mesh,for example,mild steel,brass,bronze,stainless steel wire,etc.
4.Vibration motor:(the use and maintenance method as shown in the vibration motor operating instructions).
5.Motor base: Before installing vibration motor, using connection screws must be tightened.Especially the new screen,three days before the trial must be repeated fastening,loose lest cause an accident.
6.Damping spring: To prevent vibration to the ground,at the same time support the full weight of screen box.When installation,the spring must be vertical with the ground.
7.Tripod: Is composed of four pillars and two channels,support the screen box,pillar when installation must be vertical with the ground,under the two pillars of channel steel should be parallel to each other.

Production detail
