SP2000 packaging machine,China SOONPACK price supplier

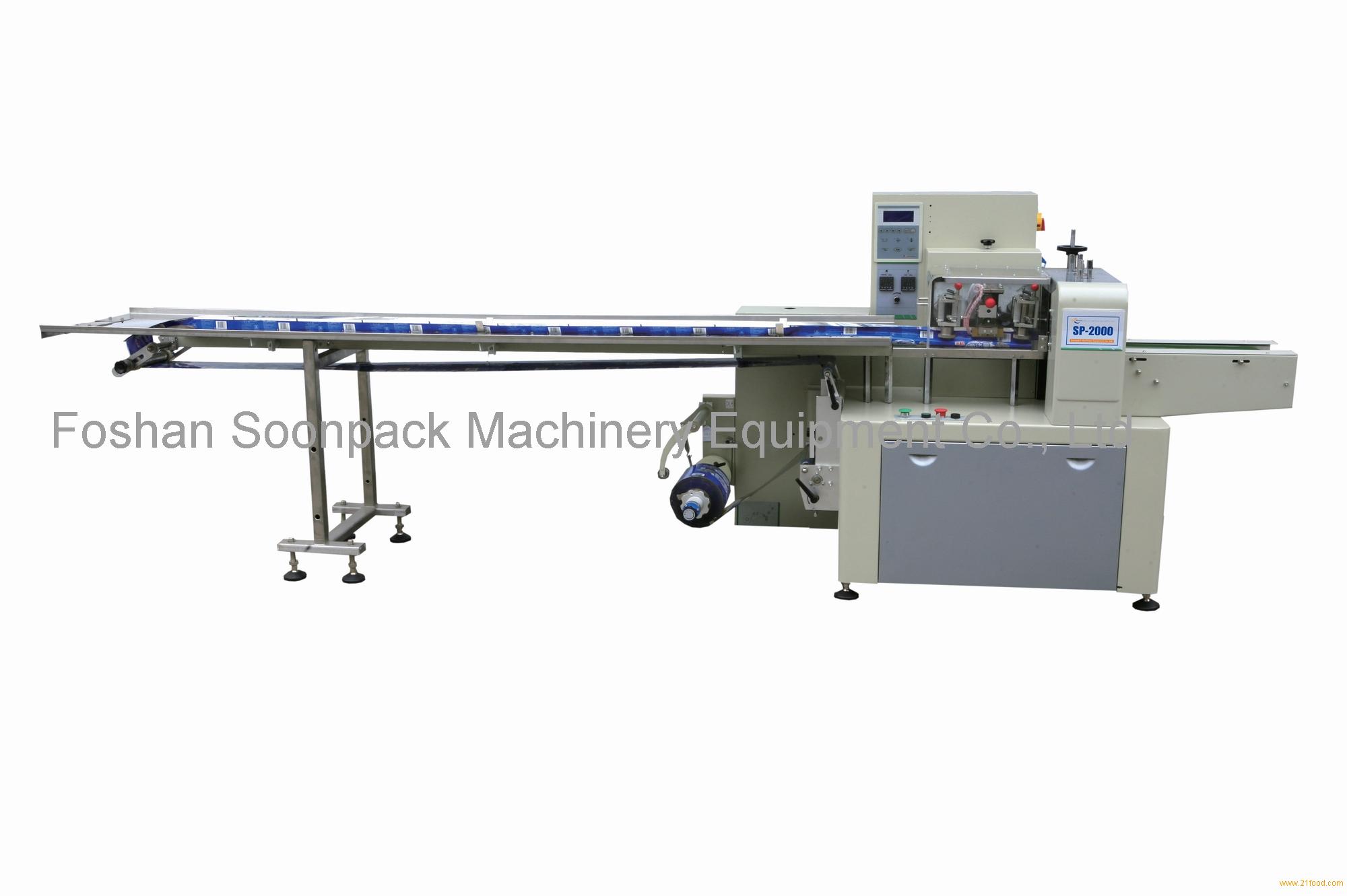

SP2000 packaging machine

FOB Price:Price can be negotiated

Production Capacity:1-100

Payment Terms: L/C, T/T

Update Time:2018-05-12

Contact Supplier

Product Description

Main Functions & Characters:

1.The bag length can be set automatically during operation, doesn’t need manual inputing.

2.Simplified mechanic gearing, easy to maintain, less vibration, less wear, and long life.

3.The main contol circuit takes the single chip developed by our own company, digital screen display, easy and convenient for operation.

4. Packing speed and bag length is controlled by double frequency inverter, stepless speed shift, more bigger bagging scope, It can match well with former production line.

5.Highly sensitive photocell sensor can follow automatically and accurrately.

6.Independent temperature control for each sealer to make the beautiful and tight sealing, suitable for a wide variety packing material.

7. Date coding, Air flushing,Liquid spraying, Film automatic splicing functions are available for choice.

Application:

Mainly used for packing various kinds of irregular, sticky or bulky products, such as tissue with fork&knife, fingure biscuit, egg roll, sausage, dates, etc.,

Technical parameters:

Type		SP2000
Packing speed (packs/min)		35-180 bags/min
Width of film (mm)		90-220
Bagging size (mm)	L	60-200
	W	30-100
	H	5~35
Total power (Kw)		3
Main motor power (Kw)		0.4+0.2
Heating power (Kw)		2.4
Net weight (Kg)		550
Outer dimension (LxWxH) (mm)		4000x920x1500
Type of supply		220V, 50HZ/60HZ, 1PH
Packing material allowed		OPP/CPP,PT/PE,KOP/CPP,PP,ALU-coated film

Main Electric parts:

Parts Name	Brand Name	Origin
PCB	Guangyu	China
Touch screen	Weinview	Taiwan
Inverter	Schneider	France
Relay	Omron	Japan
Photocell	Baideli	China
24V power supply	Schneider	France
Temperature controller	Yuyao	China
Solid relay	Crydom	China
Master motor	V.T.V	China
Motor encoder	Omron/Hengstler	Japan/Germany

Free Spare parts list:

Ser.No	Name	Qty
1	Hexagon key	1set
2	Screwdriver	2pcs
3	Spanner	1pc
4	Power cord	1pc
5	Heating tube 9.4X100	1pc
6	Heating tube 9.4X110	1pc
7	Upper knife (zigzag)	1pc
8	Lower knife	1pc
