SP580S servo packing machine,China SOONPACK price supplier

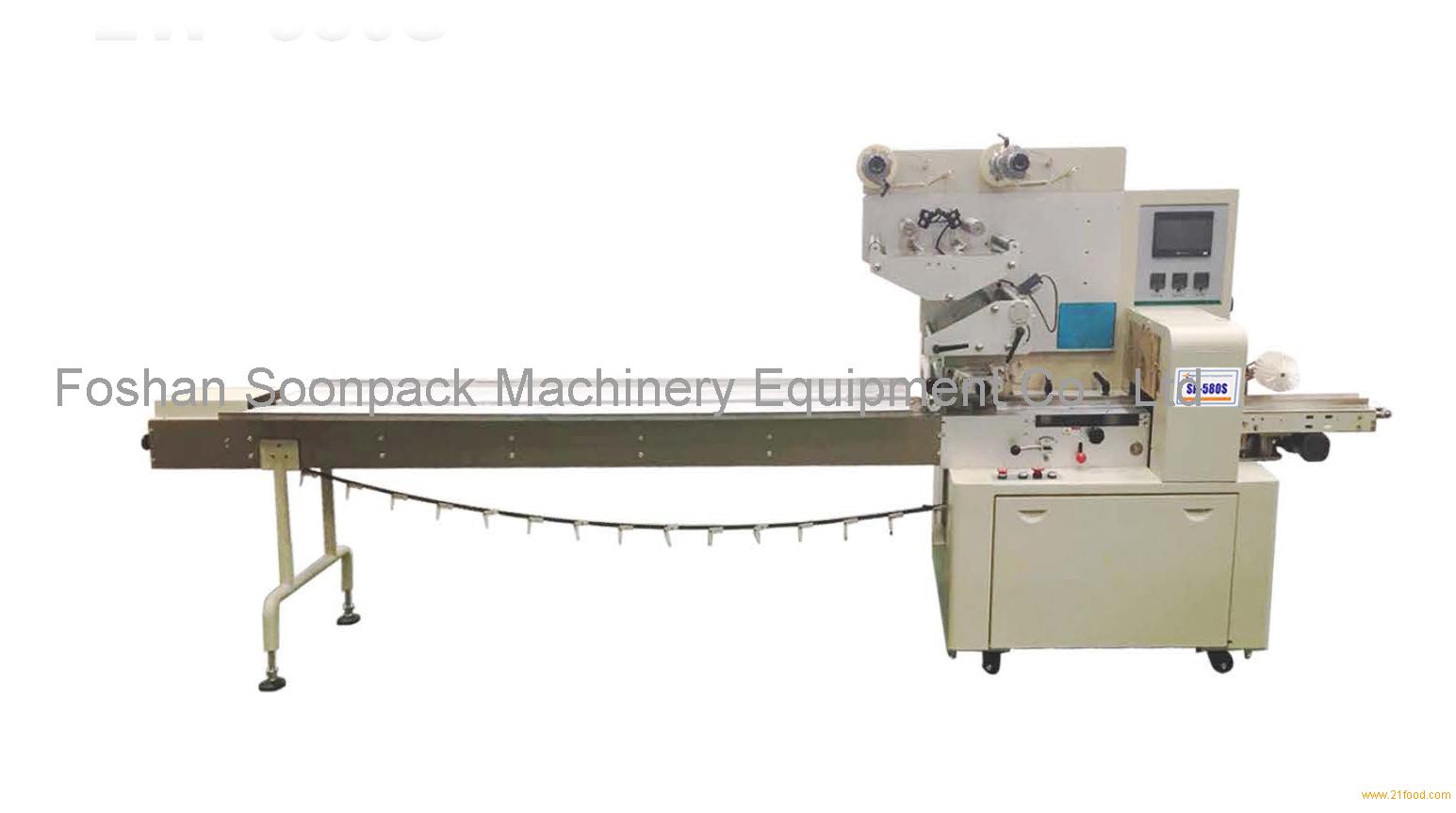

SP580S servo packing machine

FOB Price:Price can be negotiated

Production Capacity:100set/month

Payment Terms: T/T, L/C

Update Time:2018-05-12

Contact Supplier

Product Description

Main Functions & Characters:

1. Bag length can be set automatically during operation, doesn’t need to input length manually.

2. Simplified mechanic gearing,end seal servo control, film and infeed chains are controled separately by two frequency inverters, easy to maintain,less vibration,less wear,and long life.

3. The main contol circuit takes the single chip developed by our own company,digital screen display, easy and convenient for operation.

4. Packing speed and bag length is controled by one servo pluse two frequency inverters, maxium bag length couble be 1000mm, It can match well with former production line.

5. Highly sensitive photocell sensor can follow automatically and accurrately.

6. Independent temperature control for each sealer to make the beautiful and tight sealing, fin seal unit adopts heating&sealing integrated structure ,suitable for a wide variety packing material,

7. Film automatic centering and double film carrier device are for standard configuration.

8. Memory function can save and recall parameters fast for packing different size products.

9．Date coding, air flushig,liquid spraying device are available for choice.

Application:

Mainly used for packing various regular and solid products such as biscuits, moon-cake,bread,instant noodles, sweet, medicine,daily necessities,hardwares,etc.,

Technical parameters:

Type		SP580S servo model
Packing speed (packs/min)		45-500 bags/min
Width of film (mm)		80-300
Bagging size (mm)	L	80-500
	W	35-140
	H	5~40
Total power (Kw)		8.82
Main motor power (Kw)		3
Heating power (Kw)		5.82
Net weight (Kg)		840
Outer dimension (LxWxH) (mm)		3920x900x1650
Type of supply		220V, 50HZ/60HZ, 1PH
Packing material allowed		OPP/CPP,PT/PE,KOP/CPP,PP,ALU-coated film

Main Electric parts:

Parts Name	Brand Name	Origin
PCB	Guangyu	China
Touch screen	Weinview	Taiwan
Inverter	Schneider	France
Relay	Omron	Japan
Photocell	Baideli	China
24V power supply	Schneider	France
Temperature controller	Yuyao	China
Solid relay	Crydom	China
Master motor	V.T.V	China
Servo motor	Delta	Taiwan
Motor encoder	Omron/Hengstler	Japan/Germany

Free Spare parts list:

Ser.No	Name	Qty
1	Hexagon key	1set
2	Screwdriver	2pcs
3	Spanner	1pc
4	Power cord	1pc
5	Heating tube 9.4X100	1pc
6	Heating tube 9.4X180	1pc
7	Upper knife (zigzag)	1pc
8	Lower knife	1pc
