Specially-Designed Cocoa Powder Packing Machine,China HONOR PACK price supplier

Specially-Designed Cocoa Powder Packing Machine

FOB Price:Price can be negotiated

Production Capacity:50 Unit/Units per Month Powder Packing

Payment Terms: US $2,000 - 40,000 / Unit

Update Time:2021-03-21

Contact Supplier

Product Description

Packing Machine
1.Auto-packing system
2.Form Fill and Seal
3.Output counting
4.Save Labor Cost

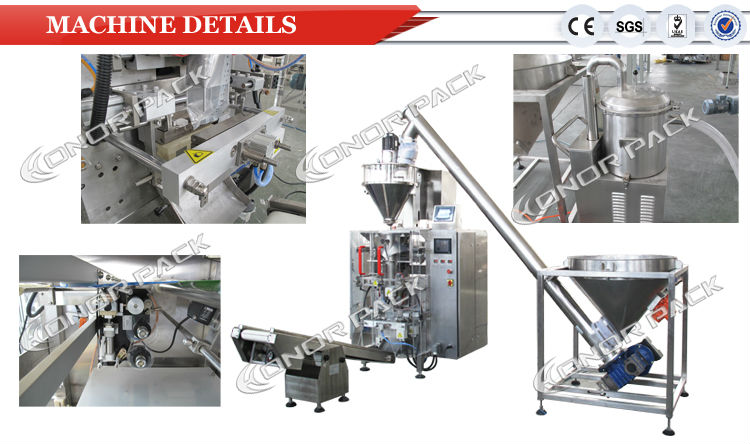

Specially-Designed COCOA POWDER Packing Machine

Applications:

Equipped with different dosing systems, the VFZ series packing machine could automatically finish the packaging processes of various granular, powdery, liquid food products, from product filling, plastic bag forming, date printing.to finished bag output.

Main Features:

Remote Adjust Film Align
PLC Control with Touch-Screen HMI
Servo Technology with High Performance
Simple and Fast Bag Size Changeover without Tools
Heavy-Duty Jaw Assembly For Cushioning Shock and Reducing Noise

Technical Specification:

Model	VFZ420	VFZ540	VFZ730				VFZ1100
Bag type	Pillow type bag; Gusseted bag /Block bottom bag(Option)
Operation Mode	Intermittent
Speed	Up to70 bags/min		20 to 55bags/min			5 to 20bags/min
Bag Length (single stroke)	20 to 280mm (0.8 to 11’’)	50 to 340mm (2.0 to 13.4’’)	50 to 460mm (1.9’’ to 18’’)			100 to 480mm (3.9’’ to 19’’)
Bag Width	40 to 200mm (1.6 to 7.9’’)	80 to 260mm (3.1 to 10.3’’)	80 to 350mm (3.1’’ to 13.8’’)			120 to 540mm (4.7’’ to 21.2’’)
Packing Weight	10g to 1000g	200g to 2000g	500g to 3500g			3000g to 10kg
Reel Film Width	≤420mm (16.5’’)	≤540mm (21.2’’)	≤730mm (28.7’’)			≤1100mm (43.3’’)
Reel Outer Dia.	400mm (15.7’’)	400mm (15.7’’)	500mm (19.7’’)			600mm (23.6’’)
Reel Inner Dia.	75mm (2.9’’)
Film thickness	0.04-0.12mm (40-120mic.)
Voltage	AC220V/50Hz, 1phase or Per customer specification
Power Consumption	3KW				4.5KW
Compressed Air Requirement	0.6 MPa0.36 M3/min				0.6MPa0.45 M3/min
Machine Weight	600Kg	800Kg		1000Kg	1200Kg

We Provide You With Sincerely Service, if you have interest,contact us NOW!!!

Telephone: 86-577-88560711
Mobile Phone: 86-015355929520
Fax Number: 86-577-88560133
Website On Alibaba.com: http://chpacking.en.alibaba.com/

Type:	Other	Condition:	New	Application:	Food
Packaging Type:	Pouch	Packaging Material:	Plastic	Automatic Grade:	Automatic
Driven Type:	Pneumatic	Voltage:	220V/50HZ,Single Phase	Power:	3KW
Place of Origin:	Zhejiang China (Mainland)	Brand Name:	HONOR PACK	Weight:	Depends on the machine model
Dimension(LWH):	Depends on the machine model	Certification:	ISO	After-sales Service Provided:	No overseas service provided
Function:	Full Automatic Packaging	Machine status:	Brand New	Working Process:	Form Fill And Seal
Packing Type:	Plastic Bag	Quality:	Prime,high quality	Certificate:	CE,SGS,ISO9001
Life:	Durable,long life	Usage:	Packing many things	Model:	VFZ420/540/730
Other:	Save Labor Cost
