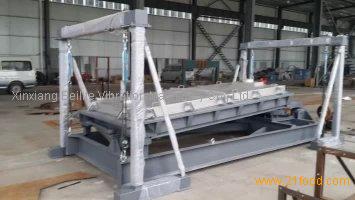

Square Fine Gyratory Sieve Machine (Square Tumbler Screen Machine)
FOB Price:Price can be negotiated
Update Time:2024-02-16
Product Description

 Introduction:

    To pursue sieving accuracy simply will sacrifice the production, and pursuing big production will drop the accuracy. Square precision gyratory screen is high-precision and high-performance large production efficient device which specially designed for the above problems. It is widely used for the industries such as chemical, metallurgy, non-ferrous metal, ferrous metal, food and abrasive material etc.

Features:
   1. High efficiency, smart design, fit for any kind of powders and serosity.
   2. Easy screen replacement which only costs 3-5 minutes to finish, easy operating and cleaning.
   3. No-block sieving mesh, no powder flying, and the minimum sieving size is 500M or 0.028mm.
   4. Impurity and bigger particles can be automatically discharged.
   5. Working constantly.
   6. Specially designed net frame and long service life for sieving nets.
   7. Small volume and easy to be moved.

Application:
       Chemical industry: chemical fertilizer, resin, melamine, soda ash and so on.
        Food: Starch, salt, granulated suger, milk powder and so on.
        Metallurgy: ferrous metal, non-ferrous metal, magnetic material and so on.


Technical Parameters:

Layer

Model

Screen Surface Size

Width*Length (mm)

Screen Mesh Size

Motor

Weight

(kg)

Power (kw)

Rotation Speed (rpm)

1

VBJ800*1500

800*1500

10mm~325 mesh

2.2

960

680

VBJ1000*2100

1000*2100

2.2

960

740

VBJ1000*3000

1000*3000

2.2

960

980

VBJ1500*2100

1500*2500

3.7

960

1375

VBJ1500*3000

1500*3000

5.5

1450

1880

VBJ1800*3600

1800*3600

7.5

960

3260

VBJ2000*4600

2000*4600

5.5

960

5150

2

2VBJ1000*1400

1000*1400

10mm~325 mesh

2.2

960

990

2VBJ1000*2100

1000*2100

2.2

960

1050

2VBJ1000*3000

1000*3000

3.7

1450

1840

2VBJ1500*2500

1500*2500

3.7

1450

2220

2VBJ1500*3000

1500*3000

5.5

960

2780

2VBJ1800*3600

1800*3600

7.5

960

3580

2VBJ2000*4600

2000*4600

7.5

960

6720

3

3VBJ1000*2100

1000*2100

10mm~325 mesh

3.7

1450

1840

3VBJ1000*3000

1000*3000

3.7

1450

2150

3VBJ1500*3000

1500*3000

5.5

960

3200

4

4VBJ800*1500

800*1500

10mm~325 mesh

3.7

1450

1790

4VBJ1000*2100

1000*2100

5.5

960

2700

4VBJ1000*3000

1000*3000

5.5

960

3060

4VBJ1500*3000

1500*3000

7.5

960

5960
