SS Series Threee Column Top Discharging Centrifuges Water Separator

Features

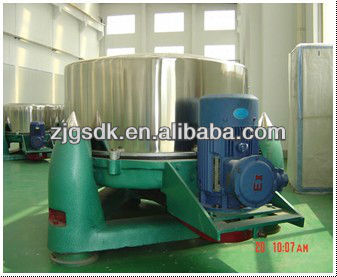

SS Model Tripod Centrifugal Machine is top unloading, intermittent operation filtering type. It is suitable for separating the milk liquid which contains 0.01 mm sokid grains. The solid grains can be grain, crystal or fiber state. The machine is also used in dehydrating of materials such as yarn, textile and others. The series centrifugal machined have characteristics, such as it has simple structure, and convenient operation, each operation program can be adjusted at will, the filtered slag can be washed completely, the solid grain can not be broken easily, it has strong application and etc. It is widely used in chemical, light-industry, food, pharmacy, textile, metallurgy and other trades.

Structures & Principles

The motor drives the tumbler to rotate at high speed through clutch, The materials are fed into the tumbler through the top port. They are thrown to the wall under the function of centrifugal force, The liquid is discharged from the filtering holes through the filtering cloth. The solid materials are remained into the tumbler .After the machine is stopped, the solid materials are unloaded by man.

Ordering notes

With different separation requirements, we design pa11erns for the corresponding customer choice, customer orders, can be made to confirm the following :
Material: the material of the section touching the separated materials can have kinds of stainless steel, titanium steel, carbon steel, line with rubber, line with plastic and others.
Driving Mode: General asynchronous motors, flameproof electrical or asynchronous frequency explosion. Electrical Installation B3, B5 two species.
Making: Braking or bulging brake

Basics: a base and without casting base (equipped with a shock absorber)

Technical Parameters

.
