Stainless Steel 304 Rotary Pouch Vacuum Packaging Machine For Egg/Small Sausage/Meat/Pickle,China Xiaokang price supplier

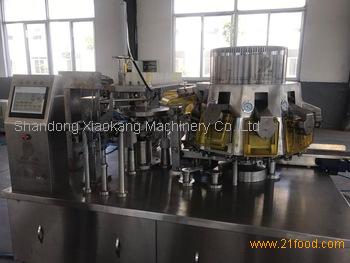

Stainless Steel 304 Rotary Pouch Vacuum Packaging Machine For Egg/Small Sausage/Meat/Pickle

FOB Price:Price can be negotiated

Production Capacity:100pcs/month

Payment Terms: FOB Qingdao

Update Time:2018-07-18

Contact Supplier

Product Description

Automatic rotary pouch packing machine for dates

Stainless Steel 304 Rotary Pouch Vacuum Packaging Machine For Egg/Small Sausage/Meat/Pickle

FEATURES:

1. Filling and vacuumizing sections are divided into 2 rotary system to allow for easier product filling and higher vacuumizing at high speed;

2. Pouch recycle system minimizes loss of pouch;

3. Advanced touch panel can be memorized max. 100 product data;

4. Machine stops automatically when seal ribbon is burnt out;

SPECIFICATIONS

1. Model: XK-120Z

2. Machine speed: 35-60 bags/min (depend on the bag size)

3. Available pouch size : (W)70-120mmx(L)<180mm

4. Machine proper: 3 ph, AC 380V 50Hz 13kW

5. Vacuum pump for 1^st vacuum: Japan oillesss

6. Vacuum pump for 2^nd vacuum: BUSCH 111

7. Machine dimensions: 2300X1560X1800mm

8. Machine weight: approx.. 2100kgs

l Optional item: liquid filling device, hot printer for date coding, pusher device, shaping device, etc.

l Compressed air supply is required

l Step-down transformer is available to meet electrical utilities on different country or plant

No.	components	description	photos
1	weighter	8 heads weighter, the weight setting and controlling the speed is easy, fast and accurate.
2	Filling rotary system	1. Stainless steel 304, thickness 4mm 2. Imported bearings
3	Vacuum rotary system	1. The vacuum chamber is made of resin. 2. The inside of the vacuum chamber can be checked through a transparent part.
4	Transmission system	2 rotary system running constantly controlled by one inverter motor; Cam and gear material is 20CrMnTi, to ensure the accuracy of equipment operation and service life
5	Controlling system	PLC, Touch screen, cylinder, controlling valve and frequency converter (Siemens brand, Made in Germany)
6	Pneumatic components	Imported from Siemens, Germany SMC, Japan
7	Safety detection system	Components imported from Schneider, France
8	Vacuum pump	Vacuum pump imported from Busch, Germany; no oil pump imported from Japan; no pollution
9	Sealing sliding valve	Good sealing<5mbr, no need to add sealant, service life more than 10 years.

2. Delivery time: 60days

3. Payment terms: TT 30% in advance, balance before delivery

4. Quotation valid time: 1 week.

Other Products

DZ-600 Double Chamber Vacuum Packaging Machine

DLZ-420 Automatic Continuous Stretch-packaging Machine

Stainless Steel 304 Skin Type Vacuum Packaging Machine

Stainless Steel 304 Belt Type Vacuum Packaging Machine

Company Profile

Name: Shandong Xiaokang Machinery Co.,Ltd

Main Products: "Single/Double Chamber Vacuum Packaging Machine," "Belt Type Vacuum Packaging Machine," "Continuous Stretch-film Vacuum Packaging Machine," "Skin Type Vacuum Packaging Machine,"

Business Type: Manufacture

Total Employees: 100 ~ 500

Established Year: 1995

Total Annual Revenue: US$2.5 Million - US$5 Million

Main Markets: North America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,

Address: Room 2911, Building B, No 328, Dunhua Road, Shibei District, Qingdao

Shandong Xiaokang Machinery is the wholly foreign-owned enterprise which produce vacuum packaging machine since 1995.
We developed the full-automatic continuous stretch-packaging machine in 2000 and rewrote the history of domestic imports in China.
In 2005, we were awarded the first prize in vacuum packaging machine industry by the Chinese Meat Association.
In 2007, we expanded a new xxxx square meter factory.
We added 2 new pieces of steel cutting stream-lined line in 2010.
In 2012, we finished our fist patent application.
In 2015, we started to develop the rotary pouch vacuum packaging machine.
