BETTER Small Pasteurizer Plant For Milk/Juice

Introduction of  small pasteurizer plant

This  small pasteurizer plant  is widely used for determining and updating of the original recipe about raw materials of Milk, juice, tea drinks, milk drinks, ketchup, condiments, beer, butter, ice cream, egg products, powder and other products, screening product taste, color evaluation, stabilizer / emulsifier applications, new R & D and small batch production using.

This  small pasteurizer plant  is ideal for handling capacity from 300 to 1500 kg production fluid materials used for Sterilization. This small pasteurizer plant integrates heat pasteurization, sterilization, cooling, hot filling into one. Automatic control, touch screen dynamic display system. This  small pasteurizer plant  is the ideal equipment for small school and community pasteurized milk enterprises.

This small pasteurizer plant  standard inlet steam proportion valve, high precision temperature of sterilization, this is very suitable for high quality requirements of the disinfection product and peri-urban large-scale food production enterprises.

Features of  small pasteurizer plant

This  small pasteurizer plant  includes three parts: regeneration, heating and cooling , the sheet and tubing type of sterilization can be combined in various forms, And with two separate heating and cooling section to line homogenizer. Product temperature can reach 142 °C. All parts in contact with the product of this small pasteurizer plant  are made of 316 stainless steel, Plate gaskets and seals made of food-grade Viton, product pipelines connecting with DIN sanitary fittings. In the display output, the production casing type small pasteurizer plant  configuration touch screen, PLC program control, it’s can be dynamically reflect of the product temperature, flow and other parameters, the gauge and digital sensor can be selected according to user requirements, Therefore, the small pasteurizer plant  is able to adapt to a variety of materials for industrial production.

Parameters of  small pasteurizer plant

1. Occupies only 5 to 6 m2

2. Minimum feeding amount 50L

3. Material flow: 300-1500L / H (depending on model)

4. Highest degree of sterilization temperature :130-142 °C

5. Temperature control ±1 °C

6. Sterilization time: customers make their own determination

7. Maximum particle material: 8mm

8. Heating device: external steam

9. Sterilization methods: sterilization casing

10. Equipment cleaning: standard power pump

11. Materials temporary storage tank: 30 ~ 50 liters (depending on model)

12. Equipment Material: high quality SUS304

Picture of  small pasteurizer plant

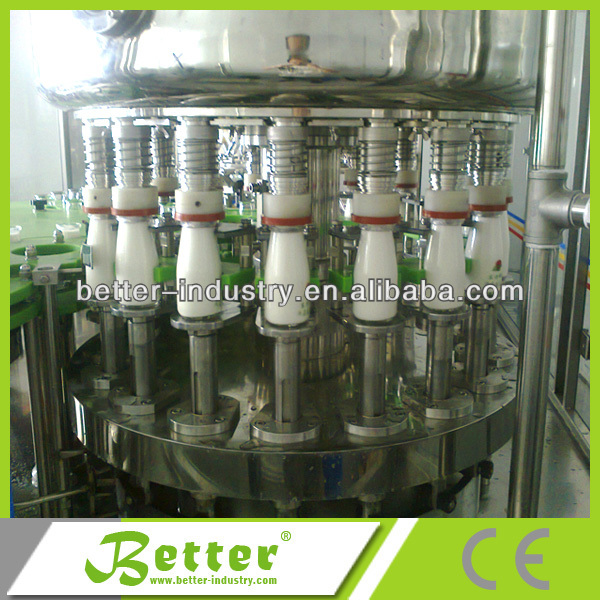

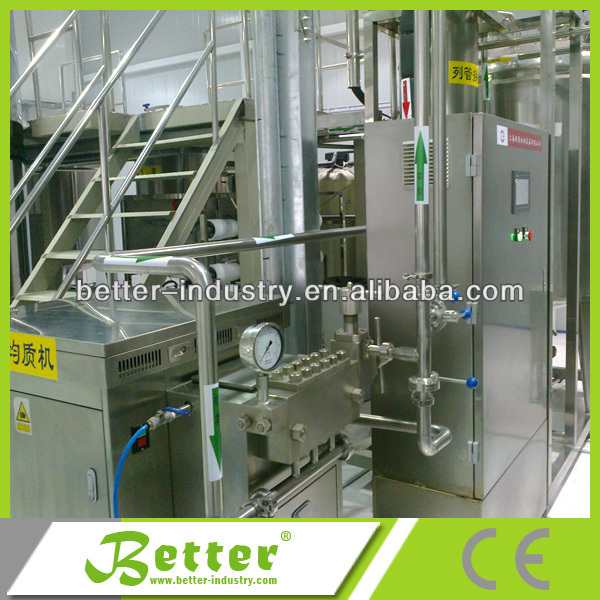

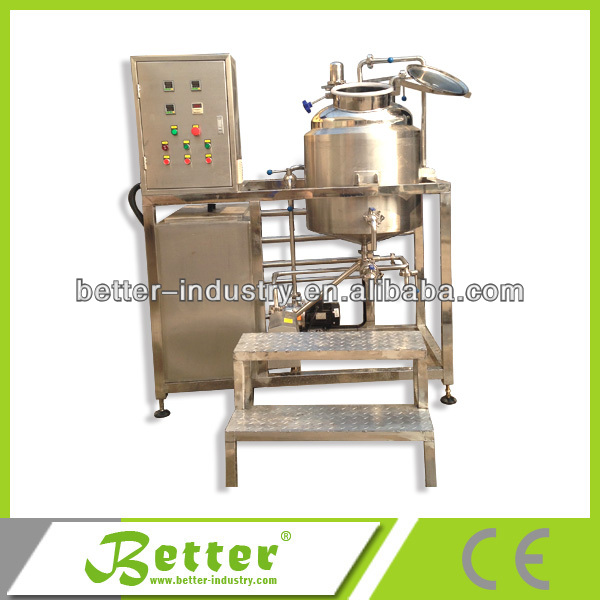

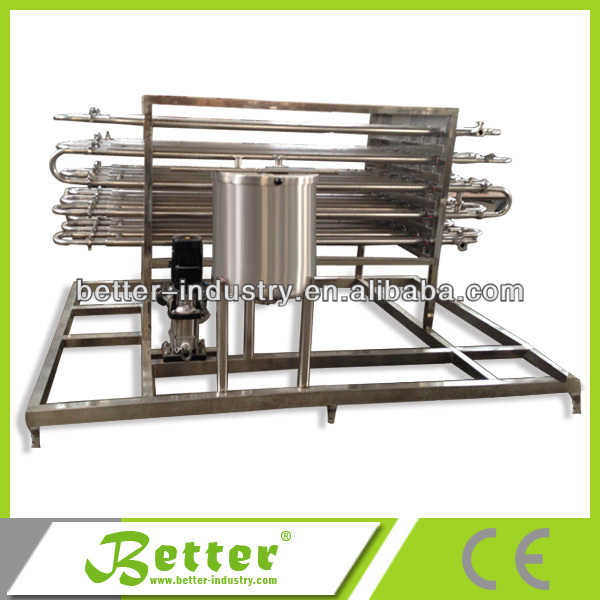

small pasteurizer plant

small pasteurizer plant

small pasteurizer plant

small pasteurizer plant

small pasteurizer plant

small pasteurizer plant  final product

Thanks for interesting in our  small pasteurizer plant , more details of small pasteurizer plant  please contact with us freely.
