Application:
It is suitable for weighing candy, seeds, jelly, pet foods, puffy foods, pistachio, peanuts, nuts, raisins, dried fruits, frozen foods, snack foods, hardwares, meatballs etc.
Application bag tpye and film material
Bag type: Pillow bag, Gusset bag, Side seal bag.
Film type:A variety of laminated films, single-layer PE film, film thickness
range: 0.04mm~0.15mm.
Features:
1. High-precision and high resolution loadcell;
2. 1.6L hoppers can be widely used for a variety of common standard materials and standard weights.

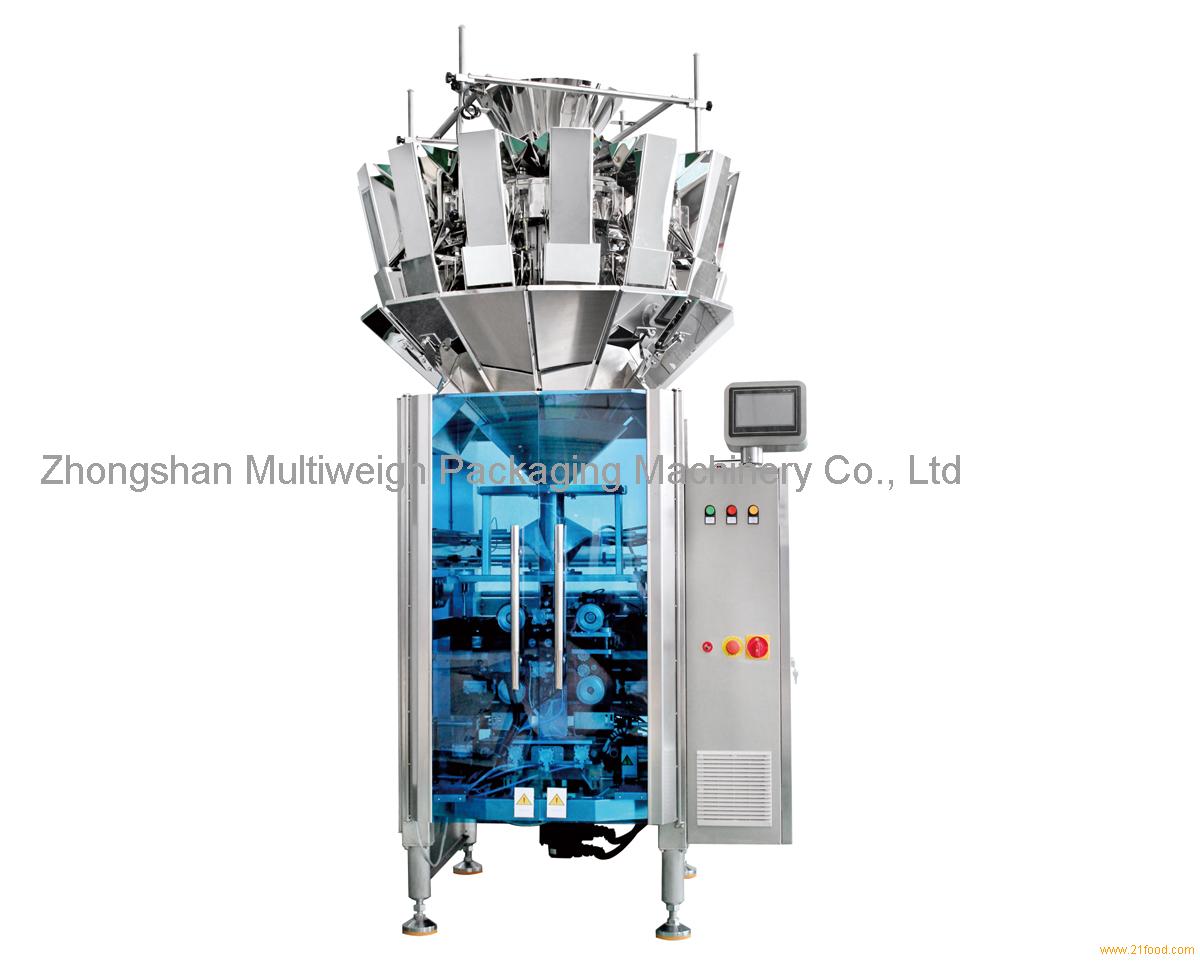

3. Combined multihead weigher and vertical packaging machine, fully automatic weighing, filling, date printing, packaging and outputting.
4. Automatic fault alarm system ensures safe and reliable operation.
5. Integrated control panel, man-machine interface touch screen, easy operation and maintenance.
6. Equipped with servo motor & film pulling system and optical tracking devices to ensure accurate bag length and color positioning. Horizontal sealing by servo motor with high speed and high efficiency.
7. Cheap, economical, cost-effective and with low maintenance costs.
8. Low height, small sizes for a variety of standard workshop and small places.
Optional devices:
Gusset device, Nitrogen charging device, chain-bag device, Vibrating device, Punching device, customerized Sealing , Exhaust/Inflatable devices, Easy tear device, PE film sealing, Bag support device, Anti-Static electricity device, vacuum device, Horizontal sealer cooling, Film rectify deviation.
Model |
|
JW-MC461016
|
JW-HC461416
|
Identify Code
|
JW-MC461016-1
|
JW-HC461416-1
|
Heads No.
|
10
|
14
|
Weighing Range
|
10-1000g
|
10-1500g
|
Accuracy
|
X(0.5)
|
X(0.5)
|
Max Speed
|
70P/M
|
100P/M
|
Hopper Volume
|
1600ml
|
1600ml
|
Film Width
|
160-460mm
|
160-460mm
|
Bag Size
|
60-300(L)*70-220(W)
|
60-300(L)*70-220(W)
|
Packing Speed
|
60bags/min
|
15-100bags/min
|
Film Pulling driven by
|
Servo Motor
|
Servo Motor
|
Horizontal Sealing driven by
|
Air Cylinder
|
Servo Motor
|
Power Requirement
|
220V/4.6KW/50/60HZ
|
220V/5.6KW/50/60HZ
|
Gas Consumption
|
0.6m3/min
|
0.2m3/min
|
Machine Size
|
1645(L)*1140(W)*2509(H)mm
|
1800(L)*1140(W)*2659(H)mm
|
Machine Weight
|
750kg
|
800kg
|
Guangdong Kenwei Intellectualized Machinery Co.,Ltd.is one of the leading companies in the multihead weigher field in the world.As a leading multihead weigher company, we try our best to offer new quality weighing machine, Vertical form fill seal machine, Linear weigher, Check weigher, Automatic weigher, Combination weigher, linear scale, VFFS and the packaging system according to our customers’ requirement, and successfully bring our customers with large profit and potential market
more
