Sugar granulating machine

FOB Price:Price can be negotiated

Production Capacity:10 Set/Sets per Month

Payment Terms: US $5,000 - 50,000 / Set

Update Time:2021-08-19

Contact Supplier

Product Description

Multi-function such as granulatingaapelletingaacoating in one machine.
high efficiency,large capacity

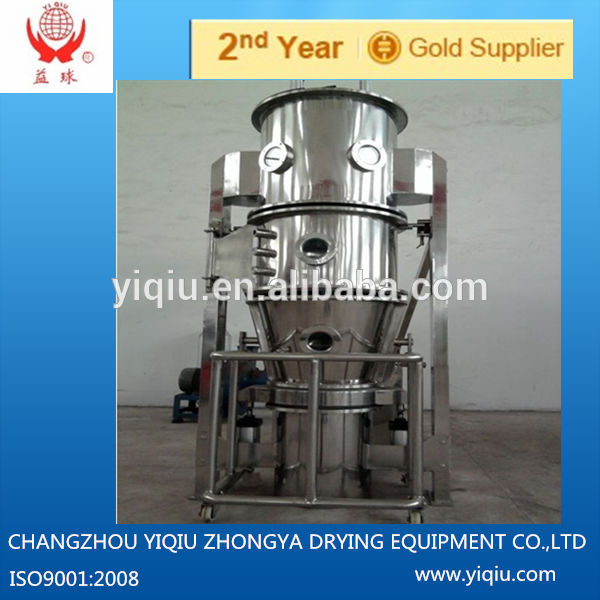

Sugar granulating machine

Product Description

FLP Granulator/Coater/Pelleter is multi-function equipment integrated spray drying-granulating-centrifugal spray coating-fluid coating-drying in one body. The machine combines various process operations. Particularly it is suitable for granulating, pelleting and coating of various varieties in pharmaceutiCal industry, foodstuff industtry and chemical industry.etc.

Features

Multi-function such as granulating , pelleting , coating in one machine.
Powder material granulating.
Powder material coating.
Powder material pelleting.
Chinese medicine spray drying , granulating and coating.
Make 1 0-30 meshes big granule.
Film coating of Powder , granules and pellets , entericrelease . slow and controI reIease coating .

Detailed Images

Technical parameter

Item Model ( LBF )
Name		Unit	10	15		20	30	45	60		90	120
Diameter of container		mm	700	800		900	1000	1100	1200		1400	1500
Production capacity		kg/batch	2.5-10	3-15		5-20	7.5-30	10-45	15-60		20-90	30-120
Power of fan		kw	5.5	7.5		7.5	7.5	11	11		15	18.5
Steam Compressed air	Pressure	Mpa	0.4-0.6
	Consumption	kg/h	35	42	47		60	140	160	180			240
	Pressure	Mpa	0.6
	Consumption	m3/min	0.6	0.6	0.6		0.9	0.9	1.1		1.3			1.5
Noise		dB	Treatment of air volume not exceed 75DB
Overall dimension of main machine		H1(mm)	2790	3350	3650		3720	3720	3850		3950			4190
		H2(mm)	340	490		540	590	640	690		740	790
		H3(mm)	2570	3130		3430	3500	3500	3630		3720	3975
		φ1(mm)	700	1000		1000	1200	1300	1400		1500	1600
		φ2(mm)	250	250		250	280	280	280		280	315
		L(mm)	1250	1400		1450	1500	1550	1600		1650	1700
		B1(mm)	1160	1460		1560	1600	1760	1860		1960	2000
		B2(mm)	1860	2460		2660	2860	3060	3260		3460	3660
Remarks:Some of the parameters are for reference only.According to the condition of material,our factory has the right to change without notice.

Company Information

Changzhou Yiqiu Zhongya Drying Equipment Factory is located at Jiaoxi Town, East Suburb of Changzhou, a key enterprise of drying industry in China and also specially-designated productive unit of National pharmaceutical machinery, chemical equipment, foodstuff machinery. For many years the factory persists in the principle,i.e. with science and technology as forerunner and with market as guide and with raising the productive benefit of customers as tenet. Meanwhile the factory has united with several universities and colleges and institutes and carried out technical cooperation in the fields of drying equipment, pharmaceutical machinery, chemical equipment, foodstuff machinery and so on. The situation of powerful-powerful combination has been formed.

Machine Type:	Granulator	Condition:	New	Product Type:	Fertilizer
Place of Origin:	Jiangsu China (Mainland)	Brand Name:	YIQIU ZHONGYA	Model Number:	FLP
Voltage:	220-440V	Power(W):	5.5-18.5KW	Weight:	100-1000KG
Certification:	ISO9001:2008	After-sales Service Provided:	Engineers available to service machinery overseas	Productive capacity:	2.5-120kg/batch

Company Profile

Name: Changzhou Yiqiu Zhongya Drying Equipment Co., Ltd.

Main Products: Dryer series,crushing series,mixing equipment,granulation equipment,conveying series

Business Type: Manufacturer, Trading Company

Total Employees: 101 - 200 People

Established Year: 1996

Main Markets: Africa, South Asia, Southeast Asia, South America, Central America

Address: Liangzhuang Village, Jiaoxi Town, Wujin District

Changzhou Yiqiu Zhongya Drying Equipment Co., Ltd. is located in Jiaoxi Town, East Suburb of Changzhou. We are a key enterprise in the drying industry in China and also a specially-designated production unit of national pharmaceutical machinery, chemical equipment and foodstuff machinery.

For many years our factory has persisted in the principle of "Science and Technology as Forerunner, Market as Guider and Benefit of Customers as Core". Meanwhile our factory cooperates with several universities, colleges and institutes in the fields of drying equipment, pharmaceutical machinery, chemical equipment, foodstuff machinery and so on. The powerful-powerful combination has been achieved.

Drying equipment, pharmaceutical machinery, chemical equipment, foodstuff machinery and so on under "Yiqiu" Brand manufactured by our factory have been appreciated by customers for superior quality, favorable prices and first-rate after-sales service.

Our factory has model machines all the year round for customers to try. more
