Surpise!!! linear vibrating powder sieve equipment with double motors from Xinxing YongQing,China YingQing price supplier

  Surpise!!! linear vibrating powder sieve equipment with double motors from Xinxing YongQing

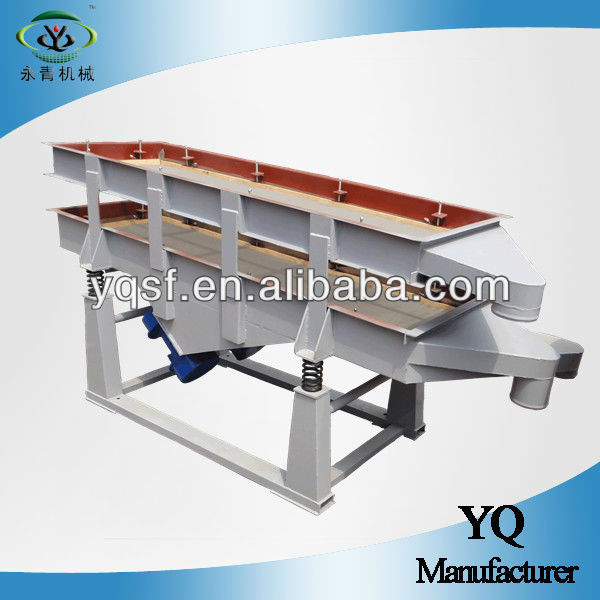

Look at the equipment overall appearance,you can find:

1,This machine is two layers and each layer has a outlet. The outlet's can be adjusted to any direction as you required.

2,It's all carbon steel design,painted white .(Any clour is available)

3.It's not fully tightness design,this is different from other ordinary vibrating   screens.

               It is good in a way !!! because it's converient to feed materials and you can see the materials running tracks clearly.

            But it's not good in another way,why? Power flying,very heavy float,flying because it has no cover.

           Think clearly,do you need a cover?if you required,we do.

4,You may see the mesh,like this:

  screen mesh size: from 2mu to 325mu(0.5-0.002inch),suitable for all kinds of            materials,you can change according to your needs.

  Do you see the white bounce ball under the mesh???what's the founction???

a, There are many bounce balls under mesh,you know if the mesh is very fine,it's easy to be blocked by materials,but bonuce balls can say good bye to this,because when the machine start to work,balls jumping sharply and collide the mesh sharped,so materials can thought the fine mesh easily.

b, If the screen hole is big enough,there isn't any need to use bounce ball.

5,You can also see small parts of two motors,right???

Two motors are the heart of the machine's working.

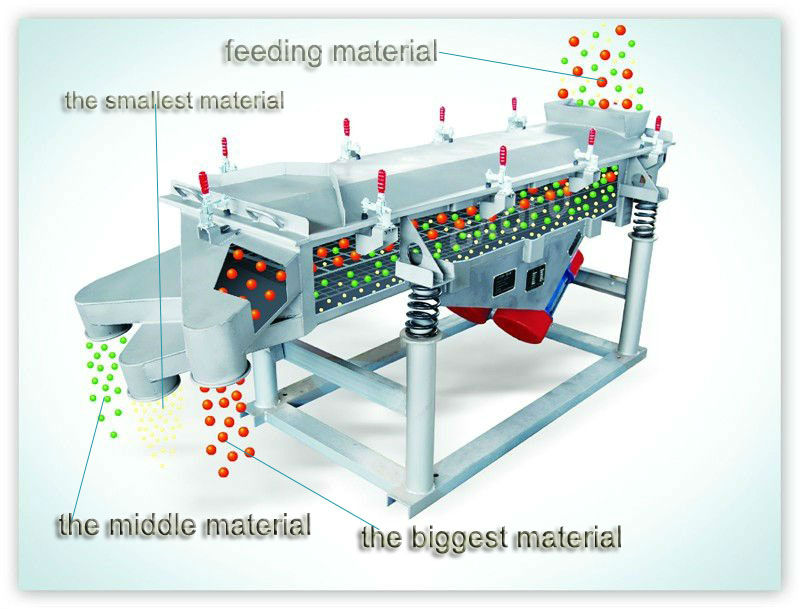

when this machine work , two motors make synchronous counter rotation that make vibration generator produces reverse vibration force,forced the screen body drive screen do longitudinal motion, periodically make the material thrown forward a range ,so complete material screening operation.  Look,its screening effect is like this:

 6,You may also see the springs,like this:

  The springs are called" Damper spring", their function is   to prevent vibration to the ground,at the same time support the full weight of screen box,spring must be vertical with the ground when installing.

  You can't see the set machine's application.If you required,we can send you testing video about the how the  machine works.

  Technical Index:

  Packing details:

Our company not only sell this machine,but also sell various machines,look,our main products are showed in the following pictures:

  Dear friend,many details are not explained clearly in this page,welcome to contact lynn to get more...

What is your desire? we design.
