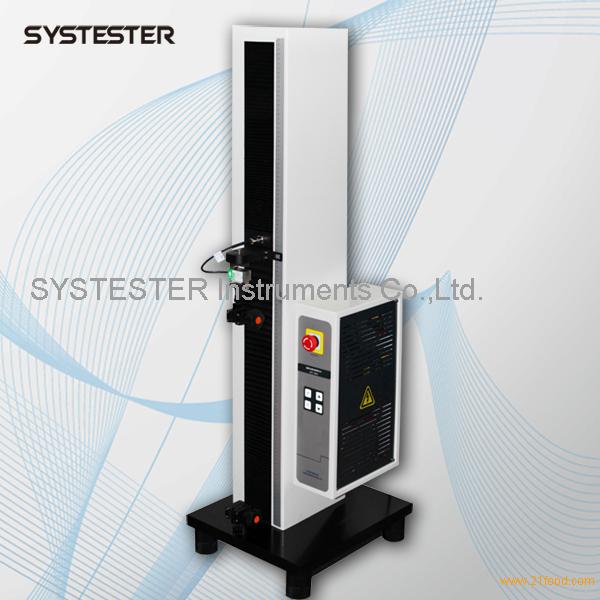

Applies to plastic films, sheets, rubber, laminated films, extrusion films, foils, paper, medical patches, release paper, non-woven fabrics etc testing of various items, such as tensile, break force, elastic modulus, elongation, seal strength, T-style/90/180 peeling strength, widely used in food & pharmaceutical industries, quality inspection departments as well as research and development institutions.
Main feature
1. Controlled by computer.
2. High performance servo drive.
3. Bi-direction test.
4. Highly accurate load cell.
5. Selectable load range: 500N, 1000N, 2000N, 3000N, 5000N.
7. Software interface is friendly, easy to operate.
8. ISO, ASTM standards test available, Non-standard test available.
9. Various analysis functions.
10. Overload, limit protection.
11. Test speed can be preset freely through software.
Technical indexes
| Load cell range
|
5N,50N,100N,250N,500N,1000N,1500N(personal customization available)
|
| Accuracy
|
1
|
| Displacement resolution
|
0.001mm
|
| Test speed
|
0.01~1000mm/min
|
| Travel distance
|
1000mm
|
| Sample width
|
38mm customization
|
| Sample thickness
|
8mm customization
|
| Dimension
|
380mm(L) *450mm(B) * 1309mm(H)
|
| Power supply
|
AC 110V 60Hz
|
| Net wight
|
88KG
|
Standards
ASTM D882, ASTM D828, ASTM E4, ASTM D1938, ASTM D3330, ASTM F88, ASTM F904, ISO 37, GB1040, GB8808, GB4805, GB7753, GB 7754, GB 453, GB/T17200, GB/T16578, GB/T 7122, GB/T 2790, GB/T 2791, GB/T 2792, JIS P8113, QB/T2358, QB/T 1130
SYSTESTER is professional provider of integrated package testing solutions and instruments of food and pharmaceutical industries, dedicates to cutting-edge technology research and development. If you any unclear questions, pls do not hesitate contact us.
Relative product:
SYSTESTER micro-peeling tester, Automatic coefficient of friction tester, Thickness tester SYSTESTER China etc.
SYSTESTER is a professional provider of integrated package testing solutions and instruments of food and pharmaceutical industries, dedicates to cutting-edge technology research and development. SYSTESTER assists you to solve all flexible packaging problems and makes production profit maximization depending on the creative thought and technical abilities as well as successful experience accumulation over 20 years. SYSTESTER is a modern company with family kind culture, passion, innovation concept and scientific management.
SYSTESTER always make it as our strategic mission, that is “Your goal is just our goal”.
