T-JET, Direct water fill system (TW150V),Korea T-JET price supplier

T-JET, Model. TW150V is direct water fill system to stably deliver water to the water reservoir of the coffee machines regardless of the strength of the water pressure when home & commercial coffee machines are connected directly to a water line.

It is especially designed to work with coffee machines, which have water reservoir such as fully automatic espresso machines, instant coffee machines etc.

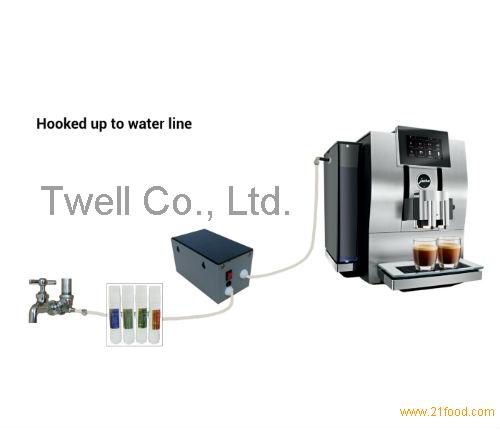

It allows you to hook your coffee machine directly into your home or office's water supply in order to automatically refill the water reservoir on your machine.

When T-JET is installed with an automatic espresso machine, instant coffee machine etc. having water reservoir and is hooked up directly to a water line, the float switch will be activated and the solenoid valve will open to deliver water to the water reservoir of a machine.

Float switch makes the solenoid valve open or close by sensing water level in water reservoir.

Features

- Compact size for easy mounting
- Easy Installation
- Solenoid valve

* High pressure valve (pilot type)
* 2 valves equipped to enhance safety
- Stable water supply at strong water pressure

- Easy and immediate replacement of the parts

* float switch assembly

* discharge tube / fitting

- Operating mechanism: valve open/close by sensing water level

Product Specifications

T-jet includes the following:

Model No.:   TW150V - 100H for fully automatic espresso machine (float switch side mounted)

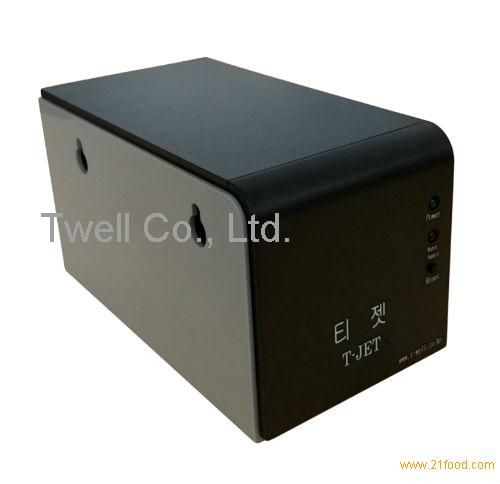

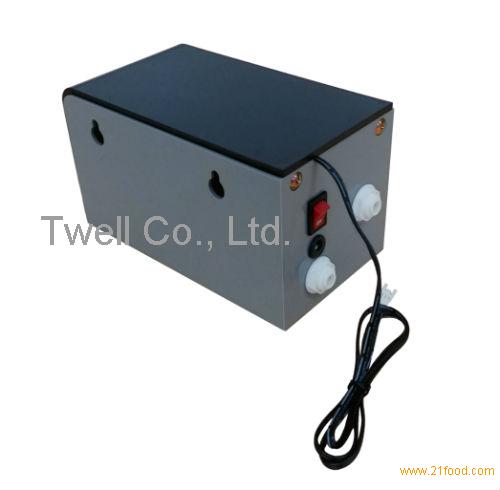

A. Control box with on/off rocker switch
B. Float switch assembly
C. AC/DC power adapter
D. 3M of 1/4" OD discharge tube
E. Installation & fitting kit : stem elbow(1/4"tube - 1/4"stem), silicon tube, nylon nut(M12), sealing washer, cable tie, cable tie mount

Application

Model No.:   TW150V - 200H for fully automatic espresso machine (float switch top mounted)

A. Control box with on/off rocker switch
B. Float switch
C. AC/DC power adapter
D. 3M of 1/4" OD discharge tube
E. Installation & fitting kit : rigid elbow(3/8"NPTF - 1/4"tube), nylon nut(M14) , nylon nut(M12), cable tie, cable tie mount

Application

Model No.:   TW150V - 300H for instant coffee machine

A. Control box with on/off rocker switch
B. Float switch
C. AC/DC power adapter
D. 3M of 1/4" OD discharge tube
E. Installation & fitting kit : water tank cover, rigid elbow(3/8"NPTF - 1/4"tube), nylon nut(M12), cable tie, cable tie mount

Application
