Application

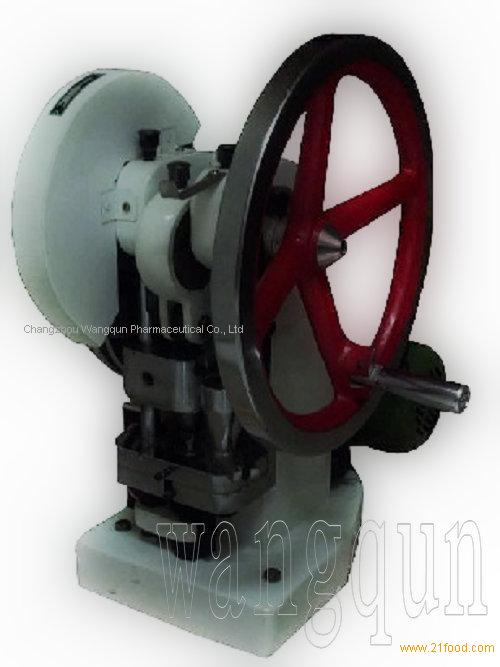

a The machine is a small desk-top tablet press, it can press various tablets continuously by means of manual operation or powered by a motor.
a With simple structure, convenient operation, the machine has high degree of automation . It can be used for small batch or laboratory prodution of a variety of medical tablets, sugar tablets, calcium tablets and so on.
a The machine can press varieties of small particles and coarse power into round or irregular tablets. It is not suitable to press large granular solids, wet power or too fine power.
Technical Parameters
| Model
|
Unit
|
TDP-1.5
|
TDP-5
|
| Max.Pressure
|
KN
|
15
|
50
|
| Max.Dia.of Tablet
|
mm
|
14
|
18
|
| Max.Depth of fill
|
mm
|
11
|
15
|
| Dia. of up and down punch pole
|
mm
|
10
|
10
|
| Dia. of Middle Mould
|
mm
|
28
|
33
|
| Production Capacity
|
Pc/h
|
3600
|
2000-3600
|
| Main Motor Power
|
kw
|
220v 0.55
|
220v 0.75
|
| Net Weight
|
kg
|
85
|
142
|
| Overall Size(L*W*H)
|
mm
|
540*450*640
|
600*500*700
|
Changzhou WangQun Pharmaceutical Machine Co.,Ltd is founded in 1984,meanwhile our company earlier passed the ISO9001: 2000 international quality management system certification standards in the same industry.The main products: ZP series Rotary type (hydraulic type) tablet press machine, crushing equipment, drying equipment, screening equipment, mixing equipment, YK series of particle machine and charging equipment and all kinds of molds, accessories. Products are widely used in pharmaceutical, electronics, chemical and food and so on. Products are best-sold in
