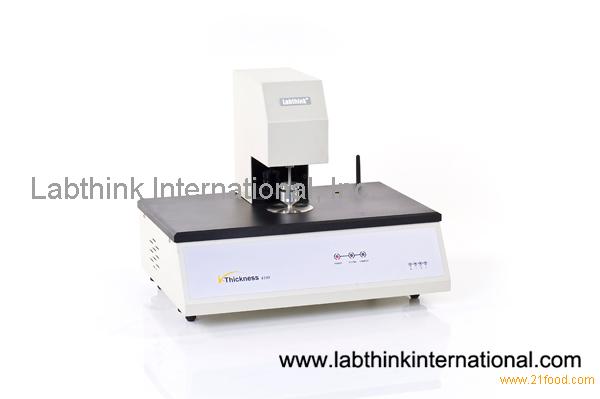

Thickness Tester for plastic films & paper,China Labthink price supplier

Thickness Tester for plastic films & paper   is designed to measure the thickness of plastic film, sheet, diaphragm, paper, foils, silicon wafer, coatings and various materials precisely within the specified test range.

 Thickness Tester for plastic films & paper   can be used with our advanced Online Data Management System for packaging testing, which comes with two versions to meet distinct needs of our clients:The Cloud Version & The Intranet Version

Features:
1.Mechanical contact measurement with an automatic presser foot
2.Standard contact area and various testing pressures to meet distinct requirements
3.Support both manual and automatic testing modes
4.The system institutionally displays the maximum, minimum, and average thickness as well as standard deviation for each test
5.Embedded computer control system provides safer and more reliable data management as well as test operation.
6.  Thickness Tester for plastic films & paper  can be easily operated with a mouse, a keyboard, and a monitor, without requiring a PC.

Application:
Thickness Tester for plastic films & paper  is designed to test the following materials:
1.Films, Sheets, and Diaphragms
2.Paper and Paper Board
3.Foils and Silicon Wafers
4.Metal Sheets
5.Textiles

Technical Specification:
Test Range:0~2 mm  (Standard)
           0~6 mm,12 mm  (Optional)
Resolution:0.1 μm
Test Pressure:17.5±1 KPa (Film); 50±1 KPa (Paper)

Thickness Tester for plastic films & paper  conforms to the following standards:ASTM D374, ASTM D1777, ISO 4593, ISO 534, ISO 3034, GB/T 6672, GB/T 451.3, GB/T 6547, TAPPI T411, JIS K6250, JIS K6783, JIS Z1702, BS 3983, BS 4817
